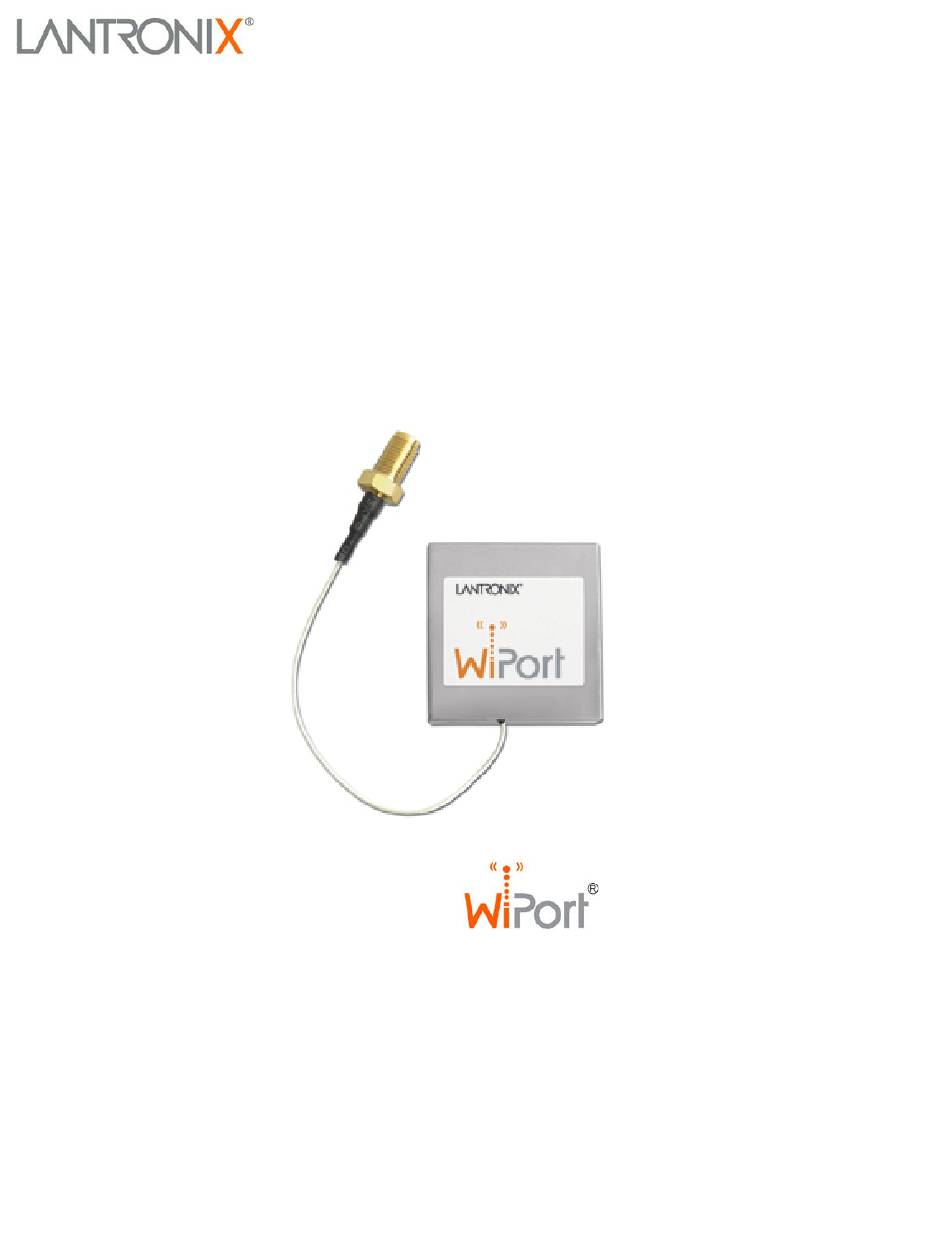

- Page 1 WiPort Evaluation Kit Quick Start Guide Part Number 900-340 Revision D March 2013...
- Page 2 Thank you for your decision to purchase the WiPort Evaluation Kit from Lantronix. Use this Quick Start as a handy reference for the initial setup of the WiPort. It takes you step by step through hardware setup and the initial configuration.
- Page 3 If the network is not DHCP-enabled or a static IP address is preferred, there are several options for assigning an IP to your unit. We recommend that you connect the WiPort to the network and assign the IP address using DeviceInstaller software, which is available for download from the Lantronix website.
- Page 4 In the event that your laptop or desktop is not equipped with a wireless card, begin the initial configuration of the WiPort using the serial method. After configuring the WiPort for wireless network access, disconnect the desktop’s serial connection to the device.
- Page 5 Insert it into the slot on the Universal Power Supply; then plug the power supply into an outlet. 4. Connect the Universal Power Supply to the WiPort Evaluation Board. 5. The WiPort is ready for configuration using Serial Mode. Refer to the WiPort User Guide for information on configuring the WiPort using this method.
- Page 6 The unit is DHCP enabled as the default. Change the IP address if you do not want the network to automatically assign an IP address to the WiPort. 1. Click StartPrograms LantronixDeviceInstallerDeviceInstaller. If your PC has more than one network adapter, a message displays.
- Page 7 6. Click the Assign pushbutton and wait several seconds until a confirmation message displays. Click Finish. 7. Select the WiPort from the main window list and click ToolsPing. The results display in the Status area. Click the Clear Status button to clear the window to ping the device again.
- Page 8 Configure In this quick start, we briefly describe how to configure the WiPort using Web-Manager, Lantronix’s browser-based configuration tool. For detailed information on Web-Manager configuration and on other methods, please see the WiPort User Guide. 1. Select the unit and click the Web icon .
