Technical Specification - Stuart Turner Stuart SPU 130 Mini Installation, Operation & Maintenance Instructions Manual

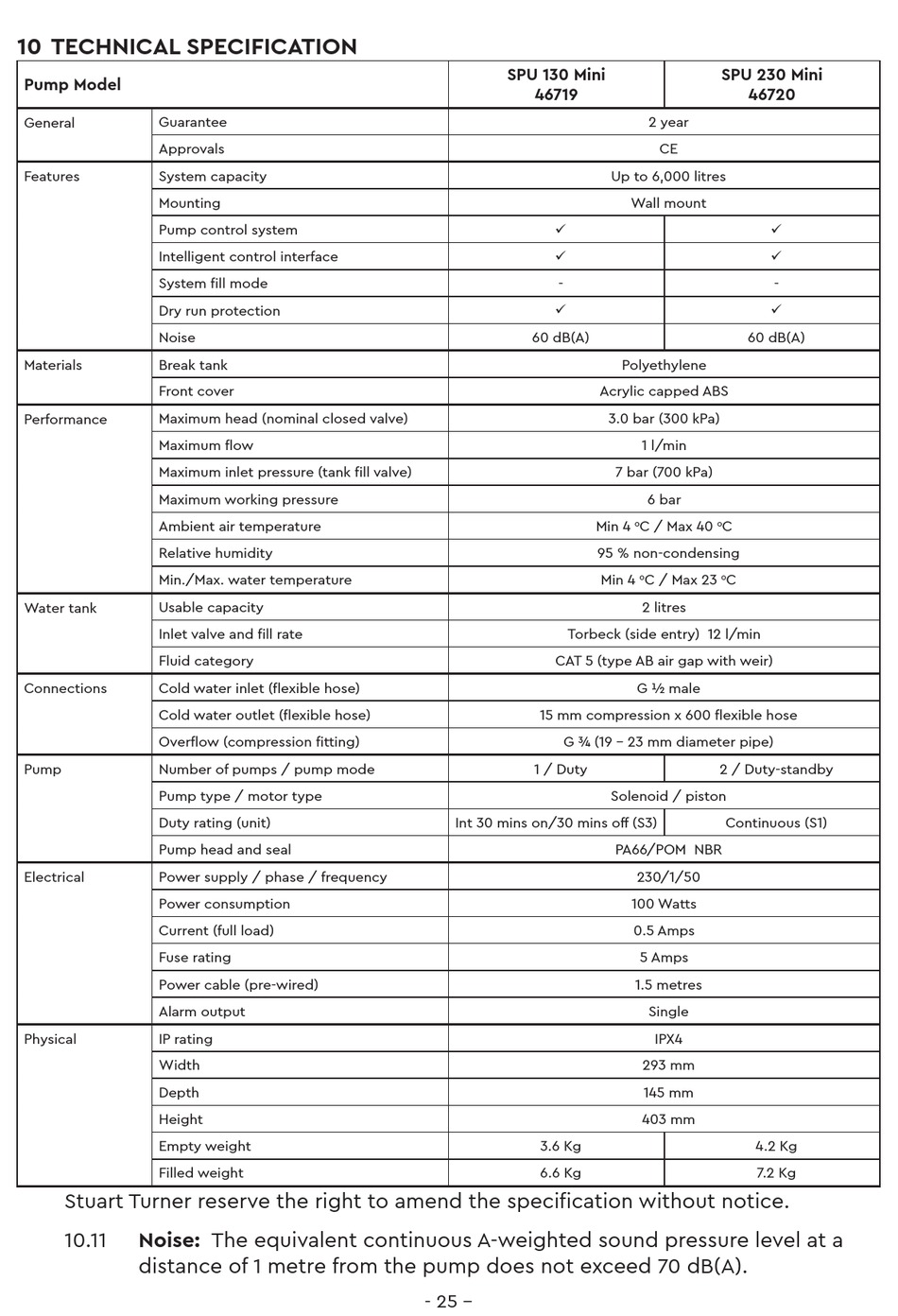

10 TECHNICAL SPECIFICATION

Pump Model
Guarantee
General
Approvals
System capacity
Features
Mounting
Pump control system
Intelligent control interface
System fill mode
Dry run protection
Noise
Materials Break tank
Front cover
Performance Maximum head (nominal closed valve)
Maximum flow
Maximum inlet pressure (tank fill valve)
Maximum working pressure
Ambient air temperature
Relative humidity
Min./Max. water temperature
Water tank Usable capacity
Inlet valve and fill rate
Fluid category
Cold water inlet (flexible hose)
Connections
Cold water outlet (flexible hose)
Overflow (compression fitting)
Pump Number of pumps / pump mode
Pump type / motor type
Duty rating (unit)
Pump head and seal
Electrical Power supply / phase / frequency
Power consumption
Current (full load)
Fuse rating
Power cable (pre-wired)
Alarm output
IP rating
Physical
Width
Depth
Height
Empty weight
Filled weight
Stuart Turner reserve the right to amend the specification without notice.
10.11 Noise: The equivalent continuous A-weighted sound pressure level at a
distance of 1 metre from the pump does not exceed 70 dB(A).
SPU 130 Mini
46719
ü
ü
-
ü
60 dB(A)
Torbeck (side entry) 12 l/min
CAT 5 (type AB air gap with weir)
15 mm compression x 600 flexible hose
G ¾ (19 - 23 mm diameter pipe)
1 / Duty
Int 30 mins on/30 mins off (S3)
3.6 Kg
6.6 Kg
- 25 -
SPU 230 Mini
46720
2 year
CE
Up to 6,000 litres
Wall mount
60 dB(A)
Polyethylene
Acrylic capped ABS
3.0 bar (300 kPa)
1 l/min
7 bar (700 kPa)
6 bar
Min 4 C / Max 40 C
o o
95 % non-condensing
Min 4 C / Max 23 C
o o
2 litres
G ½ male
2 / Duty-standby
Solenoid / piston
Continuous (S1)
PA66/POM NBR
230/1/50
100 Watts
0.5 Amps
5 Amps
1.5 metres
Single
IPX4
293 mm
145 mm
403 mm
4.2 Kg
7.2 Kg
ü
ü
-
ü
