2 LOCATION - GENERAL
2.11
2.12 Access and minimum clearance requirements: For emergencies
2.13 Protection: The SPU Mini must be located in a dry, frost free area.
2.14 Ventilation: Ensure an adequate air flow to cool the SPU Mini.
2.15 Water retention: Site the SPU Mini in a location where in the
2.16 Supply inlet pressure: The water supply inlet pressure must not exceed 7 bar.
2.17 Ambient temperature: The SPU Mini must be sited in a location where the
ambient temperature does not drop below 4 °C or exceed 40 °C.
2.18 Pipework: For optimum performance inlet and outlet pipework must be a
minimum of 15 mm pipe.
Location: The SPU Mini must be located on a solid wall of sufficient
strength to support the filled weight of the SPU Mini, close to the
water source and a suitable overflow position (see Section 10 -
Technical Specification for filled weight). The SPU Mini must not be
installed in a loft space. It must also be considered that the noise
and vibration from the SPU Mini may be transmitted through the
structure it is sited on. Ensure the minimum clearance requirements
are followed to allow servicing of the unit.
and maintenance the SPU Mini must be easily accessible and have

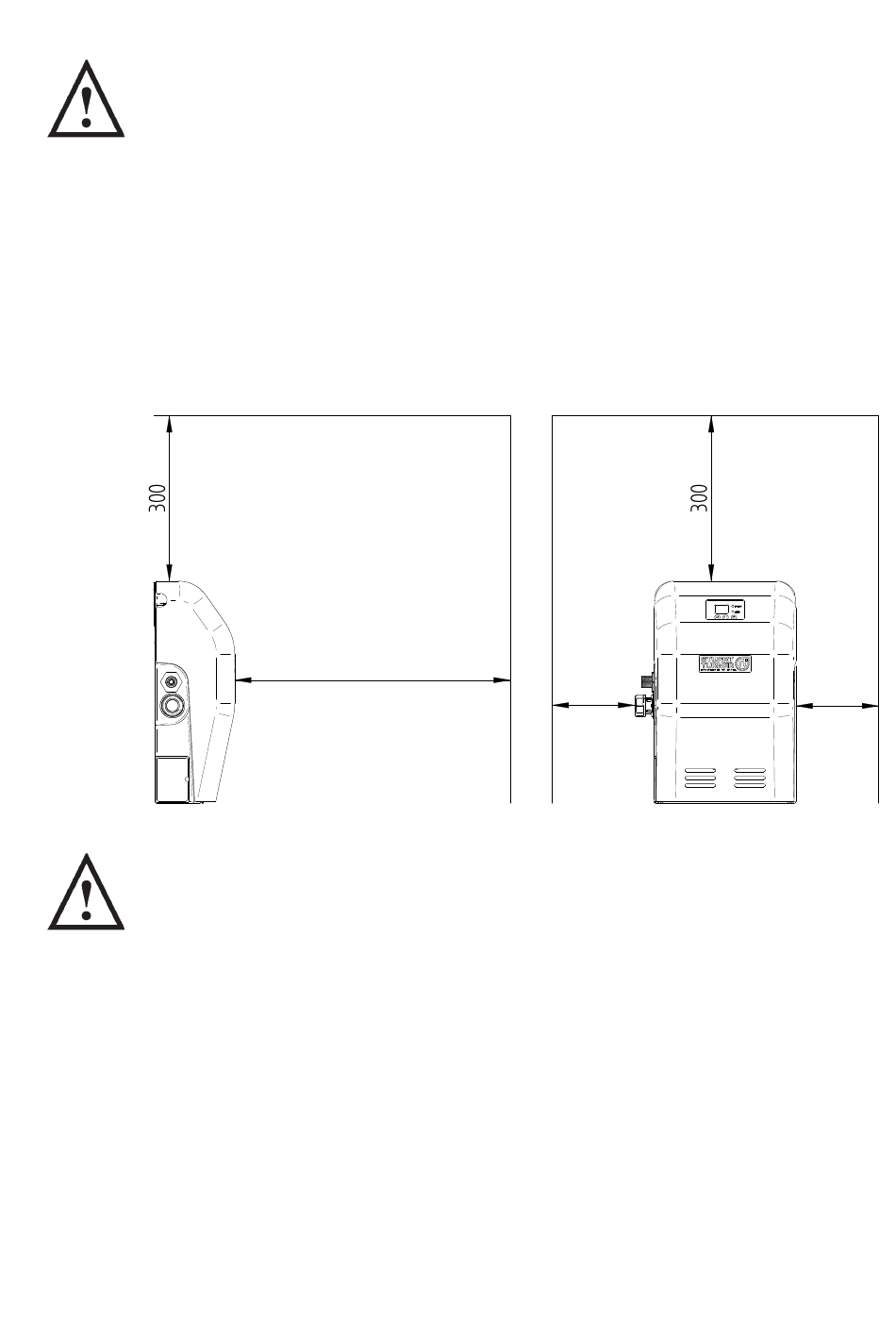

the minimum clearance around it as laid out in Fig. 2. Additional
access to the front of the unit will be required to operate the
keypad and view the display.
500
Separate the SPU Mini from other appliances that generate heat.
Do not block the vent holes on the front cover.
unlikely event of a water leak, any spillage is contained or routed
to avoid electrics or areas sensitive to water damage. As part of
the AB airgap (CAT 5 fluid isolation) the SPU Mini has a weir type
overflow on the front, water will be discharged from this area in the
event of the failure of the inlet valve or non-return valve.
150
Fig. 2
- 7 -
150
Cont ...
