4) Re-insert connector into the correct location on the control board and route
the cable to the back of the SPU Mini and secure with a cable tie to the
retainer.
5.24 Fuses: The following fuse size should be used:
Model
All models
5.25 Supply cord replacement:
The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a
special cord assembly available from Stuart Turner or one of their approved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to
the same pattern.
For information on cable connection consult the wiring diagram.

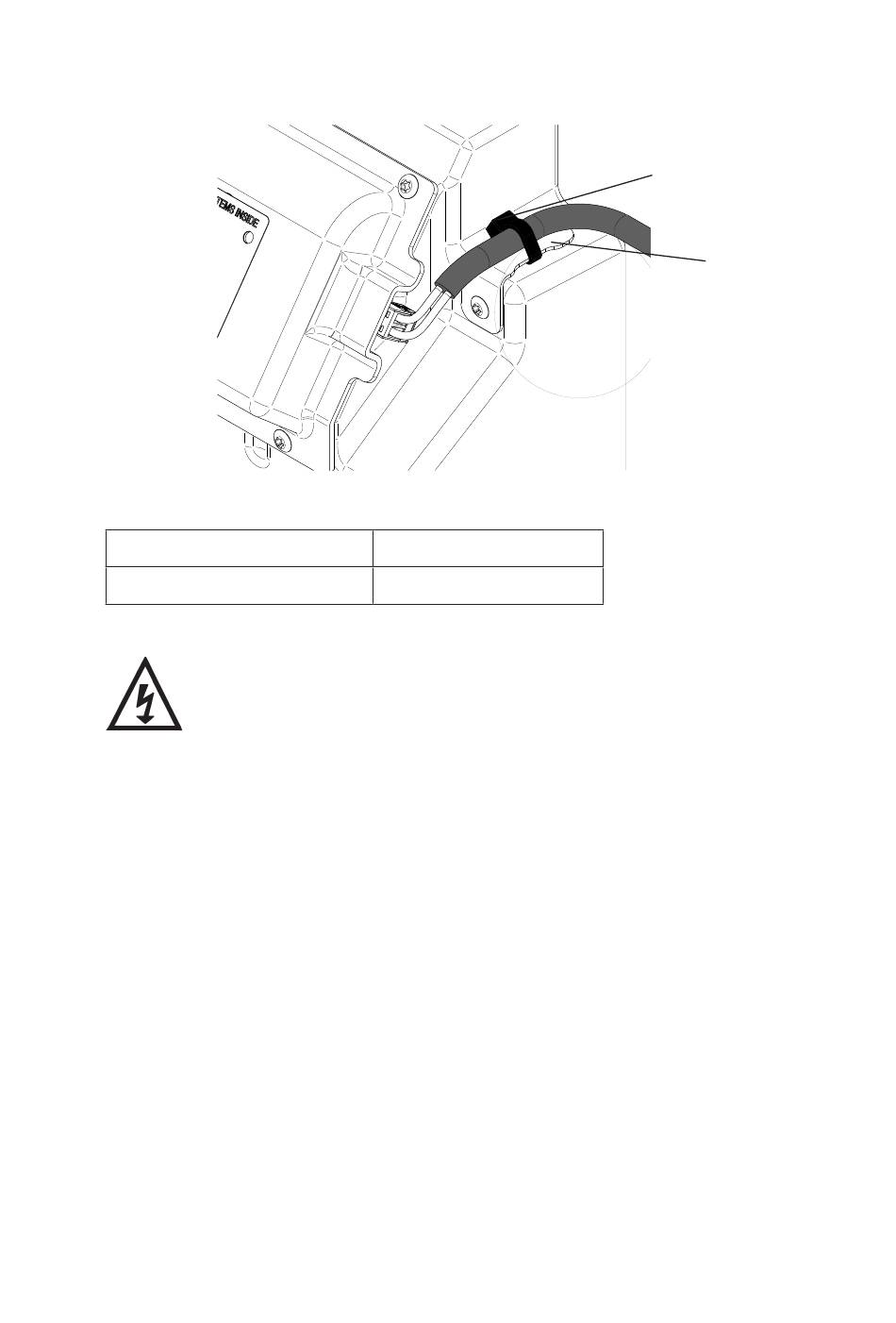

Fig. 17
Fuse Size (AMPS)
5
- 17 -
Cable tie
Retainer
Cont ...
