Description

3.1

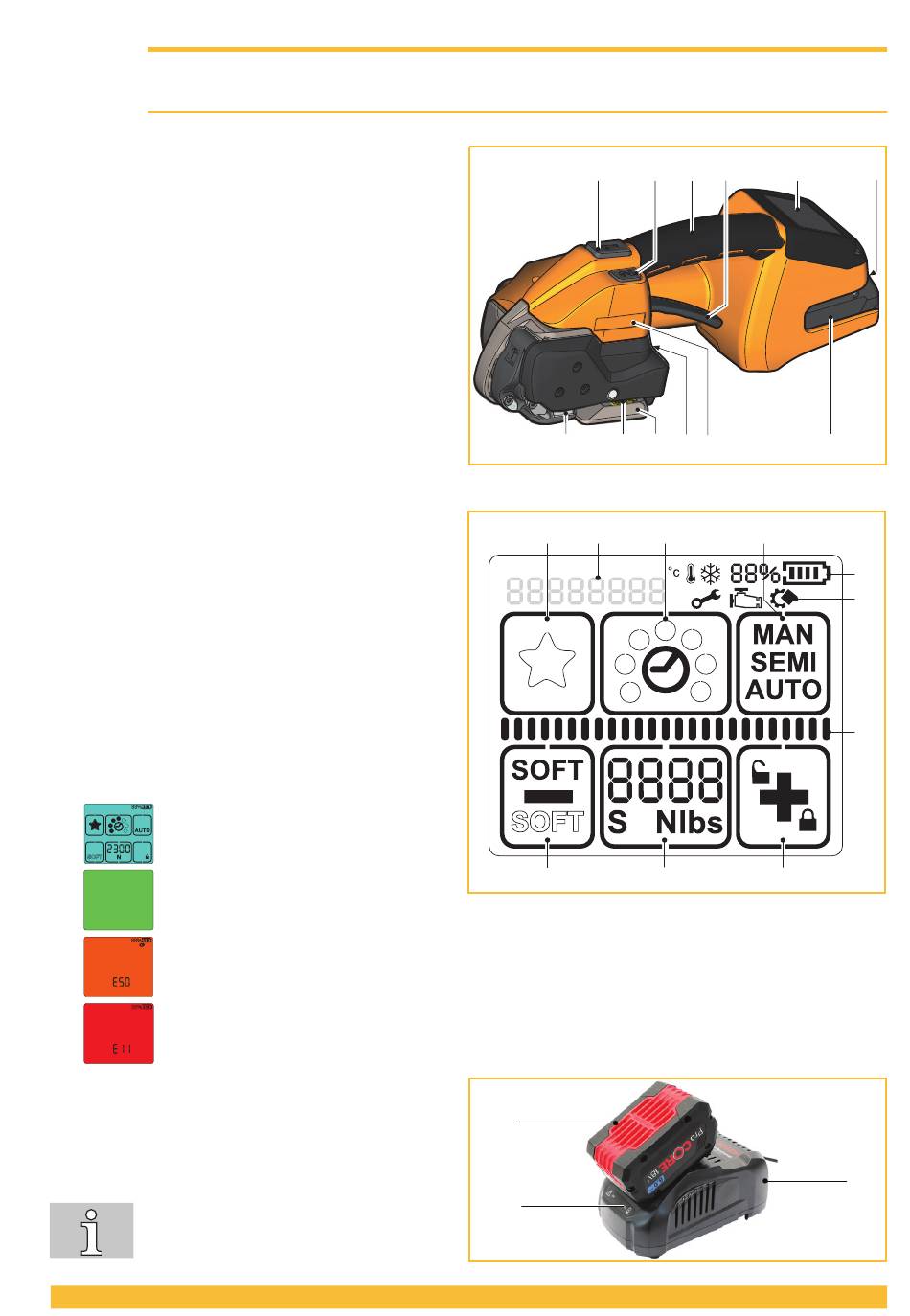

Design

1 Tensioning button
2 Welding button
3 Handle
4 Rocker lever
5 Operating panel
6 Unlock button, battery
7 Battery
8 Type designation
9 Strap guide indicator
10 Serial number (XJJMMYYYY)
X D=STB 77
JJ Year
MM Month
YYYY consecutive number
11 Welding device
12 Tensioning device
Operating panel
1 Keypad "Favourite"
2 Keypad "Welding time"
3 Keypad "Operating mode"
4 Keypad "Plus & Keylock"
5 Keypad "Tensioning force"
6 Keypad "Minus & Soft tension"
a Display "Battery charge status"
b Display "Information symbols"
c Status indicator bar "Tensioning/Welding"
d Display "Messages"
Background lighting
● Display activated.
● Welding process is finished, tool
can be removed (Section 5.1).
● Application error: temporary system error, can be rectified by the operator (Section 6.8).
● Tool fault: static system error, rectify error (Section 6.8). If the error cannot be rectified 
Service department.
Battery and charger
1 Charger
2 Battery
3 LED indicator
For detailed information, refer to the
operating instructions for the battery
and the charger.
V 04.21_EN
12
1
6
2
3
STRAPEX STB 77
1 2 3 4
11 10 9 8
d 2 3
5
5 6
7
a
b
c
4
1
9 of 26
