SITING OF THE SHOWER

Siting of the shower
IMPORTANT: If installing onto a tiled wall
always mount the unit on the surface of the
tiles. NEVER tile up to the unit.

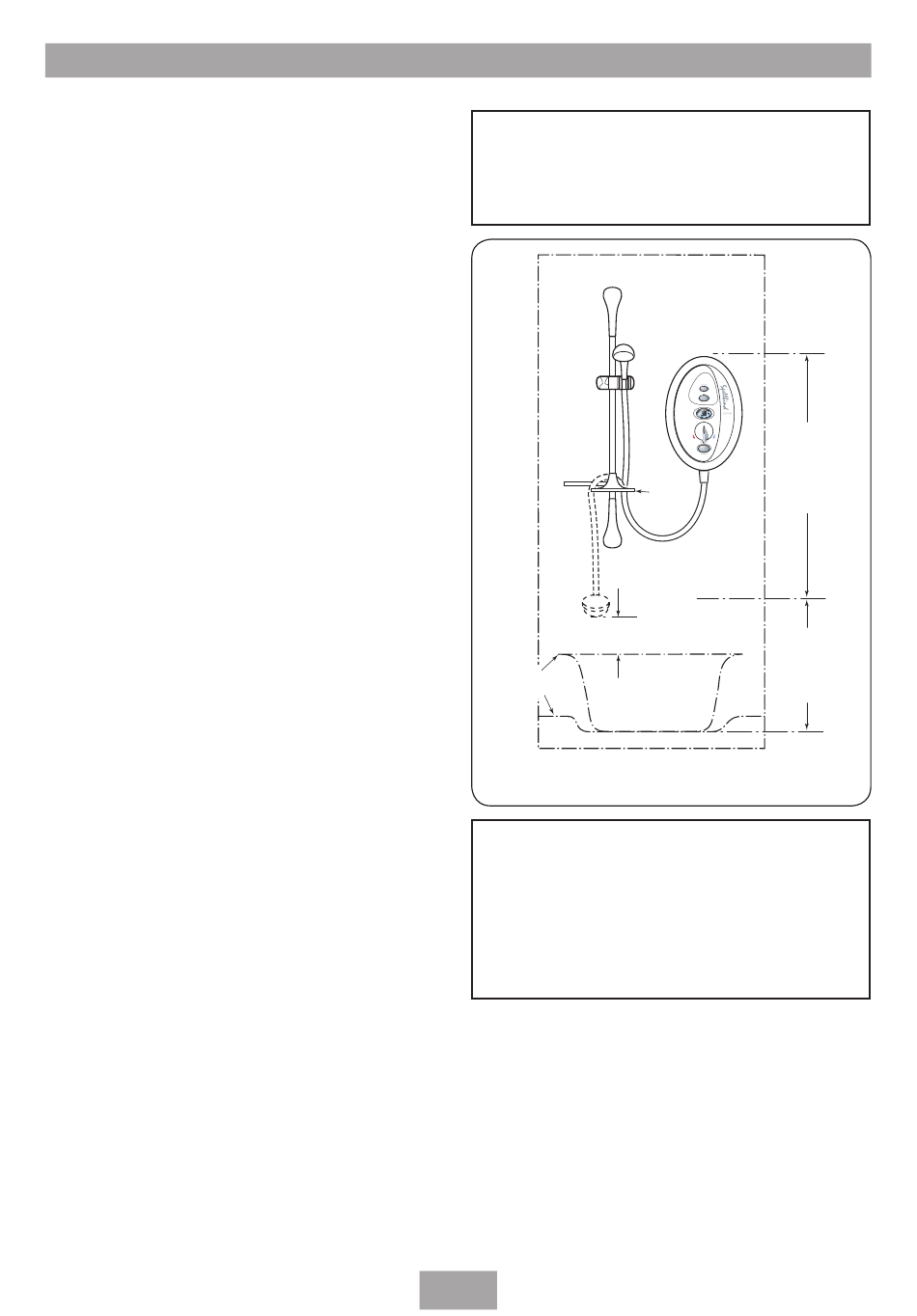

Refer to fig.6 for correct siting of the shower.
Position the unit where it will NOT be in direct
contact with water from the showerhead.
Position the shower unit vertically.
Allow enough room between the ceiling and the
shower to access the cover top screws.
Note: Water regulations require the showerhead
be 'constrained by a fixed or sliding attachment
so that it can only discharge water at a point
not less than 25 mm above the spill-over level
of the relevant bath, shower tray or other fixed
appliance'. The use of the supplied soap dish will
in most cases meet this requirement, but if the
showerhead can be placed within a bath, basin
or shower tray, then a double check valve, or
similar, must be fitted in the supply pipework to
prevent back-flow.
Liquid Crystal Display
This shower unit has a LCD which has an
optimum viewing angle that is slightly below eye
level. Position the unit so the display is at nose
level. For multiple users of varying heights, an
optimum shower height must be arrived at.
Spellbind
The shower must not be positioned
where it will be subjected to freezing
Spillover
level
Fig.6
IMPORTANT: The unit must be mounted on
a flat surface which covers the full width
and length of the backplate. It is important
that the wall surface is flat otherwise
difficulty may be encountered when fitting
the cover and subsequent operation of the
unit may be impaired.
7
WARNING!
W-008-A
conditions.
Riser rail can
be mounted either
side of shower
Soap dish
retaining
ring
25mm minimum
Outline of bath
or shower tray
Diagrammatic view (not to scale)
I-002-A
Height of
showerhead
and
shower
to suit
user's
requirement
Shower unit
must not
be within
an area
1 metre
from base
