Visit tritonshowers.co.uk/envisupport
or scan the QR code for instant access to

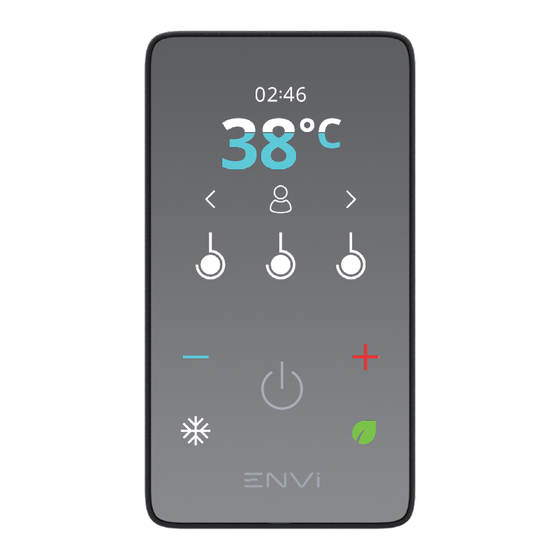

ENVi
Product Support.
®
Installation Instructions
Please read this book thoroughly and familiarise yourself with all instructions before
commencing installation and keep it for future reference.
The installation MUST be carried out by a suitably qualified person, in the sequence
of this instruction book.
IMPORTANT SAFETY ADVICE
The ENVi
shower system MUST BE switched off at the isolating switch when not in
®
use. This is a safety procedure recommended for all electrical appliances.
The shower head and hose supplied with this product are safety critical parts of
your shower. Failure to use genuine Triton parts may cause injury and invalidate
your guarantee.
2181674A - July 2023
Advertisement
Table of Contents
Related Manuals for Triton ENVI
Summary of Contents for Triton ENVI
- Page 1 This is a safety procedure recommended for all electrical appliances. The shower head and hose supplied with this product are safety critical parts of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk, provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate the shower if there is a possibility of frozen water within the heater or pipes feeding the shower. - Page 3 IMPORTANT SAFETY INFORMATION GENERAL ▪ Isolate the electrical and water supplies before removing the cover. ▪ Read all of these instructions and retain them for later use. ▪ DO NOT take risks with plumbing or electrical equipment. ▪ Isolate electrical and water supplies before proceeding with the installation. ▪...
-
Page 4: Table Of Contents
Positioning ................. Step by Step Instruction ............ENVi Controller Installation ® Positioning ................. Data Cable Installation.............. Step by Step Instruction ............Commissioning ENVi Shower System .......... ® Maintenance Inlet Filter ................... Rechargable Battery Replacement ......... Freezing Precaution ..............Thermal Purge ................ -
Page 5: Introduction
INTRODUCTION Please read this book thoroughly and familiarise yourself with all instructions before commencing installation. Please keep it for future reference. The shower installation MUST be carried out by a suitably qualified person, in the sequence of this fitting instruction. ADVICE TO USERS IMPORTANT: When first installed the Tri-HUB will be empty of water. -
Page 6: Specification
BS EN 60335-2-35 WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:... -
Page 7: Dimensions And Connections
DIMENSIONS & CONNECTIONS ENVi Controller ® (including Wall Fixing Bracket) ENVi Tri-HUB ® Mains Electricity Cable Entry Point Controller Cable Entry Point INLET Mains Water OUTLET Heated Supply Connection Water Connection... -
Page 8: Main Components
Wall Fixing Positions Tri-HUB Front Cover Inlet Filter Assembly Thermal Safety Cut-Out Main Printed Circuit Board Heater Element Assembly Control Valve Flow Sensor Inlet Thermistor Outlet Thermistor Solenoid Valve Front Cover Fixings ENVi Controller ® Controller Fixing Bracket Data Cable Rechargable Battery... -
Page 9: Installation Requirements
8. Important: Before completing the connection of the water supply to the inlet of the shower, flush out the pipework to remove all swarf and system debris. 9. Important: The Tri-HUB must be mounted on a even vertical surface otherwise the Tri- HUB’s inbuilt sensors will not allow for the ENVi shower to operate. ®... -
Page 10: Diagrammatic View
INSTALLATION REQUIREMENTS WARNING Fig.1 Diagrammatic view. The Tri-HUB MUST NOT be positioned Tri-HUB must be connected to a where it will be subjected to freezing single outlet kit recommended by the conditions. manufacturer. 10m controller data cable 230-240V ac electricity supply Mains cold (via double pole switch) Heated... -
Page 11: Electrical
Contact a professional electrician/local electricity company for advisement. 8. For close circuit protection DO NOT use a rewireable fuse. Instead use a suitably rated Miniature Circuit Breaker (MCB) or cartridge fuse. Triton recommend the following circuit protection: 9.0KW variant - 40Amp 10.5kW variant - 45Amp 9. -
Page 12: Terminal Block
INSTALLATION REQUIREMENTS 10. A 45 amp double pole isolating switch with a minimum contact gap of 3mm in both poles must be incorporated in the circuit. It must have a mechanical indicator showing when the switch is in the OFF position, and the wiring must be connected to the switch without the use of a plug or socket outlet. -
Page 13: Tri-Hub Installation
Ensure the Tri-HUB is installed in a position that will minimise the length of pipe runs to the shower head/accessory fittings. Triton recommend that the length of pipe should NOT exceed 3 metres, as the length of pipework will influence any losses in water temperature and response time when showering temperature settings on the ENVi Controller are changed. -
Page 14: Step By Step Instruction
TRI-HUB INSTALLATION Step Step After choosing the appropriate location for the Tri-HUB, remove the front cover by loosening the 4 fixing screws. Fixing Screws NOTE: These screws are captive and cannot be completely removed from the cover. Step Step Position the Tri-HUB on the wall and using the backplate enclosure as a template, mark the fixing positions holes. -
Page 15: Data Cable Connector
TRI-HUB INSTALLATION Step Step Electricty Supply Cable Neutral Cable Route the electricity supply cable in to Entry Grommet (Blue or Black) to the Tri-HUB through the cable entry grommet. Insert the conductors into the appropriate position on the terminal block. NOTE: The Earth conductor must be sleeved. -
Page 16: Envi Controller Installation Positioning
® distance between the Tri-HUB and Controller MUST be within this distance (including any allowance for the routing of the cable). IMPORTANT: The ENVi Controller has been designed to allow for installation within a ® bathroom environment. However, consideration should be given to the location, as water splashing onto the controller glass could trigger false activation during use. -
Page 17: Step By Step Instruction
Push the excess data cable/data cable connector through the hole within the fixing bracket and back into the wall cavity. Align the fixing lugs on the back of the ENVi Controller ® with the fixing lugs on the fixing bracket, then offer the Controller up to the fixing bracket. -
Page 18: Commissioning Envi Shower System
Controller and Tri-HUB as described in the installation sections ® of this book. When the Start/Stop icon is illuminated, touch it to wake the shower. The TRITON logo will appear briefly, this will then be replaced with the instructions to start the commissioning process. - Page 19 Default Showering Temperature screen (Step 3). The system will now prime with water and undertake an important routine to prepare the Tri-HUB for use. The display on the ENVi controller will change to show the progress, it ®...
- Page 20 Step Step Now Commissioning is complete, reattach any shower head and/or fixed head to the system using the hose washers supplied; DO NOT overtighten. Start the ENVi shower ® system and check the shower head/fixed head connection for water leakage.
-
Page 21: Maintenance
MAINTENANCE Instructions for Installers and Service Engineers Only Inlet Filter Maintenace It is recommended that the filter is periodically cleaned to maintain the performance of the Tri-HUB. Isolate the electricity and water supplies before commencing. Remove the front cover from Tri-HUB by untightening the screws in the 4 corners. The inlet filter is located on the bottom LH side of the Tri-HUB and can be removed by either a flat bladed screw driver or adjutstable spanner;... -
Page 22: Freezing Precaution
Installing the ENVi Tri-HUB where it is possible to be subjected to freezing conditions could ® cause critical damage. The ENVi Shower System periodically reads the ambient temperature ® of the air within the Tri-HUB and will display a two-stage warning if it has been subjected to cold conditions. - Page 23 If the product passes the Freezing Precaution procedure, the lockout will be removed and the ENVi shower system can be used as normal. If the product fails the Freezing ® Precaution procedure, please contact the Triton Customer Experience team for further assistance: 024 7637 2222...
-
Page 24: Thermal Purge
MAINTENANCE Thermal Purge ENVi shower system has a built-in procedure to thermally cleanse the Tri-HUB and ® associated pipework in the shower system, which can be initiated if the system has not been used for an extended period of time and may have been subjected to stagnant water. This cleansing is achieved by running the shower at 55°C for an extended period of time. -
Page 25: Error Codes
The ENVi shower system automatically checks the operation ® of the Tri-HUB. In the event that a fault is detected, an error message will be displayed on the ENVi controller when ® attempting to start a showering session. All error messages contain an error code and a QR code. -
Page 26: Fault Diagnostics
NTC resets. 1.4 RE003 (NTC) Error 1.4.1 The Tri-HUB PCB has an NTC safety device which message. ® has operated 3 times. Have the ENVi shower system checked. Contact Triton Customer Experience team. 1.5 CE001 Error message 1.5.1 Check the data cable for damage and check... - Page 27 5.3 Unit malfunction. 5.3.1 Have the ENVi shower system checked. Contact ® Triton Customer Experience team. To purchase a genuine Triton spare part for your product, please visit www.tritonshowers.co.uk/spares for product codes and prices. Alternatively please call our Customer Experience team on 024 7637 2222 to order direct.
- Page 28 Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk E-mail: technical@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Triton reserve the right to change product speci cation without prior notice. E&OE. © TRITON SHOWERS 2023...
