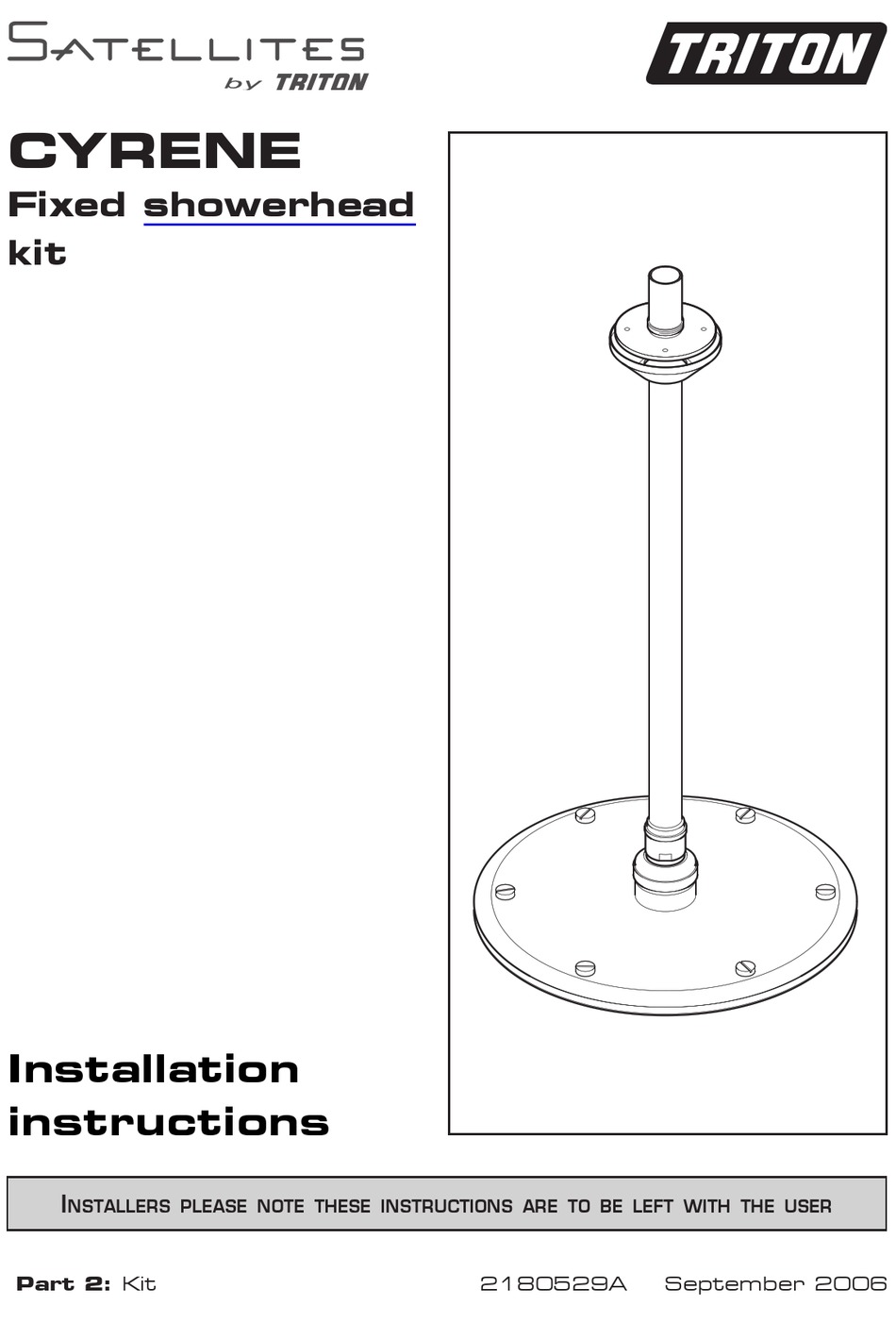

- Page 1 Cyrene Fixed showerhead Installation instructions nstallers please note these InstructIons are to be left wIth the user Part 2: Kit 2180529A September 2006...
- Page 2 Main components Installing the ceiling arm Spare parts Guarantee, etc. rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0870 067 3767 Facsimile: 0870 067 3334 E mail: technical@tritonshowers.co.uk...
- Page 3 General InstallatIon notes The following notes are given as the suggested steps for installing the Satellites A video detailing the installation of the mixer shower and remote control: Satellites mixer shower can be seen at 1. Site survey www.tritonshowers.co.uk. Determine the position of all parts of A DVD is also available on request. the shower (kit, mixing unit and control) Contact the Brochure request line for before starting the installation.
- Page 4 MaIn CoMPonents Fig.1 Cyrene ceiling arm kit (Fig.1) 1. Ceiling arm mounting plate 2. Olive 3. Locking nut Ceiling trim 4. 5. Ceiling arm 6. Emily fixed showerhead 7. Fixing screws and wall plugs (not shown) Instructions, guarantee, template etc.
- Page 5 InstallatIon Fig.2 WarnInG! the edges of the riser rail are extremely sharp. take care when handling and cutting the rails. Important: Make sure all pipework connections to and from the mixing unit have been completed before connecting to the outlet. Refer to ‘Part 3: Mixing unit for details. Decide the position for the ceiling arm on Fig.3 the ceiling within the shower area. Joist Position the mounting plate on the ceiling.
- Page 6 Fitting the ceiling arm Fig.5 Wrap the exposed thread on the mounting plate with PTFE tape. Mounting Slide the locking nut and olive onto the plate ceiling arm. Insert the ceiling arm into the mounting plate and slide the olive up to the plate base.
- Page 7 sPare Parts ref. Description part no. 1. Mounting plate 83310900 2. 19 mm olive 83310910 3. Locking nut 83310920 4. Ceiling trim 83310930 5. Ceiling arm 83310940 6. Emily fixed showerhead 88600006...
- Page 8 This product must not be taken apart, modified or repaired except by a person authorised by Triton. This guarantee applies only to products installed within the United Kingdom and does not apply to products used commercially.
