Summary of Contents for Triton ENVI
- Page 1 User Guide 2181675A - July 2023...
- Page 2 Welcome to Welcome to ® ® ENVi Thermostatic Electric Shower - DuElec Dual Outlet Kit ® ®...
-
Page 3: Product Information
Phased shutdown - reducing unwanted scale build up • Flexible installation - Tri-HUB can be located in the loft or airing cupboard • Replacement installation - discover the ENVi retrofit plate ® accessory to cover marks from the previous electric shower installation. Visit tritonshowers.co.uk/envi for more information... -
Page 4: Table Of Contents
Contents Contents Product Information ENVi Controller Layout ® Quick Start Switching the Shower On Adjusting the Temperature ENVi Mode and User Profiles ® Switching the Shower Off 11 - 15 System Settings 16 - 19 Care and Cleaning Error Codes... -

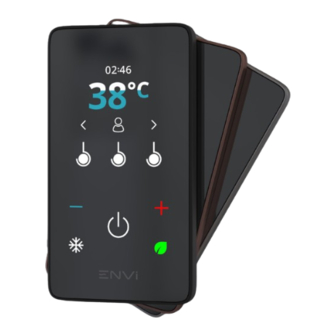

Page 5: Envi Controller Layout
ENVi ENVi Controller Layout Controller Layout ® ® Display Area Menu Controls Increase Decrease Showering Showering Water Water Temperature Temperature Start/Stop Control COLD Control ECO Control The function of each Menu Control adapts to the mode it is used in, and is denoted on-screen above each control by one of the following icons: - Up/Down: Navigate items within a menu or sub-menu. -
Page 6: Quick Start
Quick Start Quick Start Touch the Start/ Touch the Touch the icon Stop icon to start icons to adjust the to run the shower showering shower temperature at ambient water temperature Touch the icon to Touch the circular Touch the Start/ reduce the shower symbols under and Stop icon... -
Page 7: Switching The Shower On
Switching the Shower On Switching the Shower On Upon connecting ENVi to the electricity supply, there may be a delay period of a ® few seconds whilst the controller connects to the Tri-HUB. The Start/Stop icon on the controller will illuminate once this is complete, touch it to start showering. -
Page 8: Adjusting The Temperature
Adjusting the Temperature Adjusting the Temperature The shower temperature can be digitally adjusted by touching the icons, and it can be set between 32°C and 46°C in 1°C increments. ENVi ® thermostatic temperature control, which means the outlet temperature will remain constant even if water is being used elsewhere, ensuring reliable safety and comfort. -
Page 9: Envi
User Profile. The shower temperature can still be manually adjusted by touching the controls. For a simplified showering experience, ENVi Mode can be deactivated in the ® System Settings (pg.12), which hides the profile controls whilst showering. -
Page 10: Switching The Shower Off
® Stop icon is touched whilst showering. The shower will begin Phased Shut Down, which protects the ENVi Tri-HUB from overheating by purging it of hot ® water before turning fully off. The duration of the shower and other usage statistics from the shower will be displayed. - Page 11 Default Showering Temperature This will set the shower temperature when no user profile is selected whilst showering. Default Showering Time This will set the initial duration of the timer, after which ENVi will automatically ® stop and enter phased shut down.
- Page 12 On-screen Shower Timer This will determine whether the timer is displayed or not with the respective User Profile selected. If set to ‘Off’, although hidden, the timer is still active and ENVi ® will shut down once it expires.
- Page 13 Any adjustment to the Energy or Water Unit Price is not retrospective and only applies when calculating the usage of future showering sessions. The usage statistics that are calculated by ENVi ® a best estimate and should only be used as a relative...
- Page 14 If this value is set to £0, Cost will not be calculated and will not be displayed during shut down or in the View Usage Data sub-menu. The Energy Unit Price must also be set to allow ENVi to calculate ®...
- Page 15 Audible Touch Feedback This will determine whether additional audio feedback is provided when interacting with the ENVi Controller. Please note that with this setting turned OFF, the controller will still provide feedback when starting and stopping the shower, and if an error code is displayed.
-
Page 16: Care And Cleaning
You can therefore, rest assured when you order a genuine Triton electric shower head or fixed head that it has been fully tested for use in the UK on all electric shower types. - Page 17 Care and Cleaning Care and Cleaning Shower Head Five shower head spray patterns are available. Adjust the spray pattern by turning the lever on the shower head in either direction until the desired pattern is obtained. These positions are located at 4, 5, 6, 7 and 8 o’clock, when the shower head is in the vertical position Removal of the Spray Plate for De-Scaling 1.
- Page 18 Care and Cleaning Care and Cleaning Replacing the Spray Plate 5. The spray plate and face plate MUST Inner plate be aligned correctly for re-installation. a. Ensure that the inner plate is Alignment turned fully clockwise until it stops. arrow The alignment arrow position is approximately 9 o’clock when the shower head is in the vertical...
- Page 19 Internal collapse can restrict the flow rate from the shower head and may cause damage to the shower, especially an electric shower. Triton recommends use of a branded anti-twist hose on all showers to ensure continuous safe performance. To inspect your hose: 1.
-
Page 20: Error Codes
® showering session. All error messages contain an error code and a QR code. Scanning this QR code with a compatible device (e.g. a smartphone) will link to the ENVi Product ® Support page on the Triton website. This page will provide guidance on what to do next when a particular error message is displayed.
Need help?
Do you have a question about the ENVI and is the answer not in the manual?
Questions and answers
Envi shower keeps repeating the commissioning cycle
The Triton ENVi shower keeps repeating the commissioning cycle because the initial commissioning process has failed. The system automatically restarts the routine to ensure the Tri-HUB is properly prepared for use. The display on the ENVi® controller will show the progress, and the process takes approximately 2 minutes to complete. The commissioning should not be prematurely terminated, and the controller will display a message when it is successfully completed before reverting to standby mode.
