Mains electric supply (via double pole switch)
Double
pole
isolating
switch
Shower
unit
Switch may
be wall
Isolating
mounted
stopvalve
in accordance
with IEE regs.
Mains
water
supply
Fig.5

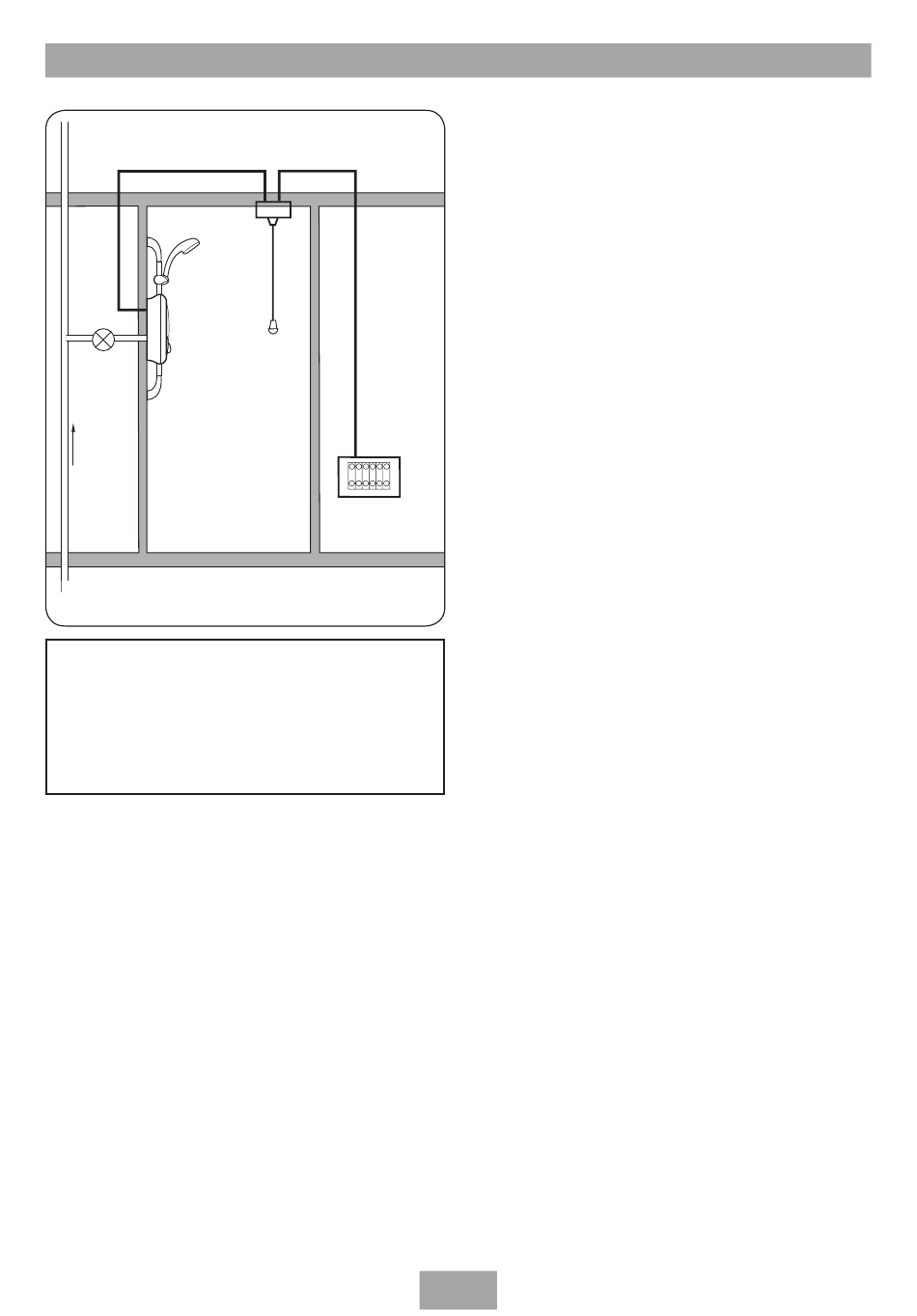

Diagrammatic view (not to scale)
WARNING!
If planning to use a silicon seal
around the backplate edge, do not
place sealant in the area of the PRD
exit channel.
Spellbind

WATER REQUIREMENTS

Water requirements
The installation must be in accordance with
Water Regulations/Bylaws.
To guarantee activating the heating elements,
the shower must be connected to a mains water
supply with a minimum running pressure of
100kPa (1.0 bar) at a minimum flow rate of nine
litres per minute with a maximum static pressure
of 1 000kPa (10 bar).
Separate
Note: For the 10.5kW rated shower, the
permanently
connected
minimum running pressure must be 150kPa
supply from
(1.5 bar) at a minimum flow rate of eleven litres
consumer unit
per minute with a maximum static pressure of
1 000kPa (10 bar).
If the stated flow rates are not available, it may
not be possible to achieve optimum performance
from the unit throughout the year.
For guidance on the running and static pressures
contact the local Water Authority or consult a
competent plumber.
Under site conditions where the power supply is
below 220 volts and the mains water pressure is
above 5 bar, it is recommended to fit a pressure
reducing valve set at 3.5 bar.
A typical system layout is shown in fig.5.
DO NOT use jointing compounds on any pipe
fittings for the installation.
During periods of high ambient water
temperatures it may be necessary to select a low
power setting to achieve your preferred shower
temperature. The water supply can be taken
from a cold water storage cistern provided there
is a minimum head of ten metres above the
showerhead (fifteen metres for the 10.5kW rated
shower). It must be an independent supply to
the shower only.
If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated, contact Customer Service.
