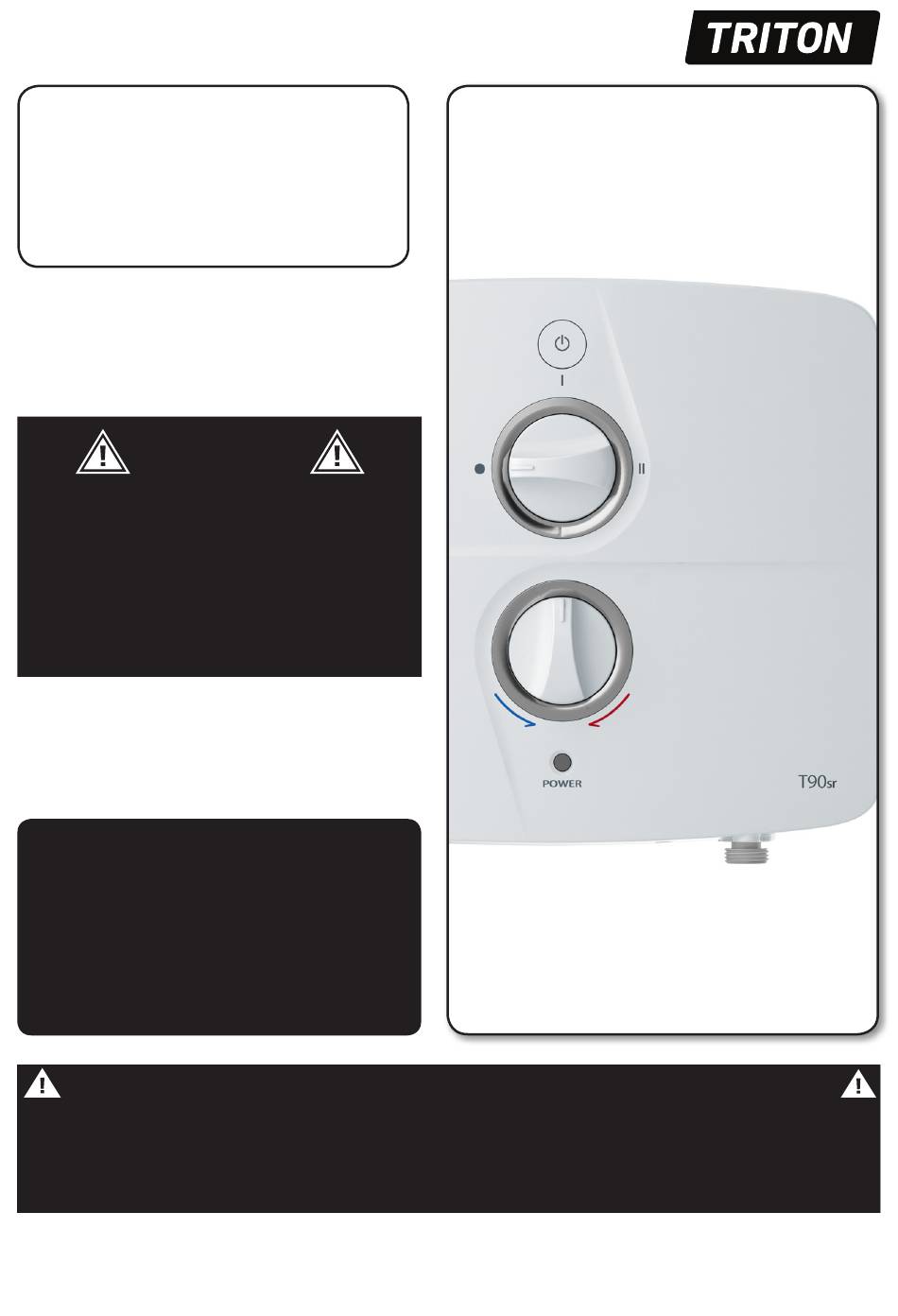

T90sr
electric shower
! IMPORTANT !
Under *NO circumstances should
this shower be connected directly
to a mains water supply.
It is designed for GRAVITY FED
COLD WATER systems ONLY !
*
Failure to comply WILL invalidate product warranty
Installation and
operating
instructions
I
-
nstallers please note
these InstructIons are to be left wIth the user
The showerhead and hose supplied with this product are a safety
critical part of your shower. Failure to use genuine Triton parts
may cause injury and invalidate your guarantee.
2181355F - October 2018
European Union Registered Design No. 003154467-0003/0004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T90SR and is the answer not in the manual?

Questions and answers

Related Manuals for Triton T90SR

Summary of Contents for Triton T90SR

  • Page 1 InstructIons are to be left wIth the user The showerhead and hose supplied with this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. 2181355F - October 2018...
  • Page 2 INTRODUCTION - PLEASE READ PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. ARNING: DO NOT operate shower if frozen, or suspected of being frozen.
  • Page 3 DO NOT operate the unit if the showerhead or spray hose becomes damaged. DO NOT restrict ow out of shower by placing showerhead in direct contact with your body. DO NOT operate the shower if water ceases to ow during use or if water has entered inside the unit because of an incorrectly tted cover.
  • Page 4 GENERAL ADVICE TO USERS IMPORTANT ADVICE TO USERS The following points will help you understand how the shower operates: a. The electric heating elements operate at a COMMISSIONING ADVICE constant rate at your chosen power setting. It is the rate of the water passing through When first installed the unit will be empty.

  • Page 5: Table Of Contents

    Triton recommend watching the short online *videos that cover electric shower basics before your installation - *(videos may not show the exact model purchased) • What is an electric shower? • Electrical requirements for electric showers • Plumbing requirements for electric showers •...
  • Page 6 Spare parts ...................... 27- 28 SHOWER CONTROLS - QUICK USER GUIDE ..........29 Service Policy/Guarantee ................Rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Please see back of book for contact information.

  • Page 7: Specifications

    SECTION check list SPECIFICATIONS ELECTRICAL Nominal power - rating at 230V - 9.0kW – (40A MCB rating) PLUMBING (see page 11 & 12 for water regulations) Supply Source - see page 11 for full details Cold water storage ONLY Minimum capacity 114 litres (25 gallons) Minimum head height = 8cm Maximum head height = 10m Minimum flow to shower inlet = 8l per minute...

  • Page 8: Dimensions & Cable/Water Entry Points

    SECTION DIMENSIONS & ENTRY POINTS check list Fig.1 DIMENSIONS 322mm 95mm Fig.2 ENTRY POINTS = Back WATER = Others Left: Bottom, Back & Top. = Back CABLE = Others Left: Bottom, Back & Top. PLEASE NOTE: Deviation from the approved entry points will invalidate product specifications and warranty.

  • Page 9: Electrical Requirements

    SECTION ELECTRICAL REQUIREMENTS check list ELECTRICAL REQUIREMENTS Triton Showers, Fig.3 Triton Road, Nuneaton, Warwickshire, CV11 4NR WARNING! W-006-A xxxx THIS APPLIANCE MUST BE EARTHED The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be suf cient for the amperage required.

  • Page 10: Electrical Requirements

    SECTION ELECTRICAL REQUIREMENTS check list A 45 amp double pole isolating switch with 9.3 In any event, it is essential that individual a minimum contact gap of 3 mm in both site conditions are assessed by a competent poles must be incorporated in the circuit. electrician in order to determine the correct cable size and permissible circuit length.

  • Page 11: Siting Of The Shower

    SECTION check list SITING OF THE SHOWER SITING OF THE SHOWER WARNING The installation must be in accordance with UNDER NO CIRCUMSTANCES should Water Regulations/Bylaws - see page 7 and this shower be connected directly to below for water specifications. the mains water supply.
  • Page 12 SECTION SITING OF THE SHOWER check list IMPORTANT: Water regulations (fig.6) WARNING • It is required that the showerhead be The shower MUST NOT be ‘constrained by a fixed or sliding attachment positioned where it will be so that it can only discharge water at a point subjected to freezing conditions.

  • Page 13: Plumbing Installation

    SECTION check list PLUMBING INSTALLATION PLUMBING INSTALLATION IMPORTANT INFORMATION Plumbing to be carried out before wiring The outlet of the shower acts as a vent • DO NOT use jointing compounds on any and must not be connected to anything pipe fittings for the installation.

  • Page 14: Electrical Installation

    SECTION check list ELECTRICAL INSTALLATION ELECTRICAL INSTALLATION NOTE: Deviations from the designated entry IMPORTANT: Switch off the electricity supply at the mains before proceeding. points will invalidate product approvals. The cable entry points are listed on page 8. • The supply cable MUST be secured either by routing through conduit, in trunking or by •...
  • Page 15 SECTION check list FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES Fitting Procedure Fig.9 • Turn off water supply at the isolating stop valve. • Temporarily connect the water supply to the inlet of the shower using a 15mm x 15mm compression fitting.
  • Page 16 SECTION FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES check list NOTE: At this stage no water can flow through Fig.11 the unit. IMPORTANT: A suitable sealant should always be used to seal around the incoming pipework to prevent water entering the wall. •...

  • Page 17: Installation

    SECTION check list INSTALLATION Fig.13 WARNING Before fitting the cover the following list MUST be checked to ensure the commissioning procedure may be Open carried out correctly. TO DO BEFORE FITTING THE COVER 1. Make sure the water supply is turned on to the shower.

  • Page 18: Installation

    SECTION INSTALLATION check list 4. IMPORTANT: Make sure the commission link Fig.15 is in the ON position - see fig.14. NOTE: With the commission link in the ON position the pump is OFF and will not operate. FITTING THE COVER Turn the 5.

  • Page 19: Commissioning Procedure

    SECTION check list COMMISSIONING Fig.17 WARNING Before normal operation of the shower, it COLD is essential the following commissioning POWER position procedure is completed correctly. SELECTOR KNOB COMMISSIONING PROCEDURE The first operation of the shower is intended to flush out any remaining unit debris and to make sure the heater unit contains water before the elements are switched on.
  • Page 20 SECTION COMMISSIONING check list Fig.18 SWITCH OFF THE ELECTRICITY SUPPLY TO THE SHOWER AT THE ISOLATING SWITCH BEFORE PROCEEDING TO STAGE 5. 5. Unscrew the cover retaining screws and lift the cover from the backplate. Remove locking screw 6. Make sure the commission link is moved to the after commissioning has been successfully OFF position - see fig.14.

  • Page 21: User Operating Instructions & Functions

    SECTION check list USER OPERATING INSTRUCTIONS OPERATING THE SHOWER - (fig.18) Fig.18 Make sure the commissioning procedure has been carried out. To start the shower • Press the Start/Stop button and water will flow. To stop the shower • Press the Start/Stop button and water will cease to flow.
  • Page 22 SECTION USER OPERATING INSTRUCTIONS check list To adjust the shower temperature - Fig.19 Economy and High settings only • The water temperature is altered by increasing or decreasing the flow rate of the water through the shower via the temperature control (fig.19).
  • Page 23 SECTION check list USER OPERATING INSTRUCTIONS OPERATING FUNCTIONS Fig.20 Power on indicator (fig.20) When the electricity supply to the shower is Start/Stop button switched on at the isolating switch, the LED will illuminate. Low water pressure cut-out Should the water pressure fall below the minimum required to operate the shower, power will be switched off to the heating elements preventing any maintained temperature rises.

  • Page 24: Cleaning The Filter - Installers & Service Engineers Only

    CLEANING THE FILTER Instructions for installers and service engineers only INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY Instructions for installers and service engineers only CLEANING THE FILTER It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower.

  • Page 25: Fault Finding/Troubleshooting

    FAULT FINDING/TROUBLESHOOTING FAULT FINDING Important: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Problem/Symptom Cause Action/Cure Problem/Symptom Cause Action/Cure 1 Shower inoperable, 1.1 Interrupted power 1.1.1 Blown fuse or circuit breaker. Check supply no water flow.

  • Page 26: Fault Finding/Troubleshooting

    When fitting a new PRD, follow the commissioning procedure. It is advised all electrical maintenance/repairs to the shower should be carried out by a suitably qualified person. In the unlikely event of a fault occurring please contact Triton Customer Service. DO NOT remove the shower from the installation.

  • Page 27: Spare Parts

    SPARE PARTS...
  • Page 28 Ref. Description Part No. Ref. Description Part No. Pump & Motor Assembly ....83316090 Start/Stop Switch Assembly ..P81901350 Thermal Cut-Out ......22013591 10. Trimplate - White ......7054251 Trimplate - Satin ......7054287 Terminal Block & Wires ....S82201380 11.

  • Page 29: Shower Controls - Quick User Guide

    SHOWER CONTROLS - QUICK USER GUIDE To START or STOP your shower. To start the shower, press the The power light Start/Stop button. will illuminate. To STOP the shower - press the Start/Stop button, then turn the Turn the isolator switch OFF. main power isolator switch ON To alter the FLOW and TEMPERATURE of your shower - HEAT SETTINGS ONLY.

  • Page 32: Service Policy/Guarantee

    Earthridge International Ltd Triton Showers Triton Road Maynooth Nuneaton Co. Kildare. Warwickshire, CV11 4NR Triton is a division of Norcros Group (Holdings) TRITON reserve the right to change product specifi cation without prior notice. E&OE. © TRITON SHOWERS 2018...
