Fig.13
L
Terminal
block
N
Earth
E
post
Control
PCB
Start/stop
switch
Elements
outlet
Fig.14
Spellbind
Pressure
switch Thermistor
Thermal
cut-out
Power
PCB
Connector
socket
Solenoid
valve
inlet
Cable sheath
stripped back
to minimum

ELECTRICAL CONNECTIONS

Electrical connections
SWITCH OFF THE ELECTRICITY SUPPLY AT
THE MAINS.

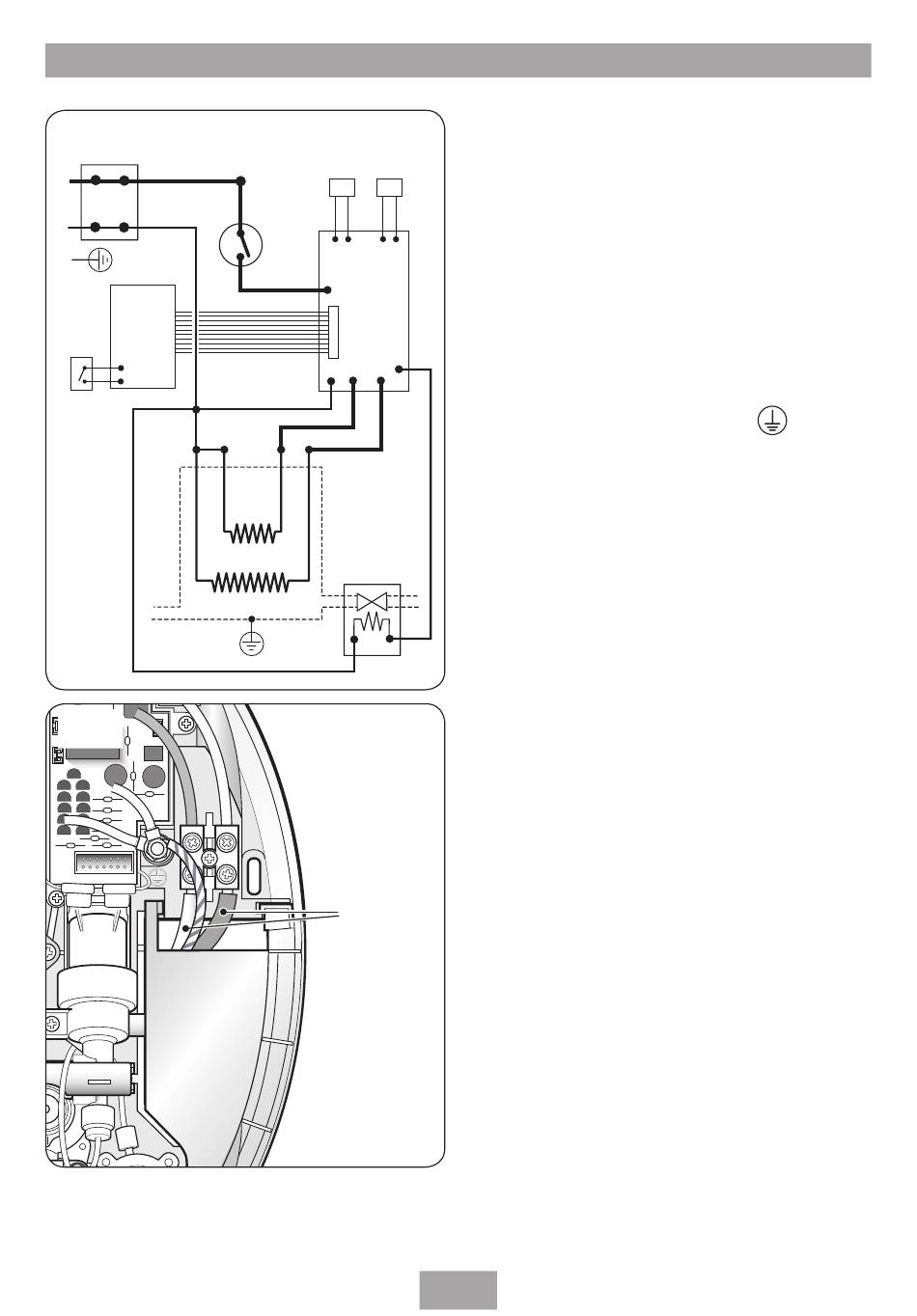

Fig.13 shows a schematic wiring diagram.
The cable entry points are top, bottom or back.
The cable can be surface clipped, hidden or via
20 mm conduit.
Note: Conduit entry can only be from rear.
Route the cable into the shower unit and
connect to the terminal block as follows:
Earth cable to terminal marked E
Neutral cable to terminal marked N
Live cable to terminal marked L
IMPORTANT: Fully tighten the terminal block
screws and ensure that no cable insulation is
trapped under the screws. Loose connections
can result in cable overheating.
Note: The supply cable earth conductor must be
sleeved (fig.14). The outer sheath of the supply
cable must be stripped back to the minimum.
The supply cable must be secured either by
routing through conduit or in trunking or by
embedding in the wall, in accordance with
BS 7871 (IEE wiring regulations).
The use of connections within the unit to supply
power to other equipment i.e. extractor fans,
pumps etc. will invalidate the guarantee.
DO NOT switch on the electricity supply until
the cover has been fitted.
Note: The elements on UK models are to 240V
specifications and will give a lower kW rating if
the supply voltage is below 240V.
12
