8. Secure the panel PC in place by tightening the screws in the wall mount bracket.
2.3.2
Panel Mounting
To mount the flat bezel panel PC into a panel, follow the steps below.
1.
Prepare a panel cutout that corresponds to the device size,
(413 x 262 mm (16.25 x 10.31 in) for PPC-3150SW-PN4A,
479.3 x 300.3 mm (18.87 x 11.82 in) for PPC-3180SW-PN4A).
2.
Install the panel PC in the cabinet and retrieve the hook brackets (x 10 for PPC-
3150SW-PN4A and x 12 for PPC-3180SW-PN4A) and M6 screws (x 10 for
PPC-3150SW-PN4A and x 12 for PPC-3180SW-PN4A) from the accessory box.
3.
Insert the hook brackets into the mount holes in a downwards direction (as
shown in Figure 2.9). Then hang the panel PC.

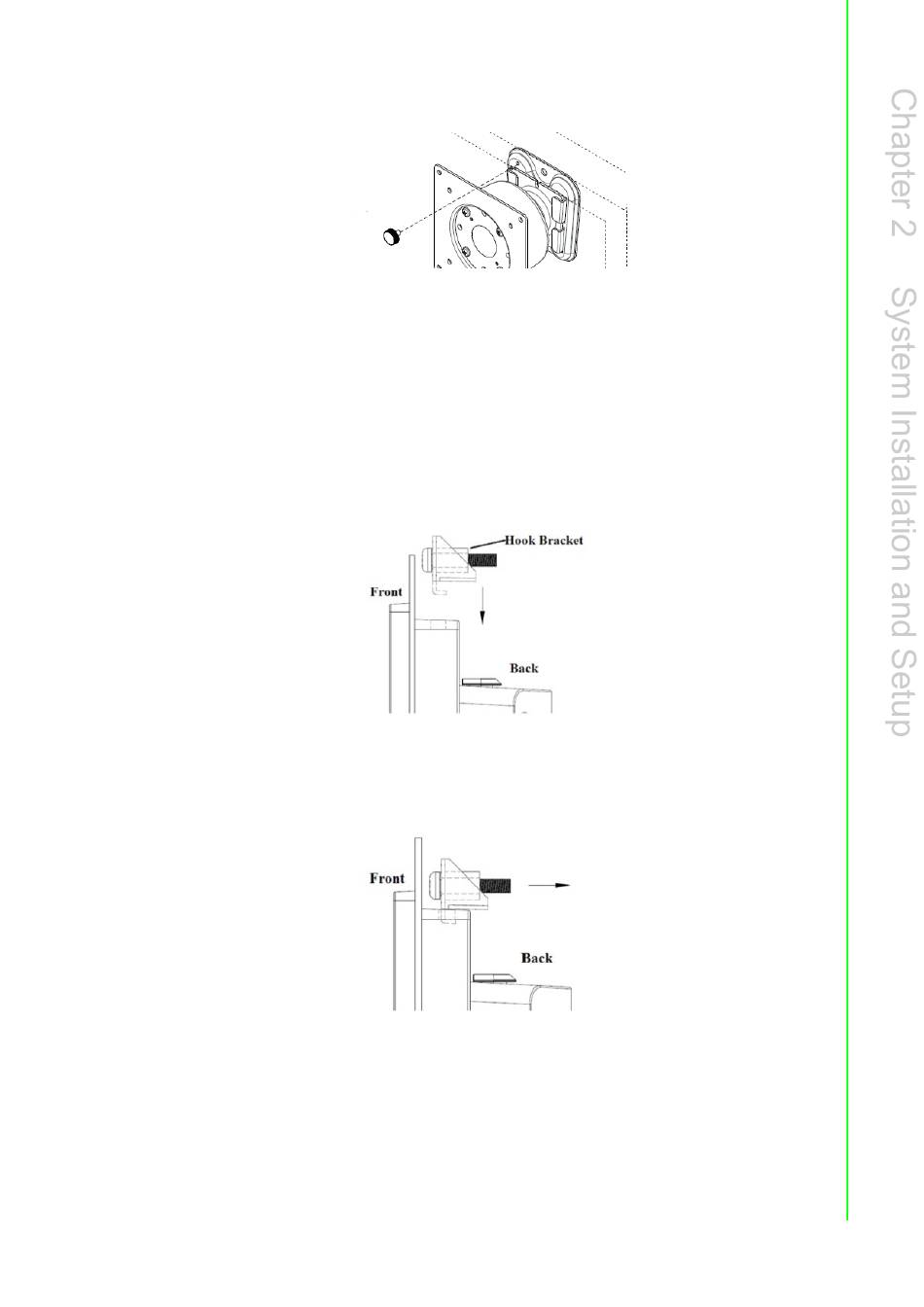

Figure 2.7 Securing the Panel PC
Figure 2.8 Hook Brackets for Panel Mounting
Figure 2.9 Hook Bracket Location
17
PPC-3150SW_3180SW User Manual
