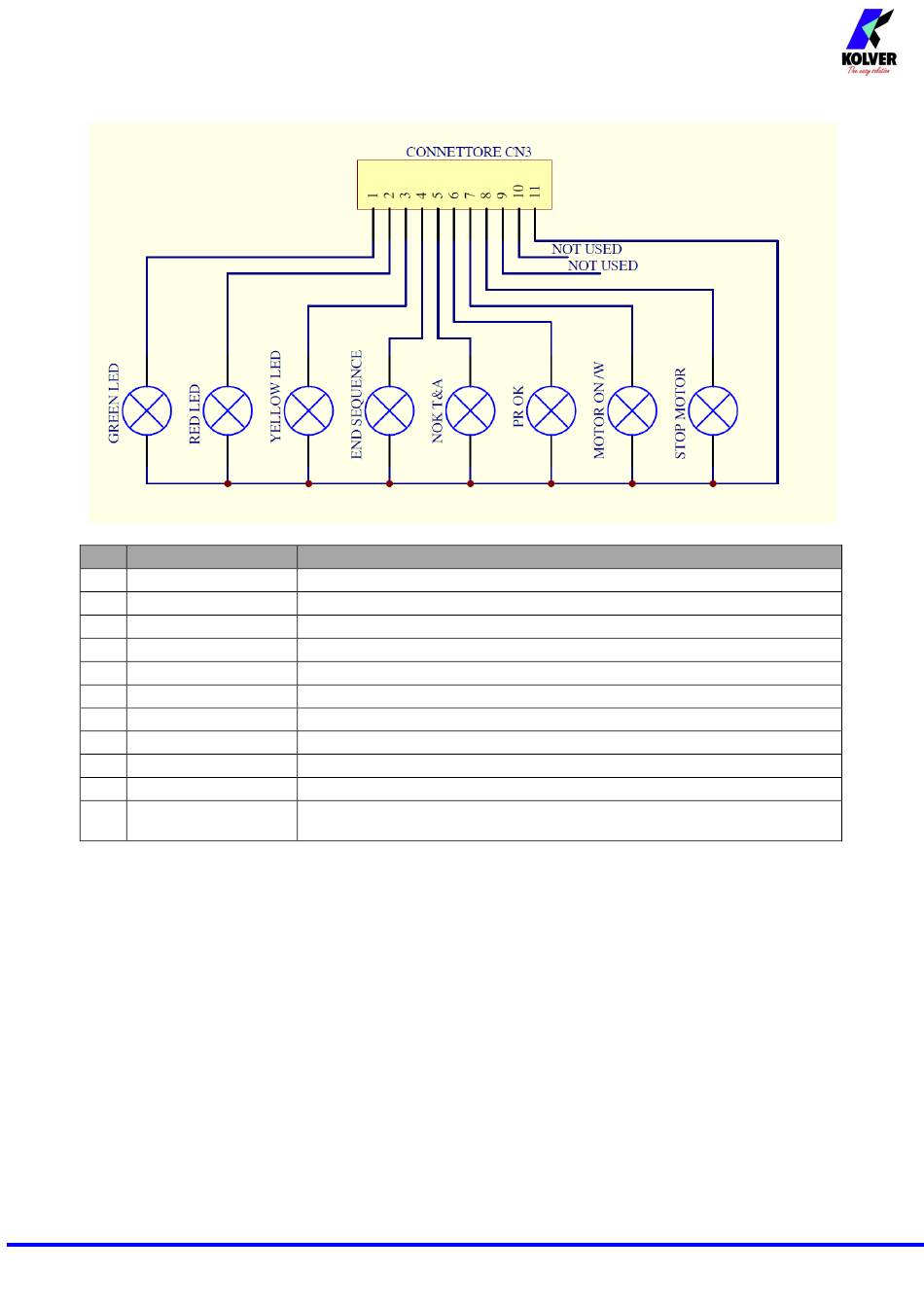

• CN3 CONNECTOR:
All of the following pins are output.
PIN NAME
1 GREEN LED
2 RED LED
3 YELLOW LED
4 SEQUENCE END
5 NOK T&A
6 PR OK
7 MOTOR ON (\W)
8 STOP MOTOR
9 NOT USED
10 NOT USED
11 COM0VDC
Manual EDU 2AE/TOP e EDU 2AE/TOP/TA Rev.0
This signal works in parallel with the green led on the front panel.
This signal works in parallel with the red led on the front panel.
This signal works in parallel with the yellow led on the front panel.
It indicates the end of a sequence, if enabled.
It activates if any angle error occurs.
It activates at the end of each program.
It activates when the motor runs while tightening.
It activates when stop motor is enabled.
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin ( common 0VDC) .
FUNCTION
