Kolver EDU 2AE/TOP Manual page 16

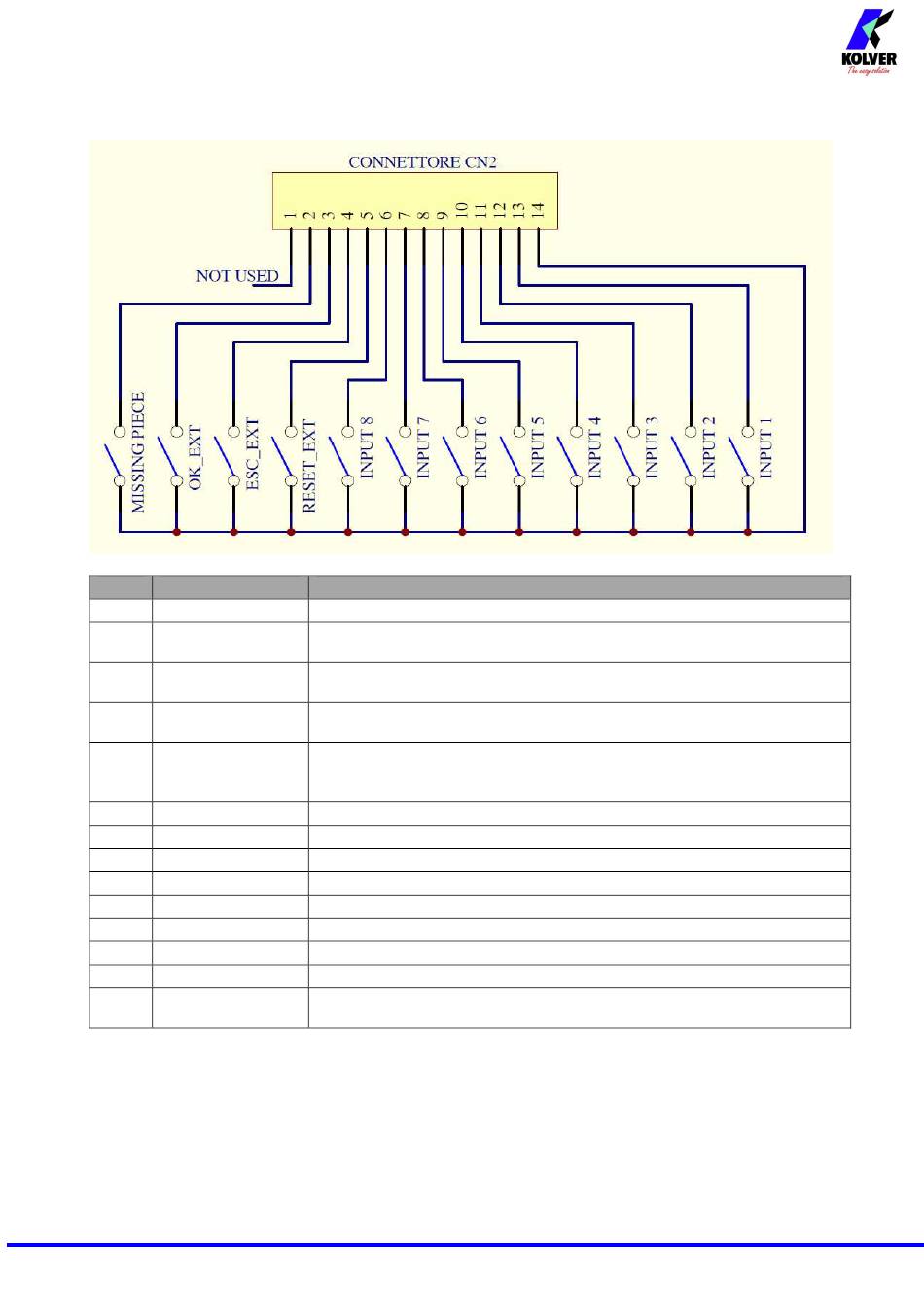

• CN2 CONNECTOR:
All of the following pins are input: make a contact with pin 14 to activate them.
PIN NAME
1 NOT USED
2 MISSING PIECE
3 OK EXT
4 ESC EXT
5 RESET EXT
6 INPUT 8
7 INPUT 7
8 INPUT 6
9 INPUT 5
10 INPUT 4
11 INPUT 3
12 INPUT 2
13 INPUT 1
14 COM0VDC
Manual EDU 2AE/TOP e EDU 2AE/TOP/TA Rev.0
If enabled it stops the motor, enables the error signal and the line "Error
missing piece" is displayed on the status bar
If enabled (see point 4: Keyboard commands, in the option menu), remote
OK key function.
If enabled (see point 4: Keyboard commands, in the option menu), ESC key
function to reser remote errors.
If enabled (see point 4: Keyboard commands, in the option menu), it resets
program or sequence according to the preset function (see point 5: Reset , in
the option menu)
Switch – selection of program 8
Switch – selection of program 7
Switch – selection of program 6
Switch – selection of program 5
Switch – selection of program 4
Switch – selection of program 3
Switch – selection of program 2
Switch – selection of program 1
Common to every input (1-13). Signals have to be enabled making contact
between the desired signal and this pin ( common 0VDC) .
FUNCTION
Pagina 16
