The Panda Generator

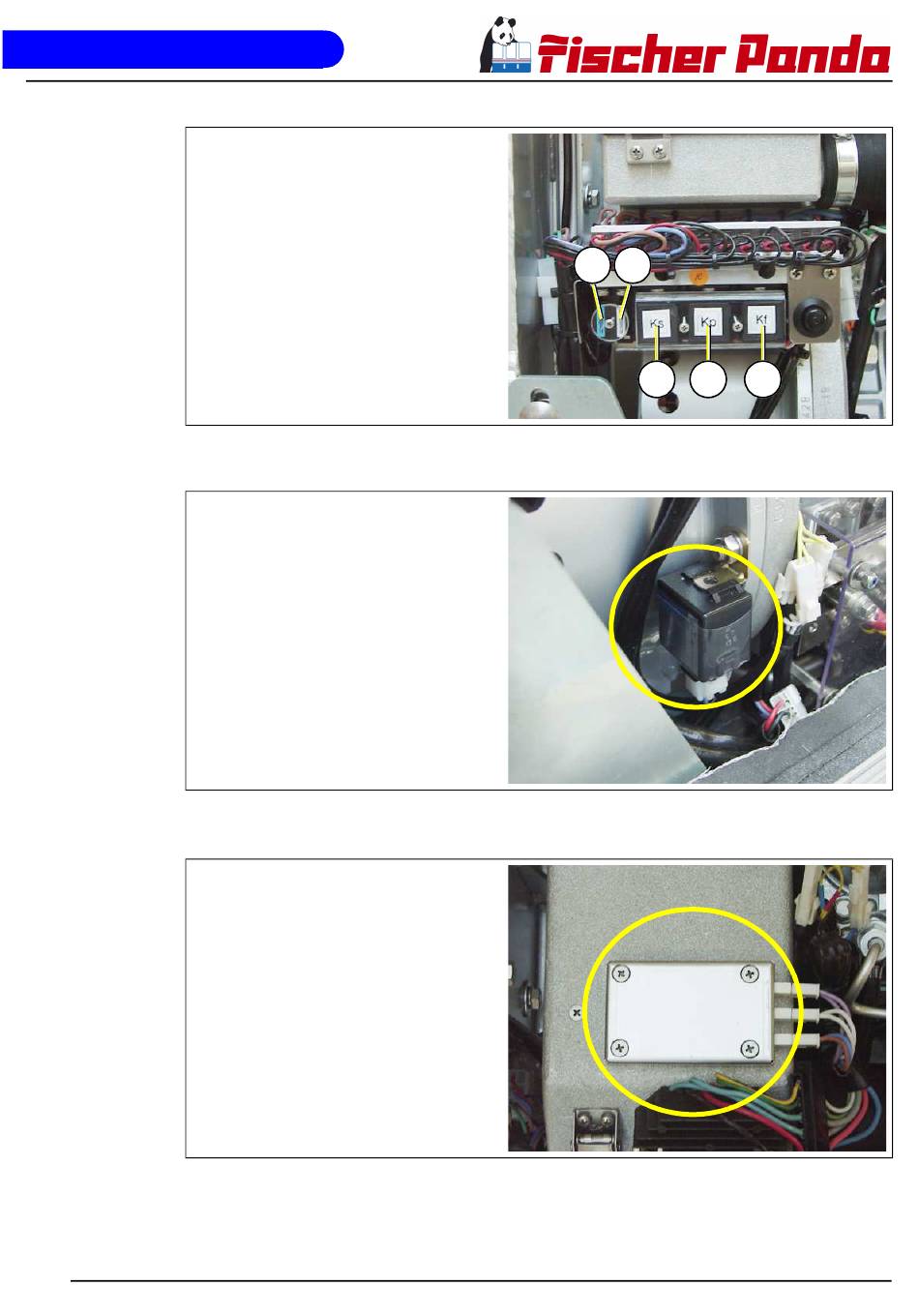

Terminal block for remote control cable
with fuses and power relais
F1 fuse 15A for DC
F2 fuse 25A for starter
Ks relay for starter
F1 F2
K2 relay for glow plugs
K3 relay for fuel pump
Ks K2 K3
Fig. A.3.5-10: Termianl block
Time relay for stop solenoid
Fig. A.3.5-11: Time relay for stop solenoid
Electric starter control unit
Fig. A.3.5-12: Electric starter control unit
