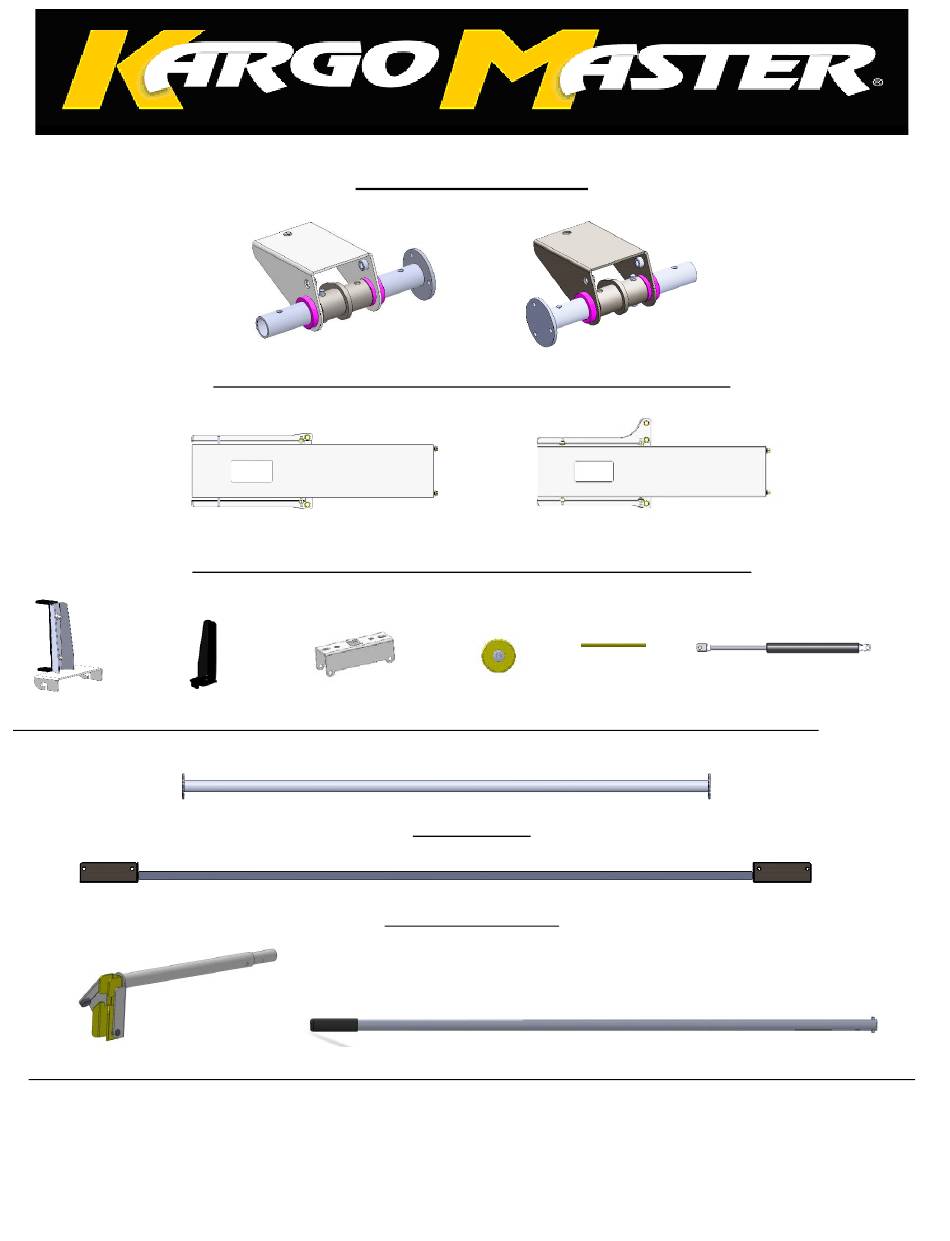

40983 Parts List
Front Torque Tube Pivot Assy.
Rear Torque Tube Pivot Assy.
Front Ladder Pan Assy. (1)
Rear Ladder Pan Assy. (1)
Ladder Hook(2) Ladder Stop(2)
Dampener Mnt Brkt(2)
Roller(4)
Axle(2)
Dampener(2)
Torque Tube (1)
Ladder Pan Stiffener (1)
Handle Assy. (1)
Handle Removable(1)
