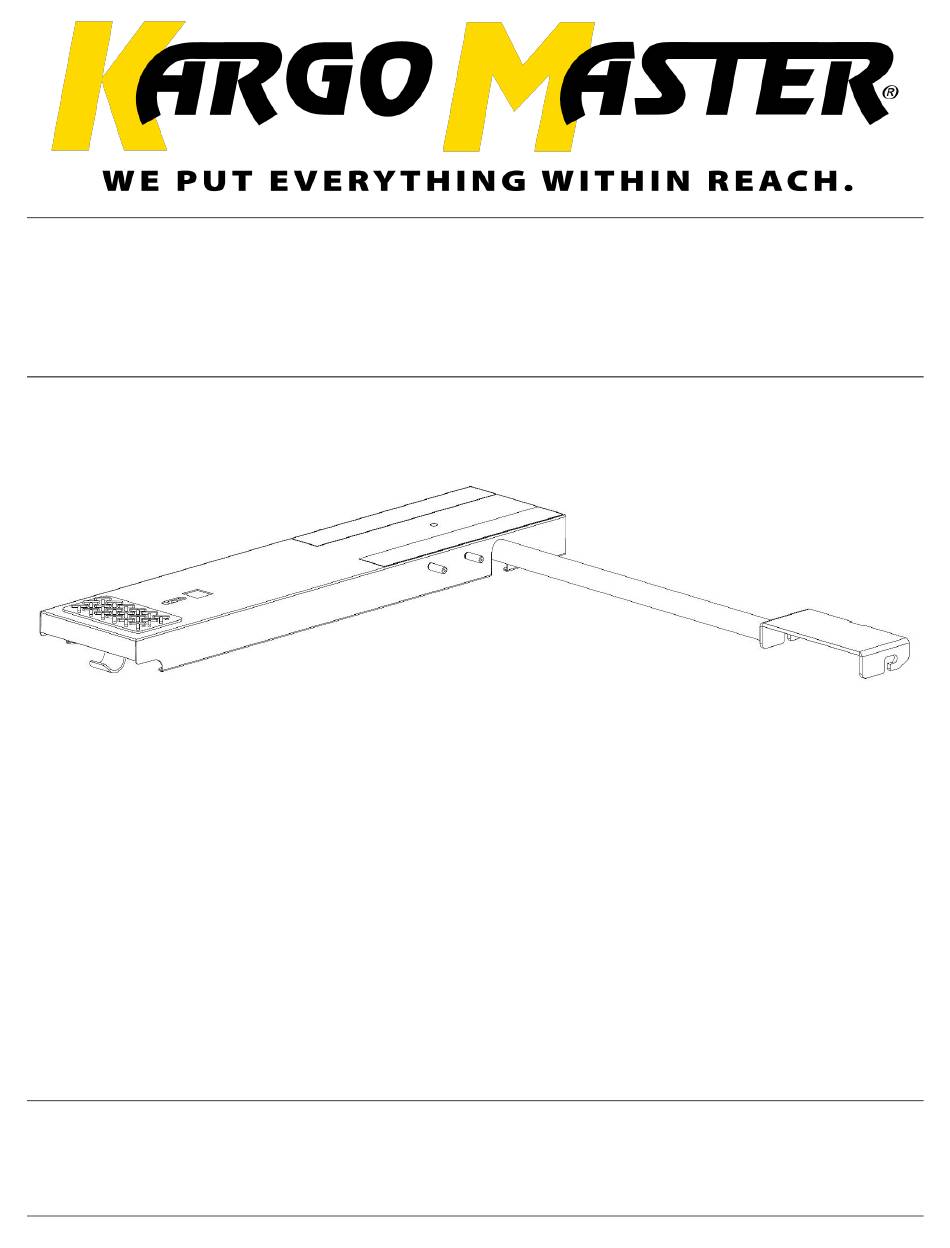

- Page 1 Instruction Guide 40816 Kargo Master Rancho Cordova, CA 95742 800-343-7486 CustomerService@KargoMaster.com 20200406R2 DATE: __________________...
- Page 2 Installation Instructions – 40816 *PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT.* Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products.
- Page 3 Installation Instructions – 40816 Parts List Hardware For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2...
- Page 4 Installation Instructions – 40816 DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF Assembly Using the stiffener connecting bracket (the taller bracket), a 5/16” washer and 5/16” lock nut, loosely attach pan support tube assembly to the 5/16” stud on the bottom of the step ladder pan as shown.
- Page 5 Installation Instructions – 40816 Secure the bracket with 5/16” washer and 5/16” lock nut on both sides. Detach the ladder hook from the original pan. Loosely install onto the new extension kit using the two 5/16” lock nuts and two 5/16”...
- Page 6 Installation Instructions – 40816 Detach the ladder stop from the original pan. Loosely install ladder stop to using the 3/8” x 1” hex bolt from the hardware kit, 3/8” washers, 3/8” lock nut and placing stop so the tab goes into the corresponding rectangular hole.
- Page 7 Installation Instructions – 40816 Using a pencil, mark on the drop down rack support tube and the pan support tube, the location of the ladder pan. Remove the ladder. Ensure the stepladder pan is at the marked position.
- Page 8 Installation Instructions – 40816 Loosely fasten the ladder pan to the support tube, using the support tube connecting bracket (the shorter bracket), a 5/16” washer and a 5/16” lock nut. Loosen the stiffener connecting bracket and slide the extension pan aside.
