Summary of Contents for Kargo Master 4081L

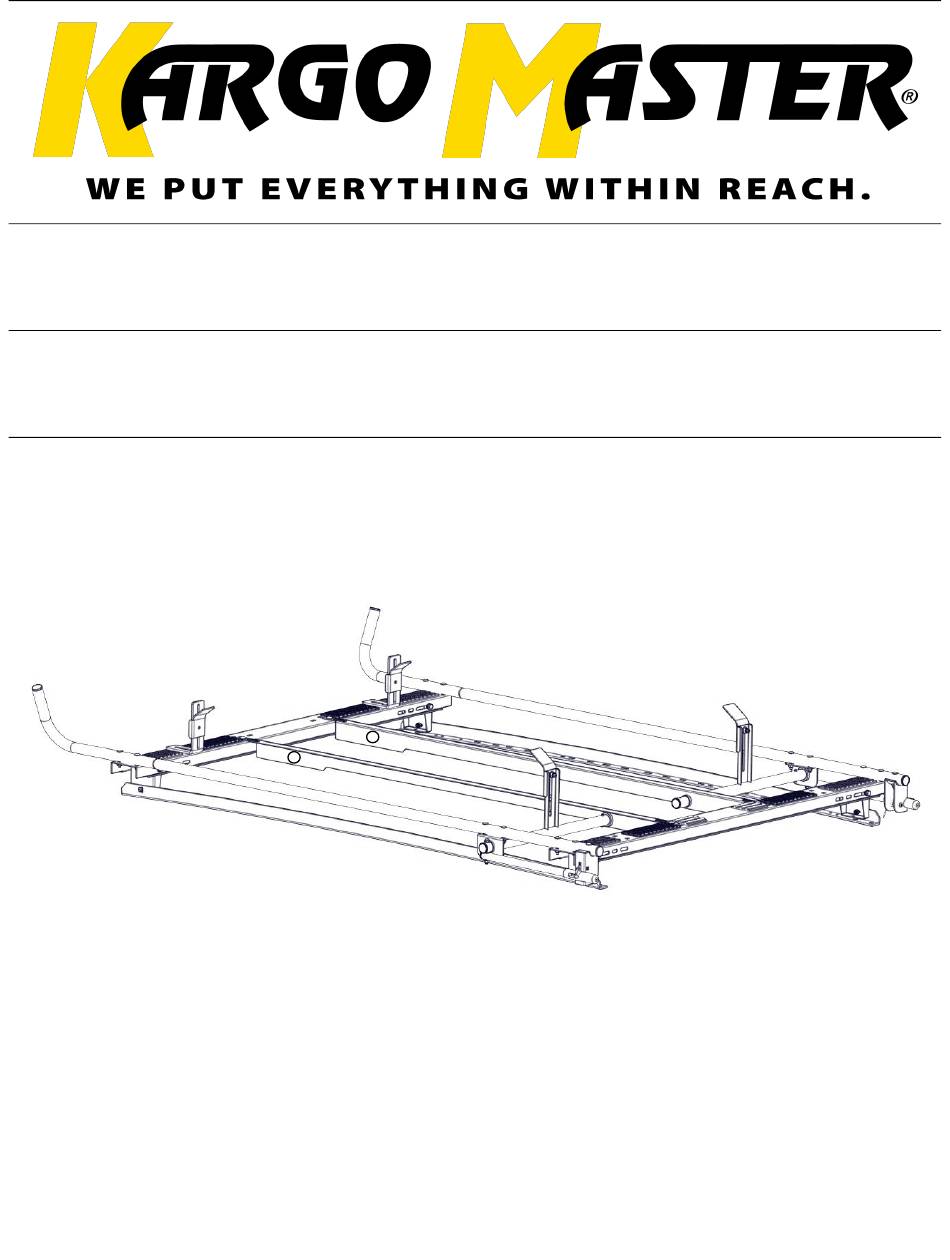

- Page 1 Instruction Guide 4081L...
-
Page 2: Table Of Contents
Instructions – 4081L *PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT* Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. -
Page 3: Parts List
Instructions – 4081L Parts Page 2... -
Page 4: Assembly Hardware
Instructions – 4081L Assembly Hardware (18-4081L) Page 3... -
Page 5: Step 1 - Remove Ladder Stops
Instructions – 4081L Step 1 – Remove Ladder Stops • If havent already done so, remove ladder stops from opposite end of both bows where the clamp and lock is installed. Page 4... -
Page 6: Step 2 - Mount Side Tube
Instructions – 4081L Step 2 – Mount Side Tube • Place a generous amount of E6000 into the tube connection. • Place side tube on top of installed bows. • Have the bend towards the front of the vehicle as shown. -
Page 7: Step 3 - Mount Clamp Tube
Instructions – 4081L Step 3 – Mount Clamp Tube • Place clamp and lock L bracket on top of installed bows. Do not install hardware right now. • Insert plastic bushings into the clamp and lock L bracket and the rotation bar plate installed in Step 2, with flanges as shown so they cannot come out at a later time. - Page 8 Instructions – 4081L • Insert clamp tube into both plastic bushings. • Adjust clamp on clamp tube to fit firmly against your ladder. • Bolt clamp and lock L bracket to bows using 3/8” x 1” carriage bolt, 3/8” flat washer and a 3/8”...
-
Page 9: Step 4 - Mount Handle
Instructions – 4081L Step 4 – Mount Handle • Bolt handle to clamp tube using a 5/16” x 2-3/4” hex head, two 5/16” flat washers, 5/16” nylon washer and 5/16” a nyloc. The nylon washer goes in between the clamp tube and handle. -
Page 10: Step 6 - Mount Ladder Hook
Instructions – 4081L Step 6 – Mount Ladder Hook • Bolt ladder hook bracket to the bow in the orientation shown using a 3/8” x 1” carriage bolt, a 3/8” flat washer and a 3/8” nyloc. Be sure the bracket is square to the bow.
