X-LAB-SPIDER 2
Assembly Guide
VERSION: XLS2-X1
PART #: 5519101-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-LAB-SPIDER 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Torque X-LAB-SPIDER 2

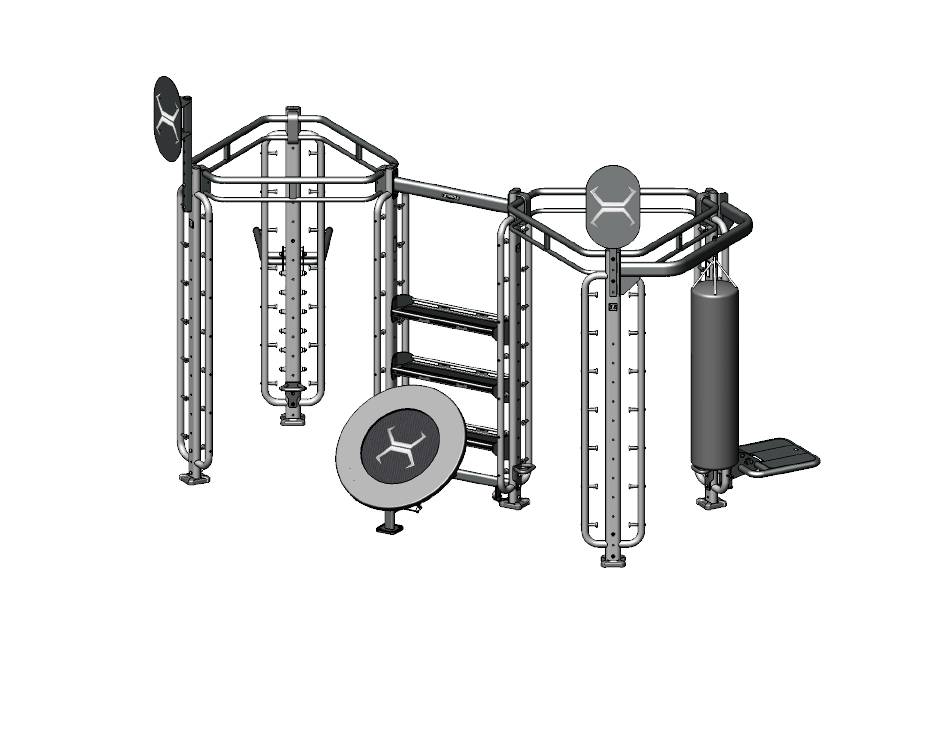

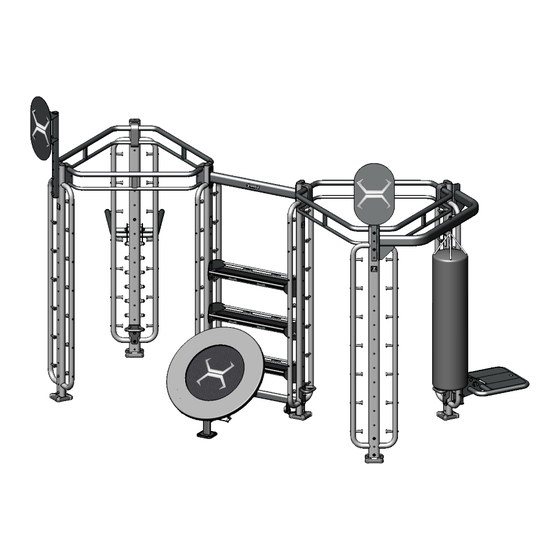

  • Page 1 X-LAB-SPIDER 2 Assembly Guide VERSION: XLS2-X1 PART #: 5519101-A...
  • Page 2 STEP 1 XLAB-BOOT XLAB-301 PAGE 2 NOTE: Repeat this step for remaining XLAB 301 uprights.
  • Page 3 STEP 2 HSA-101 BT-103 1/2" FLAT WASHER (4) 1/2" FLAT WASHER (4) 1/2 X 3-3/4" BOLT (2) 1/2 X 5-3/4" BOLT (2) XLAB-101 1/2" LOCK NUT (2) NOTE: NOTE: Assemble to second and fourth holes. Assemble to first and third holes. 1/2"...
  • Page 4 STEP 3 XLAB-101 1/2" FLAT WASHER (4) 1/2 X 3-3/4" 1/2" LOCK NUT (2) BOLT (2) XLAB-401 XLAB-301 NOTE: CAREFULLY turn machine right side up before proceeding with this step. LOOSELY assemble bolt connections in this step. PAGE 4...
  • Page 5 STEP 4 BT-103 HBA-101 1/2" FLAT WASHER (4) 1/2 X 3-3/4" BOLT (2) 1/2 X 5-3/4" BOLT (2) XLAB-101 1/2" FLAT WASHER (4) NOTE: NOTE: Assemble to second and fourth holes. Assemble to first and third holes. 1/2" LOCK NUT (2) 1/2"...
  • Page 6 STEP 5 1/2" LOCK NUT (2) 1/2" FLAT WASHER (4) 1/2 X 3-3/4" BOLT (2) XLAB-401 XLAB-301 XLAB-101 NOTE: CAREFULLY turn machine right side up before proceeding with this step. LOOSELY assemble bolt connections in this step. PAGE 6...
  • Page 7 STEP 6 XLAB-301 XLAB-301 AT-101 (3) 1/2 X 3-3/4" BOLT (6) 1/2" FLAT 1/2" LOCK WASHER (12) NUT (6) 1/2" LOCK NUT (6) 1/2" FLAT WASHER (12) 1/2 X 3-3/4" BOLT (6) ATTENTION: After this step has been assembled, SECURELY tighten all bolt connections from this step and previous steps.
  • Page 8 STEP 7 XLAB-301 GRT-101 1/2 X 3-3/4" BOLT (2) 1/2" FLAT WASHER (4) 1/2" LOCK NUT (2) SECURELY assemble all bolt connections in this step. PAGE 8...
  • Page 9 STEP 8 XLAB-301 GRT-101 1/2 X 3-3/4" BOLT (2) 1/2" FLAT WASHER (4) 1/2" LOCK NUT (2) SECURELY assemble all bolt connections in this step. PAGE 9...
  • Page 10 STEP 9 XLAB-301 1/2" FLAT WASHER (2) 1/2" LOCK NUT 1/2 X 3-1/4" BOLT XLAB-AA-101 1/2 X 3-1/4" BOLT 1/2"LOCK NUT (2) SU-101 1/2" FLAT WASHER (4) 1/2 X 3-1/2" BOLT SECURELY assemble all bolt connections in this step. PAGE 10...
  • Page 11 STEP 10 XLAB-301 1/2" FLAT WASHER (2) 1/2" LOCK NUT 1/2 X 3-1/4" BOLT XLAB-AA-101 1/2 X 3-1/4" BOLT 1/2" LOCK NUT (2) SU-101 1/2" FLAT WASHER (4) 1/2 X 3-1/2" BOLT SECURELY assemble all bolt connections in this step. PAGE 11...
  • Page 12: Assembled View

    STEP 11 HOOKS PEGS XLAB-DA-101 XLAB-AA-101 ASSEMBLED VIEW WARNING! MAKE SURE THAT BOTH HOOKS OF DIP ATTACHMENT ARE SEATED SECURELY IN GROOVES OF PEGS ON ATTACHMENT PAGE 12 ANCHOR BEFORE PERFORMING ANY EXERCISES.
  • Page 13 STEP 12 ASSEMBLED VIEW HOOKS PEGS XLAB-AA-101 XLAB-PS-101 WARNING! MAKE SURE THAT BOTH HOOKS OF PLYO STEP ARE SEATED SECURELY IN GROOVES OF PEGS ON ATTACHMENT ANCHOR PAGE 13 BEFORE PERFORMING ANY EXERCISES.
  • Page 14 STEP 13 XLAB-301 BR-101 SU-101 1/2 X 3-1/4" BOLT W/NP 1/2 X 3-1/4" 1/2" LOCK BOLT (2) NUT (2) 1/2" FLAT 1/2" LOCK WASHER (5) NUT (2) 1/2" FLAT WASHER (5) 1/2 X 3-1/4" BOLT (2) 1/2 X 3-1/4" BOLT W/NP ATTENTION: COMPLETELY ASSEMBLE BR-101 BEFORE ASSEMBLING IT TO THE XLAB.
  • Page 15: Bracket Cover

    STEP 14 NOTE: MAKE SURE TABS OF BRACKET COVERS ARE INSERTED INTO GROOVES OF BRACKET ON XLAB-101 (6 PLACES) XLAB-101 BRACKET COVER GROOVES TABS XLAB-101 BRACKET COVER (6) PAGE 15...
  • Page 16 ANCHOR STEPS: 1) Position machine in desired location. 2) Trace around the four base plates and the four holes in each base plate. 3) Move machine. 4) Drill anchor holes. Follow instructions on anchor bolt packaging. 5) Vacuum dust out of each anchor hole. 6) Move machine back over anchor holes.
