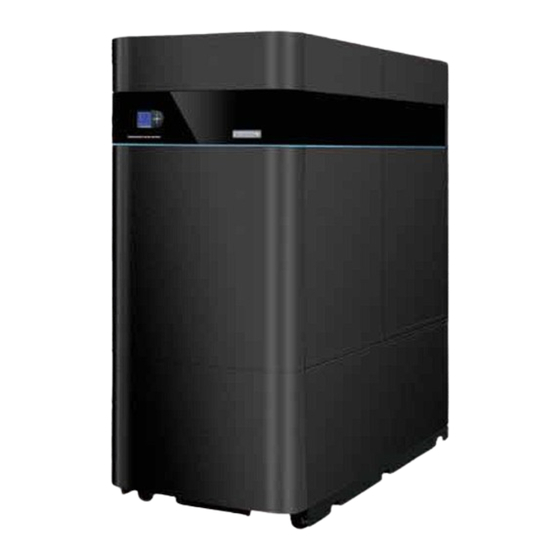

Weil-McLain SVF 1500 Manual

Commercial condensing gas-fired water boilers
Hide thumbs Also See for SVF 1500:
Table of Contents

Advertisement

Quick Links

Series 1
Models 1500 - 3000
Commercial Condensing
as- red a er oilers
Boiler Manual
Th is manual must only be used by a qualifi ed heating installer/service technician. Read all instructions, including this manual and all other
information shipped with the boiler, before installing. Perform steps in the order given. Failure to comply could result in severe personal injury,
death or substantial property damage.
DO NOT operate the boiler during construction
unless combustion air is piped to the boiler air inlet from a dust-free and contaminant-
free area. Th e boiler can be severely damaged by drywall dust or other combustion air contaminants.
Part number 550-100-250/0819
