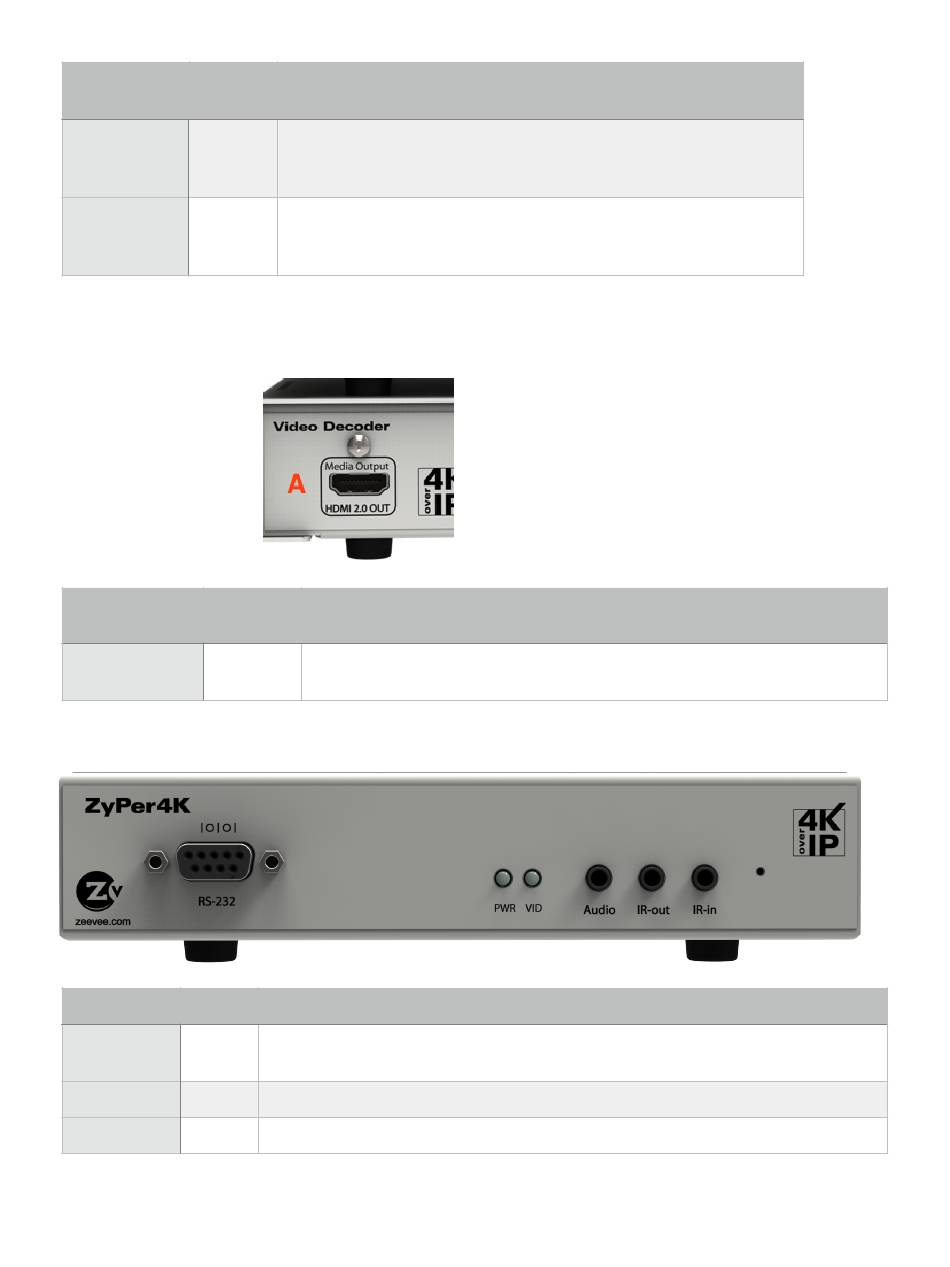

ZeeVee ZyPer4K User Manual page 6

ZyPer4K
Port Name Index
Utility B
Network
Ground Lug C
Port Name Index
HDMI Output
A
Port Name Port Name Index
RS 232 Port A
LED PWR B
LED VID C
Z4K Dante User Manual
Definition
10/100/1000Base-T Ethernet port. Used for general purpose
device attachment to network. Traffic will be switched on to
media network. (Not available on models with Dante
For equipotential referencing of the box, this lug may be
connected the environmental ground using a customer-supplied
ground lead.
Definition
A HDMI 2.0 Output port. Capable of up to 4K60 4:4:4 with embedded
audio and HDCP2.2 encryption.
Definition
RS232 Control Port for sending and receiving side-band serial traffic to/from
encoders as directed by ZyPer Management Platform. (ZMP)
LED illuminated when unit is powered
LED Illuminated when active video is being processed
Page
D E
B C
3 of 18
transmitter)
F
G
