NOTEPAD

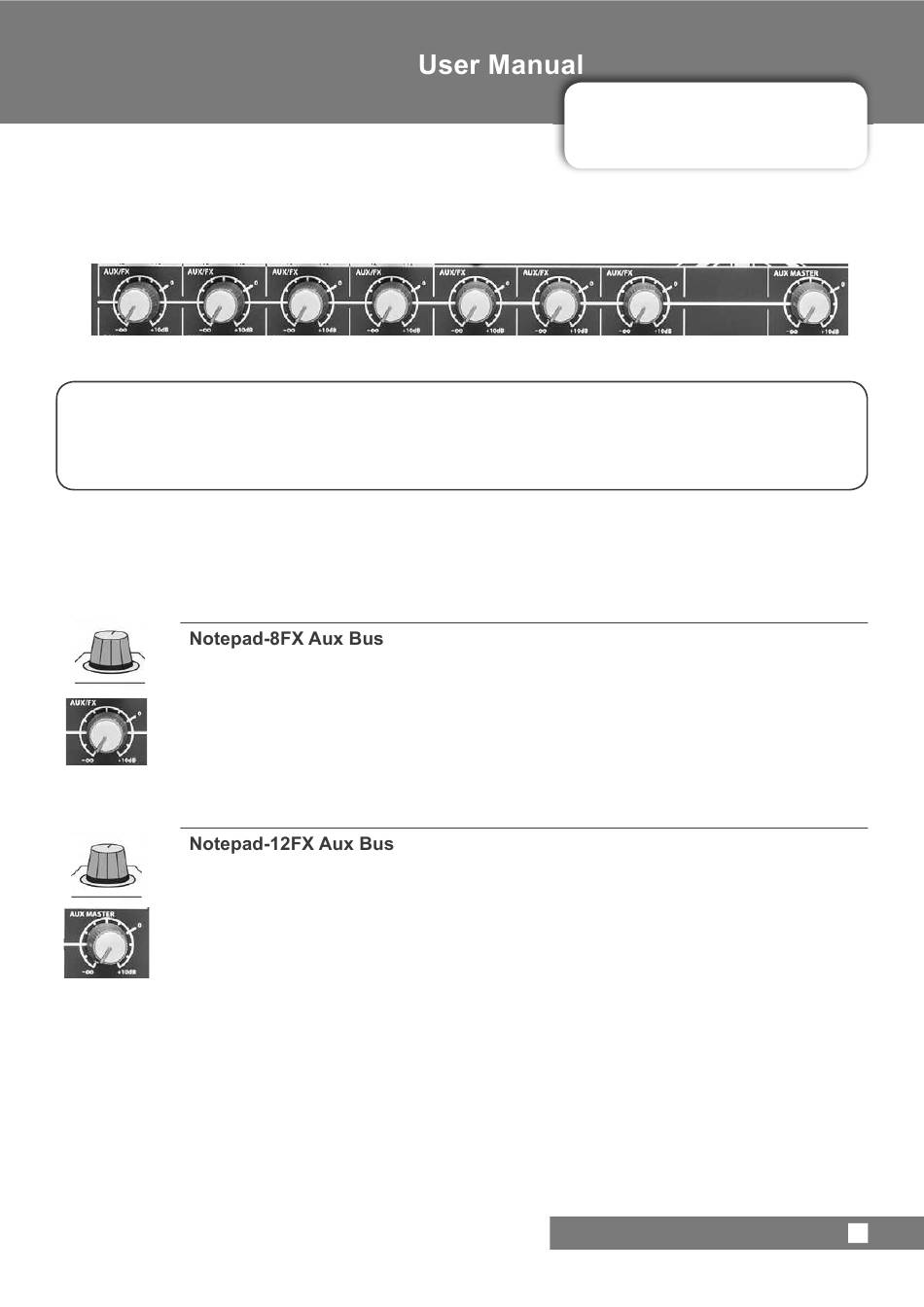

CHANNEL CONTROLS > AUX MASTER CONTROLS
The Aux Master control determines the output level of a whole Aux Master mix (the sum of all
Aux/FX contributions)
On Notepad 8FX, this control is in the signal path before the Lexicon effects processing so serves
as a master effect send control and therefore an effects wet/dry control as the 8FX does not have
a dedicated FX return channel. The effects are returned to the master mix at unity.
On Notepad 12FX, the aux bus is sent to the Lexicon effects processing before the aux master so
while the Aux/FX mix is the same, the overall level of the two destinations - aux output and effects
processing are independent.
When the OUTPUT TYPE of the aux output is set to STEREO PHONES, this control additionally
serves as a headphone level control.
5, 8FX, 12FX

5.2: AUX SEND OUTPUT

5.2: AUX SEND OUTPUT
