Summary of Contents for Harman Martin JEM ZR Series

  • Page 1 READ AND SAVE THESE INSTRUCTIONS user manual...

  • Page 2: Dimensions/Legal

    Dimensions/Legal All dimensions are in millimeters...
  • Page 3 ©2021 HARMAN PROFESSIONAL DENMARK ApS. All rights reserved. Features, specifications and appearance are subject to change without notice. HARMAN PROFESSIONAL DENMARK ApS and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this document.

  • Page 4: Table Of Contents

    Contents Dimensions/Legal ........................2 Contents ............................ 4 Safety information ........................5 Product overview ........................8 Product description ........................ 8 Features at a glance ......................8 Product details ........................9 Quick Start ..........................12 Setting up ..........................12 Making fog ..........................12 Installation and setting up ......................13 Location ..........................13 AC power ..........................13 Setting up ..........................14...

  • Page 5: Safety Information

    Safety information Read the safety precautions in this manual before installing, operating or servicing this product. The following symbols are used to identify important safety information: Caution! Safety Caution! Burn Danger! Caution! Fire hazard. Risk of hazard. Hot Hazardous hazard. severe injury or surface.
  • Page 6 • Do not spill fluid over or inside the machine. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, take the machine out of service and contact Martin Service and Support for advice.
  • Page 7 • Check that all external covers and rigging hardware are securely fastened. • Block access below the work area and work from a stable platform whenever installing, servicing or moving the machine. • Do not operate the machine with missing or damaged covers or shields. •...

  • Page 8: Product Overview

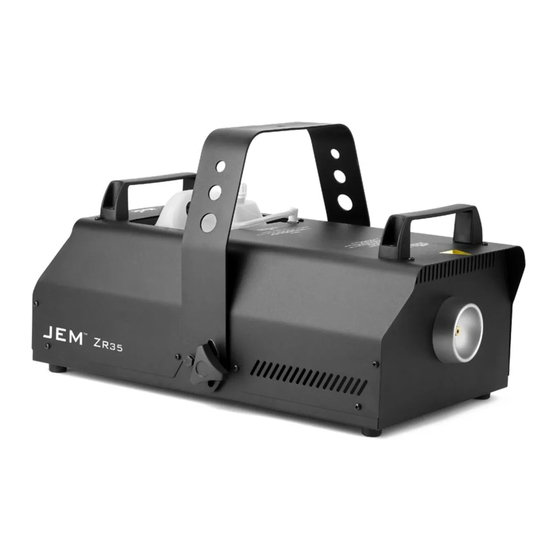

    Product overview P r o d u c t d e s c r i p t i o n The JEM ZR25, ZR35 and ZR45 provide a uniquely flexible and convenient solution to a wide range of fog requirements whether permanently installed or taken on the road.

  • Page 9: Product Details

    P r o d u c t d e t a i l s Hanging Bracket ZR25 Fluid Reservoir Fluid pipe connection Integrated Digital Remote Control DMX input Mains fuse and output Mains power Mains power switch connector If suspending overhead: Loop safety cable under hanging bracket and secure...
  • Page 10 ZR35 Hanging Bracket Fluid Reservoir Fluid pipe connection Integrated Digital Remote Control Mains power DMX input switch and output Mains fuse Mains power connector If suspending overhead: Loop safety cable under hanging bracket and secure Fog output nozzle WARNING! High temperature vapour and surfaces...
  • Page 11 ZR45 Hanging Bracket Fluid Reservoir Fluid pipe connection Integrated Digital Remote Control Mains power DMX input switch and output Mains fuse Mains power connector If suspending overhead: Loop safety cable under hanging bracket and secure Fog output nozzle WARNING! High temperature vapour and surfaces Product overview...

  • Page 12: Quick Start

    Quick Start You are no doubt eager to switch on the machine and try it out by making a lot of fog. This section tells you how to do that. However, please also make the time to read the safety and servicing instructions in the remainder of this manual. S e t t i n g u p Locate the machine in a suitably large area with nothing in front of the fog output.

  • Page 13: Installation And Setting Up

    Installation and setting up DANGER! DO NOT operate the machine until you have read and observed all the precautions listed under “Safety information” on page 5. L o c a t i o n The JEM ZR series machines are designed to be located on the floor or may be suspended using the hanging bracket.

  • Page 14: Setting Up

    Before connecting the machine to power, verify that the AC supply is adequately dimensioned for the current draw of the machine. 1200W 240V EU / 1000W 120V US 1550W 240V EU / 1450W 120V US 2100W 240V EU / 1800W 120V US Check that the local AC voltage is appropriate, as indicated on the machine’s serial number label.

  • Page 15: Control Settings

    Control settings O v e r v i e w The Integrated Digital Remote Control on the rear of the machine allows you to configure it using option menus. The Integrated Digital Remote Control may be removed from the machine and used at a distance by removing the two hand-wheel bolts either side of the display.

  • Page 16: Setting The Timer

    If you want to temporarily change the fog density, do not press ENTER. The fog setting will go back to its stored value next time the machine is powered up. This applies to all options. S e t t i n g t h e T i m e r The timer function can be utilized to set the machine’s output to automatically cycle between an 'On' time interval and an 'Off' time interval.

  • Page 17: Setting The Host-Client Link Mode

    S e t t i n g t h e h o s t - c l i e n t l i n k m o d e It is possible to control several machines from one digital remote control. The machine with the remote plugged into it is set as the Host.
  • Page 18 The factory settings are: option setting FOG LEVEL TIMER ON 10 seconds TIMER OFF 20 seconds RUN MODE STANDBY BACK LIGHT NORM LINK MODE RECEIVE1C PRIME TEMPERATURE* NORM *ZR45 Only...

  • Page 19: Dmx Control

    DMX control O v e r v i e w DMX is a digital control protocol widely used in entertainment and architectural lighting. Any DMX controller meeting the DMX-512A standard, may be used to control the machine. A controller that is RDM compliant will be able to program and monitor some settings of the machine remotely.

  • Page 20: Setting Options By Rdm

    2 Channel Mode (RECEIVE 2C) Channel DMX value Function Macro description Default range value 0-12 Idle range None Fog output 13- 240 Output 0- level 100% 241 -255 Output 100% 0-50 No function Control 51-100 Prime Primes the machine functions 101-150 No function 151-200...
  • Page 21 RDM functions As a minimum, the fixture supports the following RDM functions: Device discovery DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE Device management DEVICE_INFO  IDENTIFY_DEVICE   DMX_START_ADDRESS   SOFTWARE_VERSION_LABEL  SUPPORTED_PARAMETERS  PARAMETER_DESCRIPTION  COMMS_STATUS  QUEUED_MESSAGE  STATUS_MESSAGES  DEVICE_MODEL_DESCRIPTION ...

  • Page 22: Approved Fog Fluid Types

    Approved Fog Fluid types The JEM ZR series machines must only be used with the Martin fog fluids listed below. Martin supplies high quality fog fluids that are based on ultra-pure deionized water. No other fluid is suitable for use. R U S H &...

  • Page 23: Approved Discontinued Fluids

    DANGER! The JEM ZR series machines can run safely only on the specific fog fluids they are designed for. Use ONLY the Martin fog fluids designated in this manual. NEVER use any other type of fluid, or toxic gas may be produced. You will probably also cause damage to the machine that will invalidate the product warranty.

  • Page 24: Basic Service

    Basic service Before servicing the JEM ZR series machines, read and observe all the precautions listed in “Safety information” on page 5. Any service not described in this section must be carried out by a Martin authorized service technician. To find your local Martin service center visit www.martin.com/en-US/support C l e a n i n g Excessive dust, fog fluid, and dirt build-up will degrade performance and cause...

  • Page 25: Fuse Replacement

    S t o r a g e P r o c e d ur e: Perform the above cleaning and preventative maintenance procedure. After procedure is completed simply run the machine until all fluid has been visibly purged from the fluid inlet tubing to prevent leaks and seepage. F u s e r e p l a c e m e n t The main fuse for the machine is located adjacent to the power inlet on the rear panel.

  • Page 26: Troubleshooting

    Troubleshooting Problem Probable cause(s) Suggested remedy Machine not at operating Wait until HEAT message temperature no longer shown Machine will not produce FOG option set to 0 Increase setting fog when remote control set Machine in timer mode and to CONTINUOUS or fog Increase setting TIMER ON set to 0 button pressed...

  • Page 27: Status Messages

    Status messages message reason The heaters are Off, the unit is shut down. HEAT The unit is heating up to operating temperature. The heater is at operating temperature, but Fog is not READY turned on (RUN set to STANDBY). The heater is at operating temperature and the unit is under DMX control.

  • Page 28: Technical Specifications

    Technical Specifications P h ys i c a l ZR25 Length ..................485 mm (19.1 in.) Width ................... 335 mm (13.2 in.) Height .................... 242 mm (9.6 in.) Height with hanging bracket ............333mm (13.2 in.) Weight, dry ................... 11.2 kg (24.7 lb.) Weight, filled .................
  • Page 29 C o n s t r u c t i o n Housing ..................Steel & aluminum Hanging bracket....... Integrated yoke with safety attachment point Color ....................... Black Heat exchanger, ZR25 ..........1150 W, thermally protected Heat exchanger, ZR35 ..........1500 W, thermally protected Heat exchanger, ZR45 EU .........2000 W, thermally protected Heat exchanger, ZR45 US .........1800 W, thermally protected Fluid pump, ZR25, ZR35 ........
  • Page 30 Ap p r o va l s EU Model EU safety: .................... EN 60 335-1 EU EMC: ................EN 61000-6-3, EN 62233 EU Immunity: ..................EN 61000-6-1 Australia/NZ (pending) ..................RCM United Kingdom ..................... UKCA US Model US safety ...................... UL 998 Canada safety ................
  • Page 31 Service Tools Epsilon 5 AVR Programmer .............. P/N 50502004 Temperature Calibration Box ............P/N 92620005 *Various sizes available – contact your dealer or see martin.com for details. O r d e r i n g i n f or m at i o n JEM ZR25, US ...................
  • Page 32 www.martin.com...
