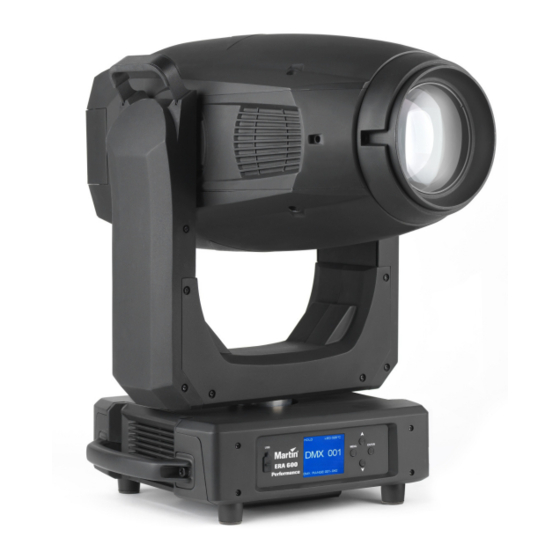

Harman Martin ERA 600 Performance User Manual
  1. Manuals
  2. Brands
  3. Harman Manuals
  4. DJ Equipment
  5. Martin ERA 600 Performance
  6. User manual

Harman Martin ERA 600 Performance User Manual

Hide thumbs Also See for Martin ERA 600 Performance:
Table of Contents

Advertisement

Quick Links

600
ERA
Performance
600
ERA
Profile
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Martin ERA 600 Performance and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Martin ERA 600 Performance

Summary of Contents for Harman Martin ERA 600 Performance

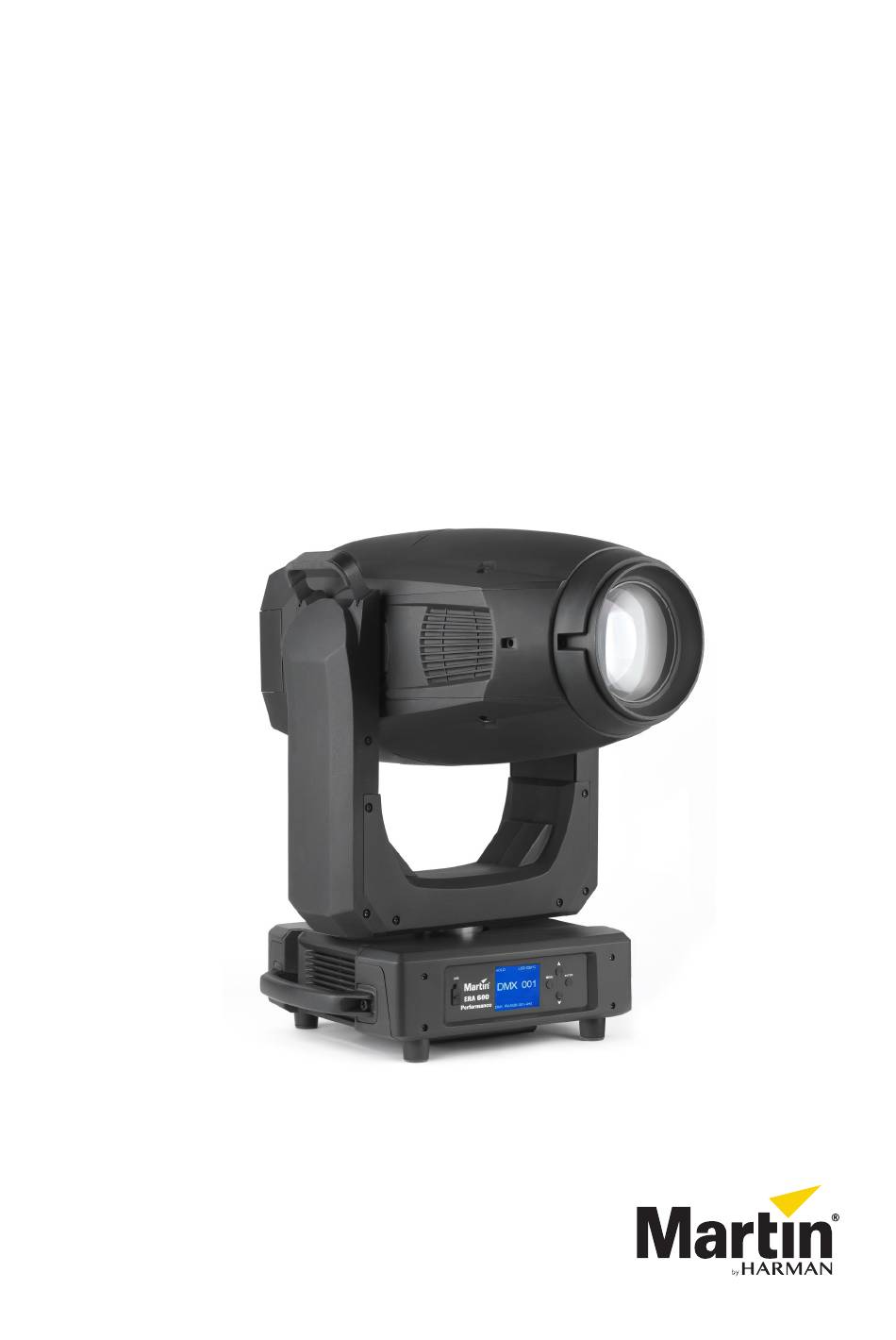

  • Page 1 Performance Profile User Guide...
  • Page 2 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.

  • Page 3: Table Of Contents

    Contents Introduction ............... . 4 Operating the fixture .

  • Page 4: Introduction

    Introduction Warning! Before installing, operating or servicing the ERA 600 Performance / Profile lighting fixture, read the latest version of the fixture’s Safety and Installation Manual, paying particular attention to the Safety Precautions section. The Safety and Installation Manual is supplied with the fixture. The latest version is also available for download from the ERA 600 Performance / Profile area of the Martin®...

  • Page 5: Effects

    Effects This section gives details of the effects available in the ERA 600 Performance / Profile. See the DMX protocol table on page 18 for a list of channels and commands used to control the effects via DMX. Where fine control is available, the main control channel sets the first 8 bits (the most significant byte or MSB), and the fine channels set the second 8 bits (the least significant byte or LSB) of the 16-bit control byte.

  • Page 6: Rotating Gobos

    Rotating gobos The ERA 600 Performance has one rotating gobo wheel (Gobo Wheel 1) and a rotating framing effect, while the ERA 600 Profile has two rotating gobo wheels (Gobo Wheel 1 and Gobo Wheel 3) and no framing effect. The gobos on Gobo Wheel 3 in the ERA 600 Profile have the same dimensions and specifications as those on Gobo Wheel 1 and are therefore interchangeable, but the goboholders on the two gobo wheels are slightly different and are not interchangeable.
  • Page 7 Gobo Wheel 3 (ERA 600 Profile) Gobo Wheel 3 in the ERA 600 Profile has seven rotating gobos that can be selected, indexed (positioned at an angle), rotated continuously and shaken (bounced). The gobo wheel itself can also be scrolled continuously or shaken.

  • Page 8: Static Gobos

    Static gobos The static gobo wheel in the ERA 600 Performance / Profile has eight static gobos. The static gobo wheel can be scrolled continuously or shaken. Gobo selection and control type (indexing, continuous gobo rotation, gobo shake or continuous gobo wheel scrolling) are selected on channel 6. Depending on what is selected on this channel, the gobo indexing angle or gobo rotation speed are set on channels 7 and 8, where 16-bit control is available.

  • Page 9: Animation Wheel

    Animation wheel The ERA 600 Performance / Profile is supplied with the “Radial Breakup” animation wheel installed. The wheel can be used to add animation effects to gobo projections. When using gobo animation, adjust the fixture’s focus to obtain the most realistic results.

  • Page 10: Control Panel

    Control panel You can configure individual fixture settings (such as the fixture’s DMX address), read out data, execute service operations and view error messages using the fixture’s backlit graphic display and control panel. HOLD LED: 029°C MENU ENTER DMX 001 DMX RANGE: 001-041 A - USB port D - Up button...
  • Page 11 Key combination shortcuts The following control panel key combinations have special functions: • Hold the MENU button pressed in – opens a shortcut menu with two menu items: - RESET ALL - ROTATE DISPLAY • Hold the MENU button pressed in and press the UP button – makes the fixture carry out a reset. •...

  • Page 12: Control Options

    Control options The ERA 600 Performance / Profile accepts a DMX-512A data signal. DMX setup The DMX address, also known as the start channel, is the first channel used to receive instructions from the controller. For independent control, each fixture must be assigned its own control channels. If you give two fixtures of the same type the same address, they will behave identically.
  • Page 13 Standard RDM Parameter IDs allowed allowed RDM parameter IDs Notes Network Management DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE Status Collection  QUEUED_MESSAGE  STATUS_MESSAGES  STATUS_ID_DESCRIPTION  CLEAR_STATUS_ID RDM Information  SUPPORTED_PARAMETERS Product information  DEVICE_INFO  DEVICE_MODEL_DESCRIPTION  MANUFACTURER_LABEL   DEVICE_LABEL ...

  • Page 14: Fixture Setup

    Fixture setup The onboard control panel (see “Effects” on page 5) and the Control / settings DMX channel let you configure the fixture via a range of fixture settings. Fixture ID The fixture lets you set a four-digit ID number to ease identification of the fixtures in an installation. When a fixture is powered on for the first time, it displays its DMX address by default.

  • Page 15: Factory Defaults

    • COOLING MODE lets you select between three cooling fan options: - REGULATED FANS optimizes cooling fan operation for light output. It controls fixture temperature by varying cooling fan speed up to the maximum speed available and does not limit light intensity provided that the ambient temperature does not exceed the specified maximum of 40°...

  • Page 16: Dmx Signal Monitoring

    ERA 600 Profile fixture type. It will adapt its DMX control functions to match the Gobo Wheel 3 module. The FIXTURE TYPE readout lets you check which module is installed (or check that the fixture has updated itself after you have carried out a conversion). DMX signal monitoring The DMX LIVE menu lets you scroll through all the fixture’s DMX channels and display the DMX values from 0 - 255 that are being received on each channel.

  • Page 17: Adjusting Settings Via Dmx

    Adjusting settings via DMX Certain fixture settings and parameters can be adjusted from the DMX controller on the Fixture control/settings channel. Commands sent on the fixture control channel override any settings entered in the fixture’s onboard control menus. To help you avoid accidentally applying a setting that may disrupt a light show, for example, the commands must be held for a certain time before they are applied.

  • Page 18: Dmx Protocols

    DMX protocols This chapter lists the DMX control commands implemented in firmware version 2.3.0. The fixture recognizes automatically its physical configuration (Performance or Profile) and adapts its DMX protocol to match the correct fixture type. ERA 600 Performance Fade Default Channel DMX Value Function...
  • Page 19 Fade Default Channel DMX Value Function type value Color wheel Indexing Solid colors 0 - 5 Open 6 - 11 Color 1 (Red) 12 - 17 Color 2 (Deep Blue) 18 - 23 Color 3 (Deep Green) 24 - 29 Color 4 (Lavender) 30 - 35 Color 5 (Deep Orange)
  • Page 20 Fade Default Channel DMX Value Function type value Gobo wheel 2 (static gobos) Gobo selection 0 - 6 Open 7 - 13 Gobo 1 (Ray Flowers) 14 -20 Gobo 2 (Brick It) 21 - 27 Gobo 3 (Happy) 28 - 34 Gobo 4 (Mikado) 35 - 41 Gobo 5 (Dots)
  • Page 21 Fade Default Channel DMX Value Function type value Framing blade 2: angle Angle – 0 -126 Fade Parallel 127 - 128 Angle + 129 - 255 Framing blade 3: position Fade Out → in 0 - 255 Framing blade 3: angle Angle –...

  • Page 22: Era 600 Profile

    ERA 600 Profile Fade Default Channel DMX Value Function type value Strobe/shutter effect 0 - 19 Shutter closed 20 - 24 Shutter open Strobe, slow → fast 25 - 64 65 - 69 Shutter open Opening pulse, slow → fast 70 - 84 85 - 89 Shutter open...
  • Page 23 Fade Default Channel DMX Value Function type value Gobo wheel 1 (rotating gobos) Gobo selection 0 - 6 Open 7 - 13 Gobo 1 (Ray Brush) 14 -20 Gobo 2 (Too Many Doctors) 21 - 27 Gobo 3 (Limbo) 28 - 34 Gobo 4 (Light Lines) 35 - 41 Gobo 5 (Dots in Space)
  • Page 24 Fade Default Channel DMX Value Function type value Gobo wheel 3 (rotating gobos) Gobo selection 0 - 6 Open 7 - 13 Gobo 1 (4D Cone) 14 -20 Gobo 2 (Bar) 21 - 27 Gobo 3 (Spidey 1) 28 - 34 Gobo 4 (Spiral) 35 - 41 Gobo 5 (Triangle)
  • Page 25 Fade Default Channel DMX Value Function type value Tilt (MSB) Up → down 0 - 65535 Fade 32768 Tilt, fine (LSB) Fixture control/settings (hold for number of seconds indicated to activate) No function 0 - 9 10 - 14 Reset entire fixture – 5 sec. No function Reset color –...

  • Page 26: Control Panel Menus

    Control panel menus ERA 600 Performance / Profile firmware version 2.3.0. Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) DMX address (default address = 1). The DMX address range is limited so that the DMX SETUP DMX ADDRESS 1 –...
  • Page 27 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Display number of hours fixture has been 0 ... XXXH POWER ON TIME powered on since manufacture (not user-resettable) Display number of hours LEDs have been 0 ...

  • Page 28: Service And Display Messages

    Service and display messages The ERA 600 Performance / Profile monitors its own performance and has a diagnostic error recognition system that lets it display messages with information about any problem detected. If the fixture has a status message to report, a red warning triangle appears in the bottom right of the control panel display.
  • Page 29 Code Notes HeadFan2 Head cooling fan 2 error HeadTemp Head temperature warning Magenta Magenta color flag error Pan error Prism1 Prism 1 error Prism1Rot Prism 1 rotation error Prism2 Prism 2 error Prism2Rot Prism 2 rotation error RotGobo Rotating gobo wheel error Temp LED temperature error Tilt...
  • Page 30 www.martin.com...
