NOTEPAD

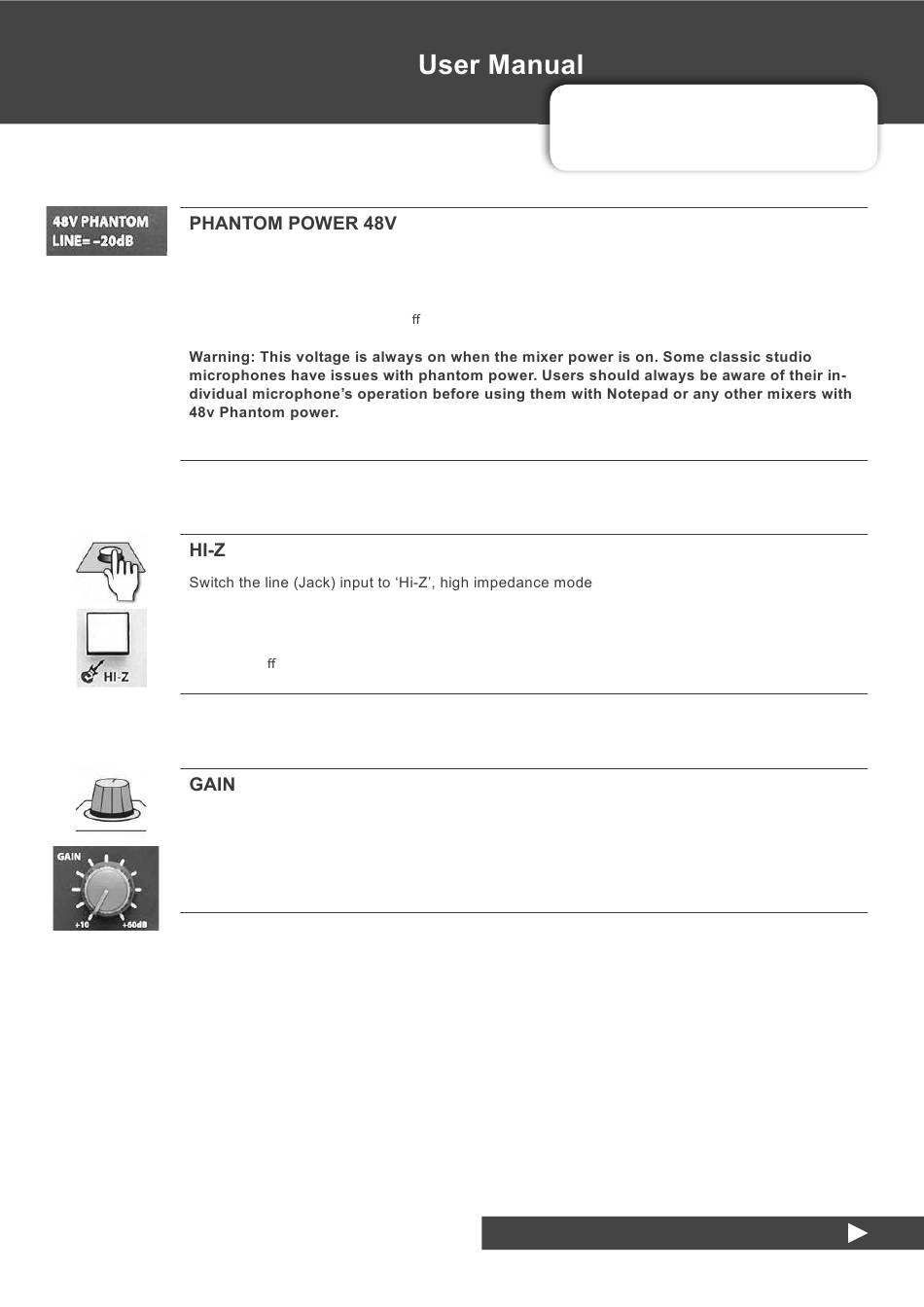

CHANNEL CONTROLS > MONO INPUT CONTROLS

DC voltage of 48V to all microphone inputs

PHANTOM POWER 48V is a DC voltage applied to all microphone inputs. This is for powering condenser micro-

phones and it is sometimes used to power active circuitry in other devices, such as DI boxes. Balanced dynamic

microphones (for example) will be una ected.

Activating Hi-Z by pressing the Hi-Z button presents a much higher load impedance to the source in order to match

high-impedance sources such as guitar, bass and other instrument pick-ups that are connected directly to the

console. Using the standard impedance mode with the button unpressed on high impedance sources will have a

detrimental e ect on the high frequency response.

Adjust the input gain

The Gain range is 10dB to 60dB. It is advisable to listen to the channel and to check the channel peak LED while

increasing gain to avoid distortion due to clipping. Before plugging in a new source, turn the gain down to avoid

sudden loud noises.

5, 8FX, 12FX

5.1.1: MONO INPUT CONTROLS
