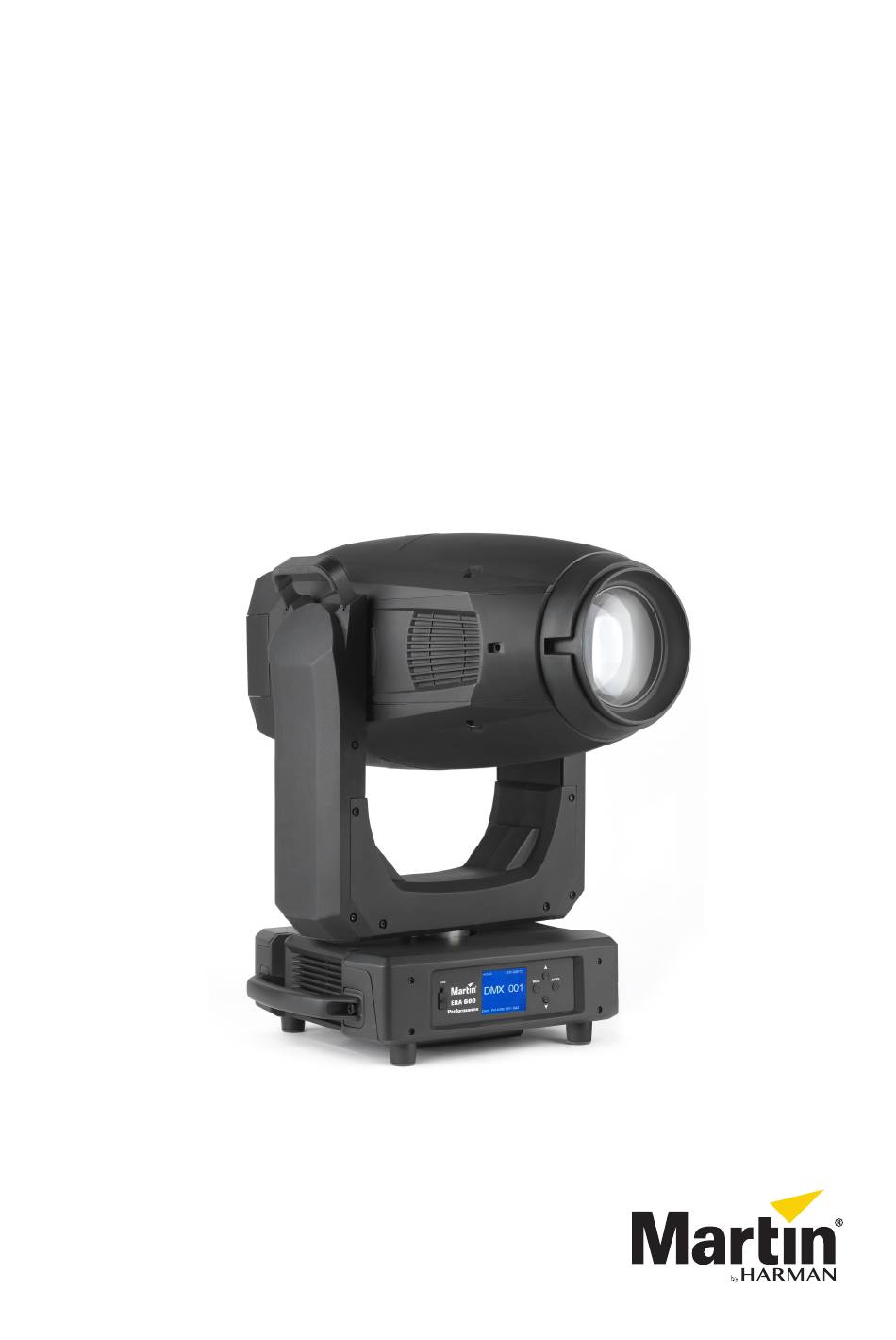

  • Page 1 Performance Safety and Installation Manual...
  • Page 2 ©2018-2019 HARMAN PROFESSIONAL DENMARK ApS. All rights reserved. Features, specifications and appearance are subject to change without notice. HARMAN PROFESSIONAL DENMARK ApS and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this document.

  • Page 3: Table Of Contents

    Contents Safety Information ..............4 Introduction .

  • Page 4: Safety Information

    The latest software, manuals and other documentation for all Martin products are available for download at www.martin.com Technical Support If you have questions about how to install or operate the fixture safely, please contact Harman Professional Technical support: • For technical support in North America, please contact: HProTechSupportUSA@harman.com Phone: (844) 776-4899 •...
  • Page 5 P R O T E C T I O N F R O M E L E C T R I C S H O C K • Do not expose the fixture to rain or moisture. • Do not remove any cover from the fixture except as described under “Service and maintenance” on page 16.
  • Page 6 • Do not modify the fixture in any way not described in this manual or the fixture’s User Guide or install other than genuine Martin parts. Do not stick filters, masks or other materials onto any lens or other optical component.
  • Page 7 • Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. • Allow enough clearance around the head to ensure that it cannot collide with a person or object such as another fixture when it moves.

  • Page 8: Introduction

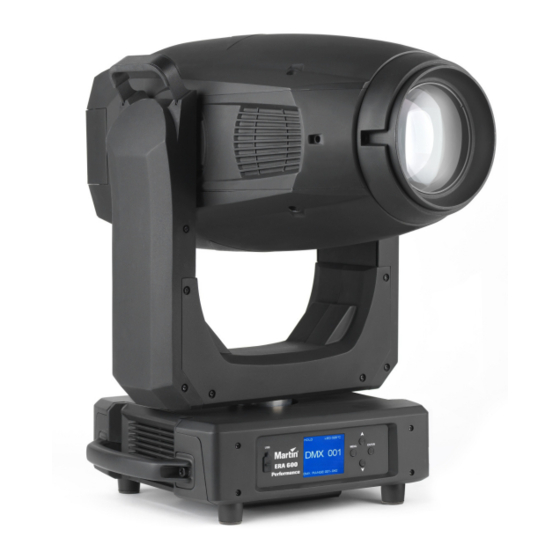

    Introduction Thank you for selecting the ERA 600 Performance from Martin®. This moving-head spotlight offers the following features: • Bright 550 W, 6500 K LED light source • 19 000 lumens output • Crisp optics with flat field • 1:8 fast zoom •...

  • Page 9: Packing

    Tilt lock Check that the tilt lock is released before applying power to the fixture. See Figure 1. Release the tilt lock by sliding the tilt lock button (arrowed) to the Unlocked position. You can reapply the tilt lock by first checking that the power is off and then sliding the tilt lock button back to the Locked position.

  • Page 10: Physical Installation

    Physical installation Warning! The ERA 600 Performance has a powerful pan motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do not apply power to the ERA 600 Performance unless the base is securely fastened to a stable surface or structure.
  • Page 11 The mounting points in the base allow omega brackets and rigging clamps to be fastened as shown in Figure 3. Figure 3: Clamp bracket positions Clamping the fixture to a truss 1. Check that all rigging hardware is undamaged and can bear at least six (6) times the weight of the fixture or as required by locally applicable regulations.
  • Page 12 5. See Figure 6. Install a safety cable that is approved as a safety attachment for the weight of the fixture by looping it through one of the four safety cable attachment points (arrowed) in the bottom of the base and around a secure anchoring point so that the safety cable will catch the fixture if a primary attachment fails.

  • Page 13: Ac Power

    AC power Warning! Read “Safety Information” on page 4 before connecting the fixture to AC mains power. Note in particular that you must not connect more than one ERA 600 Performance fixture to the MAINS OUT/THRU socket when operating on 100-200 V mains power, and you must not connect more than three ERA 600 Performance fixtures to the MAINS OUT/THRU socket when operating on 200-240 V mains power.
  • Page 14 Using 12 AWG / 2.5 mm cables from Martin, you can link: • maximum two (2) ERA 600 Performance fixtures total in one chain at 100-200 V, or • maximum four (4) ERA 600 Performance fixtures total in one chain at 200-240 V. If you connect more than one fixture to power in a daisy-chain, we recommend that you draw power from a circuit that is protected by a type D MCB (Miniature Circuit Breaker).

  • Page 15: Data Links

    Data links Important! Shut down power to the fixture before connecting to or disconnecting from data. DMX and RDM The ERA 600 Performance has 5-pin locking XLR sockets for DMX and RDM input and output (see A in Figure 8). The default pin-out on both sockets is: •...

  • Page 16: Service And Maintenance

    Service and maintenance Warning! Read “Safety Information” on page 4 before servicing the ERA 600 Performance. Warning! Disconnect the fixture from AC mains power and allow to cool for at least 30 minutes before handling. Do not stare into the light output. Be prepared for the fixture to light and move suddenly when connected to power.

  • Page 17: Lubrication

    • Presence of cigarette smoke. • Airborne dust (from stage effects, building structures and fittings or the natural environment at outdoor events, for example). If one or more of these factors is present, inspect fixtures within their first few hours of operation to see whether cleaning is necessary.
  • Page 18 • Avoid touching the other gobos when removing a gobo from a rack: the sharp edge of one gobo can scratch the others. • Keep gobos perfectly clean to reduce the risk of heat damage. • When cleaning gobos, use a repeated dabbing action rather than a rubbing action. When rinsing, use distilled or even better deionized water to avoid residue that will appear as drying marks.
  • Page 19 Replacing a rotating gobo Important: Different screw sizes and types are used on the modules and components inside the head. Make sure that you do not mix them up. Apply a small quantity of Loctite 222 to the threads of all the screws mentioned in this section when you reinstall them.
  • Page 20 5. See Figure 13. Rotate the head through 180° so that you are looking at the top of the head. Remove the six screws (arrowed) from the effects module retaining plates and keep the plates and screws for re-use. Figure 13: Removing the effects module retaining plates 6.
  • Page 21 8. See Figure 15. Note the position of the reference marks in the gobo drive wheel A and goboholder B. Note also the position of the goboholder positioning magnet C and gobo wheel positioning magnet D. Each time you remove a goboholder from the wheel, turn the drive wheel (twice if necessary) until the marks exactly line up.
  • Page 22 Coated Glass Gobos The heavy matted aluminum coated borosilicate gobos in the ERA 600 Performance are factory-installed with the more reflective sides facing towards the LED light source. Replacement gobos must also be installed with more reflective sides facing the LEDs in order to avoid heat damage.
  • Page 23 Gobo alignment See Figure 18. Note the position of the alignment marks (arrowed) on goboholders and gobos. Install gobos with the alignment marks next to each other. Figure 18: Gobo alignment marks Gobo replacement procedure Avoid getting grease from your fingers or dirt onto gobos. Hold gobos by their edges only. Wear nitrile cleanroom gloves when handling gobos.

  • Page 24: Using The Fixture

    Using the fixture Before using the fixture, download and read the latest version of the ERA 600 Performance User Guide from the ERA 600 Performance area of the Martin website at www.martin.com. The User Guide contains details • The effects available in the fixture. •...

  • Page 25: Troubleshooting

    Troubleshooting Problem Probable cause(s) Remedy Check that power is switched on and cables are No power to fixture. plugged in. Contact Martin Service or authorized service partner. Do not remove base or yoke covers, One or more of the fixtures is attempt to replace a fuse or carry out any repairs or completely dead.

  • Page 26: Specifications

    Specifications Physical Length (head) ............544 mm (21.5 in.) Width (base) .
  • Page 27 Gobos External diameter....... . 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.) Maximum image diameter .
  • Page 28 Supplier’s Declaration of Conformity Harman Professional, Inc. have issued an FCC Supplier’s Declaration of Conformity for this product. The Declaration of Conformity is available for download from the ERA 600 Performance area of the Martin website at www.martin.com Canadian Interference-Causing Equipment Regulations - Règlement sur le Matériel Brouilleur du Canada...
  • Page 29 Intellectual Property Rights Martin® ERA 600 products are covered by one or more of these patents: CN101430080; CN102713425; CNZL200810128720.0; CNZL200810128776.6; CNZL200810144668.8; CNZL201080025103.3; CNZL201180014884.0; CNZL201380004370.6; CZ17567; EP2058586; EP2113714; EP2117284; EP2136136; EP2326150; EP2443381; EP2536974; EP2550686; EP2828577; EP2881650; US6971770; US7,703,948; US7,789,543; US7,905,630; US7,942,535; US7,990,673; US7222997; US7498756; US8,449,141; US8,708,535; US8,770,762; US9217551; US9217559; and/or one or more of these patent applications: CN104696882;...
