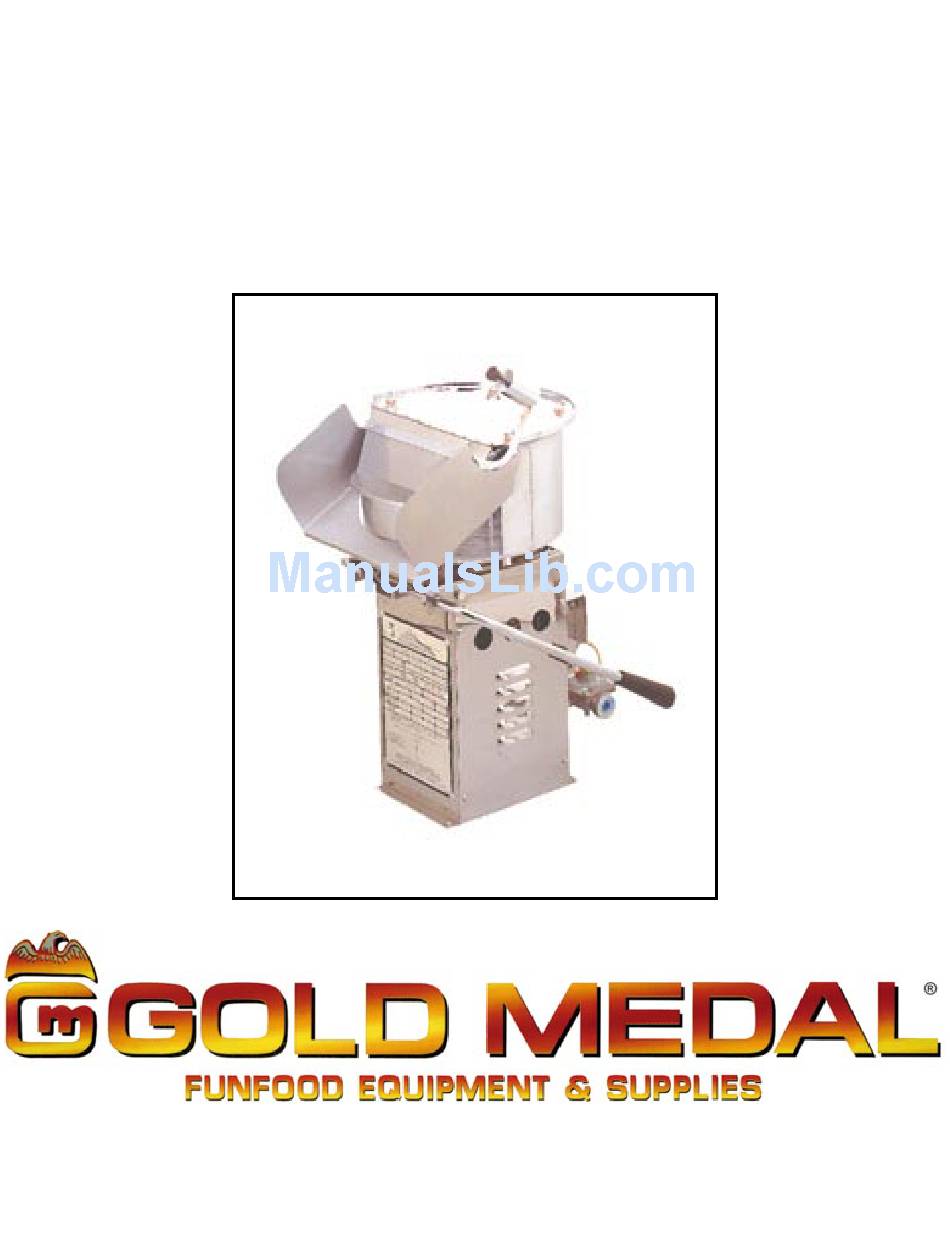

- Page 1 Mighty–Mite Part No. 74570 Revised June 1996 Instruction Manual Model #2035BG ( Bottle Gas ) Model #2035DC ( DC Motor, Bottle Gas ) Model #2035NG ( Natural Gas ) Cincinnati, OH 45214-2089 USA...
- Page 2 GAS SAFETY PRECAUTIONS...
-
Page 3: Unpacking And Assembly
Mighty–Mite This instruction booklet is very thorough and complete. Please take the time to read this entire booklet before attemting to operate the appliance. Your Mighty-Mite Commercial Popper is the finest 14 Oz. gas popper ever built. The special alloy steel kettle is extra heavy to prevent burnouts or warping, and is made from excellent heat con- ducting steel. -
Page 4: Altitude Range
ALTITUDE RANGE The factory has sized the burner orifices for an elevation up to 2000 feet above sea level. For high altitude operation, please contact Gold Medal Engineering for the proper orifice size. GAS PRESSURE We have determined that optimum popping results occur when the gas pressure is adequate. -
Page 5: Lighting And Shutdown Instructions
Mighty–Mite LIGHTING AND SHUTDOWN INSTRUCTIONS 1. Turn the handle of the gas safety valve to the "PILOT" position. 2. Push down the red reset button, depress the spark igniter and repeat until the pilot lights. Hold the red reset button for about 30-45 seconds or until the pilot remains burning when the button is released. -
Page 6: Maintenance Instructions
Mighty–Mite MAINTENANCE INSTRUCTIONS THE FOLLOWING SECTIONS OF THIS MANUAL ARE IN- TENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. Adequate eye protection must be used when servicing this equipment to prevent the possibility of injury. Do NOT immerse the equipment in water. -
Page 7: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 8: Baso Valve Information
Mighty–Mite BASO VALVE INFORMATION #2035 ODELS... - Page 9 Mighty–Mite BASO VALVE INFORMATION ( continued ) #2035 ODELS...
-
Page 10: Kettle Cross Section Assembly
Mighty–Mite KETTLE CROSS SECTION ASSEMBLY #2035 ODELS... -
Page 11: Parts List - Kettle Cross Section Assembly
Mighty–Mite PARTS LIST – KETTLE CROSS SECTION ASSEMBLY Item No. Part No. Description 74571 Set Screw, #8-32 x " 47120 Knob, Lid Lift 82108 Counter Weight, with #8-32 Tap 74529 Counter Weight Bar, 14 Ounce 74147 Screw, #8-32 x ½" Rd. Hd. Ph. 74146 Hex Nut, #8-32 ESLOK 74545... -
Page 12: Cabinet Assembly
Mighty–Mite CABINET ASSEMBLY #2035 ODELS... -
Page 13: Parts List - Cabinet Assembly
Mighty–Mite PARTS LIST – CABINET ASSEMBLY Item No. Part No. Description 74029 Pilot Orifice .011 LP (Used with P/N 74028) 2-1a 74029 Pilot Orifice .011 LP (Used with P/N 57031) 74531 Pilot Orifice .018 NAT (Used with P/N 74028) 2-2a 74030 Pilot Orifice .023 NAT (Used with P/N 57031) 74028... - Page 14 Mighty–Mite PARTS LIST – CABINET ASSEMBLY ( continued ) Item No. Part No. Description 2-43 74530 Shield, Heat 2-45 46566 Spring Pin, " x " 2-46 42070 Set Screw #10-24 x ½" 2-47 47038 Kettle Motor, 120V 60 Cycle 2-48 47028 Kettle Motor, 230V 50 Cycle 2-49...
-
Page 15: Electrical Schematic
Mighty–Mite ELECTRICAL SCHEMATIC #2035 ODELS... - Page 16 Mighty–Mite ELECTRICAL SCHEMATIC – MODEL #2035DC ONLY #2035 ODELS...
-
Page 17: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
