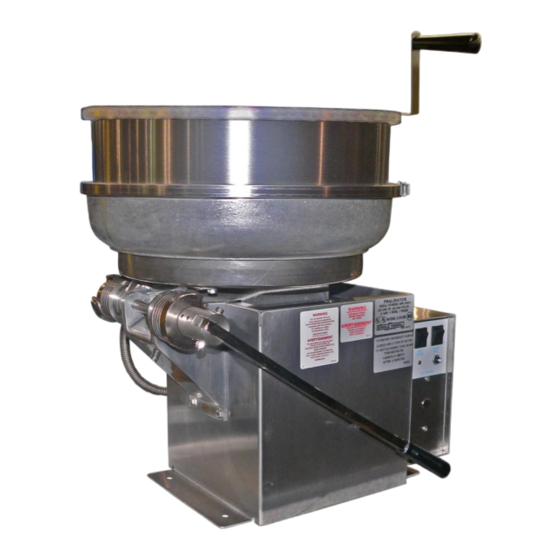

- Page 1 Part No. 77471 Pralinator Models 2181EL, 2181ER, 2181DEL, 2181DER Instruction Manual 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Electrical Requirements
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 6 4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614...
-
Page 7: Controls And Their Functions
Pralinator 2181EL, 2181ER, 2181DEL, 2181DER OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS HEAT SWITCH This rocker switch in the “ON” position energizes the heating elements in the bottom of the kettle, and the motor will also turn for 55 seconds of every minute. (It is normal for the motor to stop for 5 seconds of every minute.) - Page 8 PRALINATOR OPERATING INSTRUCTIONS Make a solution of (3) parts water to (1) part Gold Medal imitation vanilla (Item # 4515). We recommend making at least 1 gallon of this “vanilla water” solution. (1 qt. of item # 4515 + 3 qts.
- Page 9 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet or steam cleaner. Always unplug the equipment before cleaning or servicing.
- Page 10 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Daily Unit Cleaning Procedure 1. Turn machine OFF, unplug the unit and allow it to cool before attempting to clean. 2. Clean all pans/accessories after each use. 3. Release draw latch and remove mixing drum, then remove paddle.
-
Page 11: Maintenance Instructions
Pralinator 2181EL, 2181ER, 2181DEL, 2181DER THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. - Page 12 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER New Paddle/Hub Seal Kit Installation Kettle Shaft Maintenance 1. With the machine OFF, unplug the unit and allow it to cool. 2. Loosen the wing bolt (Mixing Paddle Lock Stud) and remove the mix paddle.
-
Page 13: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... - Page 14 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Pralinator System Controller—Models 2181EL(ER) Resistor, 910 k, ½ W Resistor, 82 k, ½ W Circuit Breaker, 15 Switch, Rocker (front, “On”) p/n 48691 (rear, “Off”) p/n 48692 AMP p/n 47364 (2) p/n 42798 Timer, Percentage Buzzer Signal 60 sec.
- Page 15 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Pralinator Digital System Controller—Models 2181DEL(DER) Resistor, 82 k, ½ W Timer, Percentage Resistor, 910 k, ½ W (rear, “Off”) p/n 48692 (front, “On”) p/n 48691 60 sec. p/n 48688 Temperature Control p/n 48720 Relay, 30A DPST,...
- Page 16 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Kettle—Interior, Mounting, Drive, and Coupling Coupling Body, 3/4” Bore p/n 46145 Flexible Spider Motor Mount p/n 16708 p/n 12141 Coupling Body, 5/8” Kettle Rest Bumper Bore p/n 46144 p/n 83111 Kettle Lead-In Cord Assembly p/n 48769...
- Page 17 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Kettle—Interior, Mounting, Drive, and Coupling (cont.) Hub Seal Assembly O-Ring p/n 46631 p/n 46632 (inc. w/Hub Seal Assy.) p/n 46632 Kettle Lead-In Spacer, Large, Assembly (Dump Side) p/n 48769 p/n 74659 p/n 16707 Torsion Spring (2)
- Page 18 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Kettle Bottom 120V – 720W Tubular 120V – 1000W Heat 120V – 1500W Tubular Element p/n 41536 Element p/n 48800 Element p/n 55279 * RTD Heat Sensor p/n 68010 Thermostat, Kettle L-510 (2) p/n 82219...
- Page 19 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Electrical Schematic Model 2181EL and 2181ER...
- Page 20 Pralinator 2181EL, 2181ER, 2181DEL, 2181DER Electrical Schematic Model 2181DEL and 2181DER...
-
Page 21: Warranty
© 2022 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
