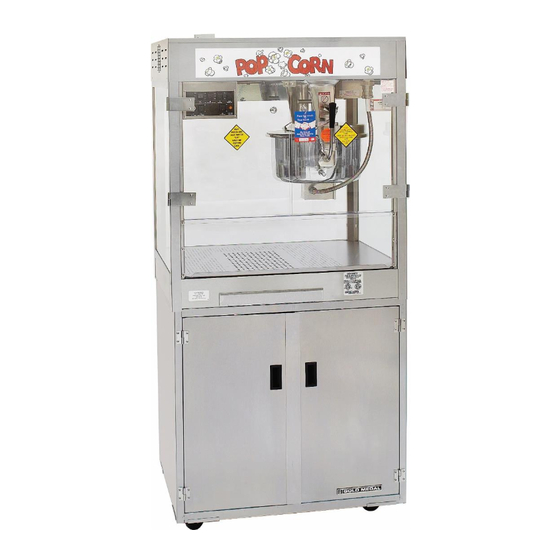

- Page 1 Instruction Manual Spartan Model No. 2671 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA Part No. 63461...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Inspection Of Shipment
Spartan Model No.2671 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 5 A certified electrician must follow the IMPORTANT instructions below for installation of the NEMA 14-50 Receptacle (Gold Medal Item No. 82920) provided with the unit. If the receptacle is wired incorrectly, the heat elements/kettle and other electrical components could be at 208 or 240 V potential instead of the needed 120 V, resulting in excessive temperatures in the heat elements (i.e.: kettle) and possible fire, and/or damage to electrical components.
-
Page 6: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 Oil Dispense Installation To connect and calibrate the oil dispense system to this popper;... -
Page 7: Controls And Their Functions
Spartan Model No.2671 OPERATING INSTRUCTIONS Controls and Their Functions LIGHT SWITCH This operates all of the lights, interior and dome, on your popcorn machine. POPCORN CONDITIONER SWITCH Operates the blower in the corn storage area, keeps popcorn fresh and crisp. KETTLE HEAT SWITCH This operates the heating elements in the popping kettle. - Page 8 Spartan Model No.2671 FLEXI-POP SWITCH (if equipped) This changes energy to the kettle for the load switch from 52 oz. to 32 oz. it will automatically adjust the oil amount on the 2257D model of oil pump. The blue light and blue labeled cup are for the 32oz and the green are for the 52oz.
-
Page 9: Popping Corn Instructions
5. When corn has finished popping, the Load/Dump Light and Audible Signal will turn ON, then gently dump the popcorn. Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If, after 3 consecutive batches, the signal occurs before or after popping has stopped, then the signal timing can be adjusted. - Page 10 6. When corn has finished popping, the Load/Dump Light and Audible Signal will turn ON, then gently dump the popcorn. Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If, after 3 consecutive batches, the signal occurs before or after popping has stopped, then the signal timing can be adjusted.
-
Page 11: Cleaning Instructions
1. When cool, wipe outside of kettle with a clean, soft cloth. DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 12 Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine. 6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 13: Filter Cleaning
Spartan Model No.2671 Daily Sanitizing the Internal Parts (Tubing, Pump, Etc.) For Models with an oil dispenser, Gold Medal Products Co. recommends pumping sanitizer through the system nightly to clean pumps and topping lines. Filter Cleaning The popper is equipped with an efficient and durable filtration system. The first mesh filter should be cleaned on a daily basis, and the two internal filters should be cleaned weekly to maintain maximum efficiency. - Page 14 Spartan Model No.2671 Weekly Clean the Crisper/Blower Filters Follow the directions below each week to clean the crisper/blower filters. 1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean. 2. Lift off the corn pan to view the blower assembly. 3.
-
Page 15: Troubleshooting
Spartan Model No.2671 Troubleshooting Issue Possible Cause Solution Power to the Unit A. Power to the Unit A. Make sure the unit’s power cord is plugged in. B. Mini Circuit Breaker(s) on B. Mini Circuit Breaker(s) supplies power to all popper tripped unit features. - Page 16 Spartan Model No.2671 Issue Possible Cause Solution Oil Pump Does Not Deliver A. Mini Circuit Breaker(s) on A. Check the Mini Circuit Breaker(s); if reset, Oil to Kettle (for units popper tripped then trips again, the unit must be inspected/ equipped with oil) repaired by qualified service personnel.
- Page 17 Spartan Model No.2671 Issue Possible Cause Solution Poor Blower Performance A. Filters A. Clean or replace blower filters as needed (Blower is working, but air (reference Cleaning and Care section). not circulating properly.) B. Popcorn chaff build up B. Have Qualified Service Personnel clean any popcorn chaff build up from the blower compartment (reference Cleaning and Care section).
-
Page 18: Maintenance Instructions
Spartan Model No.2671 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. Keep cord and plug off the ground and away from moisture. -
Page 19: Operation
Spartan Model No.2671 Electronic Temperature Control (Domestic) Operation The temperature control is factory set to stop the power to the kettle when the thermocouple reaches setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil. -
Page 20: Electronic Temperature Control (Export)
Spartan Model No.2671 Electronic Temperature Control (Export) Operation The temperature control is factory set to stop the power to the kettle when the thermocouple reaches setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil. -
Page 21: Ordering Spare Parts
Replacing Broken Glass If you accidentally break a panel of glass, it can be replaced very easily without disassembling the popper. Gold Medal Products does not ship glass. Obtain from local glass shop and always purchase double strength type glass. -
Page 22: Cabinet Breakdown
Spartan Model No.2671 CABINET BREAKDOWN 7, 10 4, 5 2, 3 Item Part No. Model(s) Part Description Qty. 63477 DOME WELDMENT 41349 MALE HINGE SHORT LEFT 41352 FEMALE HINGE LONG LEFT 41350 MALE HINGE SHORT RIGHT 41351 FEMALE HINGE LONG RIGHT 41013 DOOR KNOB 50013... - Page 23 Spartan Model No.2671 Cabinet Breakdown 4, 8, 9 ITEM PART NO. MODEL(S) PART NAME QTY. 63384 Non Deep Well Old Maid Screen 63718 Deep Well Old Maid Screen 63454 Japan LH Old Maid Screen (Not Shown) 63455 Japan RH Old Maid Screen (Not Shown) 41979S Domestic 75W Halogen Flood...
- Page 24 Spartan Model No.2671 Cabinet Breakdown 7, 8 5, 6 7, 8 5, 6 ITEM PART NO. MODEL(S) PART NAME QTY. 63386 Non Deep Well Diffuser Cover Weldment 63717 Deep Well Diffuser 63383 Non Deep Well Blower Cover Weldment 13406 Deep Well Blower Housing 61123 Domestic...
- Page 25 Spartan Model No.2671 POPCORN SIGN BREAKDOWN Neon Sign Options – 63470N Fluorescent Sign Options – 63470 14, 16 15, 16 LED Sign Options – 63470L ITEM PART NO. MODEL(S) PART NAME QTY. ITEM PART NO. MODEL(S) PART NAME QTY. 55231 NEON 12V Power Supply 41022...
-
Page 26: Base Breakdown
Spartan Model No.2671 BASE BREAKDOWN Non Deep-Well Base Deep-Well Base 11-12 9-10 19-20 *NOTE: Old Maid Pan is located above the doors on the non-deep well versions of this unit, not inside as shown in figure above. gmpopcorn.com Page 26... -
Page 27: Base Parts List
Spartan Model No.2671 BASE PARTS LIST ITEM PART NO. MODEL(S) PART NAME QTY. 82698 Flush Mount Handle 50013 Magnet 68115 Magnet Spacer 83050 Door Catch Bracket 63752 Base Door Right 63751 Base Door Left 63418 Corn Bin Bracket 63417 Corn Bin 41349 Male Hinge Short Left 41355... - Page 28 Spartan Model No.2671 52 oz. Kettle Assembly – 2727HT (Domestic), 2727HTX (Export) Complete Agitator Assembly (Includes Lids) 8 Apply Loctite 246 before installing. To install Nut Retainer: Slightly bend tabs down. Once bolts are tightened into block, fully bend each tab against flat side of head.
- Page 29 Spartan Model No.2671 52 oz. Kettle Assembly – 2727HT, 2727HTX - Parts List Part Number Item Parts Description 2727HT 2727HTX CROSSBAR FASTENER 47977 47977 RH KETTLE BOTTOM ASSY (see Kettle Bottom Assembly section for parts 55300 48966EX breakdown) KETTLE LEAD ASSEMBLY 55299 55299 DUMP HANDLE PLASTIC...
- Page 30 Spartan Model No.2671 52 oz. Kettle Bottom Assembly – 2727HT, 2727HTX * See Parts List for note Element View - Interior On Pass Thru Models. Junction Box Interior View Kettle Shell - Bottom View gmpopcorn.com Page 30...
- Page 31 Spartan Model No.2671 52 oz. Kettle Bottom Assembly – 2727HT, 2727HTX – Parts List Part Number Item Part Description 2727HT 2727HTX RH KETTLE BOTTOM ASSY (Complete 55300 48966EX Assembly – includes all parts listed below) HEAT TRANSFER PLATE 52 OZ. 48968 48968 ELEMENT SHIM...
- Page 32 Spartan Model No.2671 Top Motor Plate 4, 18 8, 9 gmpopcorn.com Page 32...
- Page 33 Spartan Model No.2671 Top Motor Plate Item Part No. Model(s) Part Description Qty. 47047 LAMP HOLDER 49584 RECESSED LIGHT COVER 41015 DOMESTIC 115V EXHAUST BLOWER 41965 EXPORT 220V EXHAUST BLOWER 46107 MOTOR CAPICATOR 41449B DOMESTIC KETTLE DRIVE MOTOR 41500B EXPORT KETTLE DRIVE MOTOR 41001 TEMPRATURE CONTROL...
-
Page 34: Wiring Diagram
Spartan Model No.2671 WIRING DIAGRAM For wiring information, please reference the Wiring Diagram shipped with the popper. gmpopcorn.com Page 34... - Page 35 This bulletin describes popcorn machines equipped with an Electronic Temperature Control manufactured by NCC for Gold Medal Products. There are no mechanical thermostats used with this control. The mechanical thermostats are replaced by two Thermocouple Sensors, one for the High Limit and one for Temperature Control.
- Page 36 Service Bulletin 0074 – NCC Electronic Temperature Control Appendix A Adjustment of Alarm Set Point If you would like to have the beeper sound sooner or later than the factory setting, adjust the temperature setting as follows: 1. To sound the beeper sooner, turn the Kettle Dump pot clockwise (CW) towards the - 10% mark on the control board.
- Page 37 Service Bulletin 0074 – NCC Electronic Temperature Control Appendix A Trouble Shooting for Service Personnel 1. If the kettle does not heat and there are no beeper sounds, look on the heat control to see if the green PWR LED is on. The PWR LED indicates there is power to the control board. If the LED is not on, check the Heat Switch and wiring.
- Page 38 Service Bulletin 0074 – NCC Electronic Temperature Control Appendix A Notes: 1. Do not adjust the (4) painted potentiometers numbers R89, R36, R73 and R74 on the electronic heat control. If adjusted, the performance will be erratic and could result in an over temperature condition.
-
Page 39: Temperature Control Board
Service Bulletin 0074 – NCC Electronic Temperature Control Appendix A Temperature Control Board Salt/Sweet Option - there are two jumpers with wires. TC-A is the Limit Thermocouple The common wire (white) Input. + is Yellow Wire. is connected to a bottom jumper pin. -
