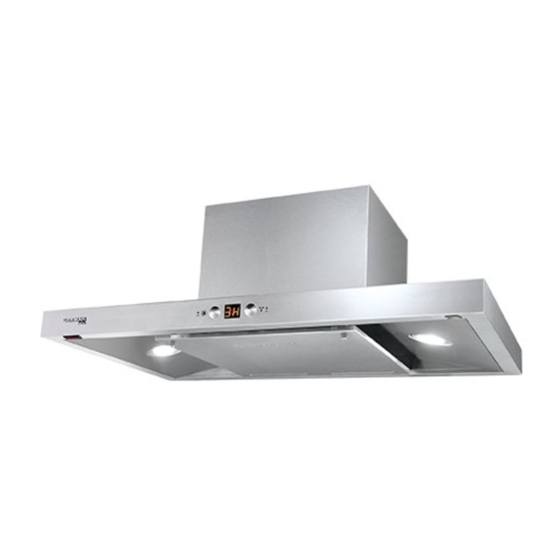

Chimney type range hood

Advertisement

Chimney Type Range Hood
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
U S E R M A N U A L
R HS SER I ES
6328 / 7328 / 8328 / 9328 /
6428 / 7428 / 8428 / 9428 /
P.1
Online Warranty Registration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHS 6328 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for German pool RHS 6328

  • Page 1 R HS SER I ES Chimney Type Range Hood 6328 / 7328 / 8328 / 9328 / 6428 / 7428 / 8428 / 9428 / Online Warranty Registration Please read these instructions and warranty information carefully before use and keep them handy for future reference. U S E R M A N U A L...
  • Page 2: Table Of Contents

    Content Notice Before Use Product Structure Installation Instructions Wiring Diagram Operating Instructions 請即進行保用登記! 有關保用條款細則,請看說明書最後一頁。 Care & Maintenance Please register your warranty information now ! Troubleshooting For Warranty Terms & Conditions, please refer to the last page of this user manual. Technical Specifications Warranty Terms &...
  • Page 3: Notice Before Use

    2. Keep children away from the appliance. Do not let them use the appliance without supervision. 3. If the power supply cord is damaged, do not operate the appliance. Contact German Pool or a licensed technician for a replacement immediately.
  • Page 4: Installation Instructions

    Installation Instructions Wiring Diagram Pre-installation Notice The range hood must be installed and repaired by authorized qualified technicians. Before installation, plug in and check if all switches are functional. Installation Environment Plug For efficient air extraction, avoid opening too many windows surrounding range hood for this will cause Control box air convection which prevents cooking fumes from rising to 25 cm (the effective suction / exhaust area).
  • Page 5: Operating Instructions

    Operation Instructions Operation Instructions I. Main Power Switch Important - When it is switched to ON, the range hood is connected with power and at stand-by status. All func- 1. The exhaust duct must be exposed outdoors. tions can be activated. 2.
  • Page 6: Care & Maintenance

    Operation Instructions Care & Maintenance III. Infrared-Sense Auto Start Important -Under stand-by status, when on object close to infrared sensor, the fan will activate at high speed for -To ensure the most optimum efficiency, the range hood must be cleaned at least once a week. 60 seconds.
  • Page 7: Troubleshooting

    Troubleshooting Technical Specifications If you encounter the following common troubles, please solve according to the following instructions. RHS-6328 RHS-7328 Model If the problem cannot be solved or a cause cannot be found, please contact our customer services Voltage / Frequency 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz centre.
  • Page 8 Technical Specifications 目錄 RHS-6428 RHS-7428 Model 注意事項 Voltage / Frequency 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz Power 220-250 W 220-250 W 產品結構 Lighting Motor Speed Max. 2,800 Max. 2,800 Exhaust Flow 安裝說明 Max. 900±50 M³/hr Max. 900+50 M³/hr Exhaust Outlet Diameter ø...
  • Page 9 注意事項 產品結構 重要說明 為安全起見,初次使用產品前請先細說本說明書,並保存說明書,以便作參考之用。 本產品只供家居使用。請必須依照本說明書內的指示安裝及操作。 1. 本產品並不適用於兒童、身體或心智殘障、缺乏經驗或知識的人士使用和玩樂,除非該人士得 到負責保障其安全的人士的監管或指引。 2. 請將產品遠離兒童。不要讓兒童單獨使用本產品。 3. 為免發生危險,若發現電源線有任何損壞,必須停止使用產品,並立即聯絡本公司或合資格技 術人員進行更換。 4. 清潔、維修或拆除抽油煙機前應先切斷電源。 5. 電源插座必須安裝接地線。 6. 請接駁獨立排氣喉將油煙排往室外。 7. 抽油煙機不可與燃氣或使用其他能源之器具共同使用同一排放管道。 8. 抽油煙機頂部的圓形接駁口須接駁風管,將油煙排出室外,須用6吋直徑風管。 9. 抽油煙機安裝於氣體爐上方時,抽油煙機底部距離爐面700±50mm之間為宜。 10. 切勿在抽油煙機下直接燃點明火。 11. 安裝、清潔、更換燈泡及拆除抽油煙機時請戴上安全手套,以免受傷。 1. 摩打及風箱 2. 機身 12. 請勿直接潑水噴淋機身,以免損壞電器機件。 3. LED照明燈 13. 德國寶抽油煙機抽吸力特強,大部分油煙在抽油煙機操作時已被抽出室外,故此集油器的油污 4. 操作面板 量很少,請放心使用。...
  • Page 10 安裝說明 電路圖 安裝前注意 必須由專業合資格技術人員安裝及維修抽油煙機。 安裝前先接上電源檢查照明與摩打開關是否正常操作。 插頭 周圍環境 控制器 抽油煙機四周應避免門窗過多,而產生過大之空間對流。如果油煙未上升至25cm有效吸力範圍,抽 油煙機則無法發揮正常效果。 安裝方法 根據抽油煙機兩掛耳之間的距離及掛耳兩孔間距的大小,在牆上打孔裝上膨脹螺絲固緊,將抽油煙 機上的掛耳掛入螺絲中,用螺母旋緊即可 (如圖A.B.C)。 感溫啟動器 安裝高度 抽油煙機底部距離爐面700±50mm之間為宜,距離越接近700mm,抽油煙效果越佳(如圖D)。 機體保持水平 確定安裝位置時,機體應保持前後左右水平,若機體傾斜積油會漏出(如圖E)。 50 60 Hz 450VAC 電容器 風管長度 抽油煙機頂部的圓形接駁口須接駁風管,將油煙排出室外,須用6吋直徑風管。風管長度之標準接 紅外線感應 摩打 法(如圖F)。排風出口至機體之距離,應儘量縮短,以免氣流擠壓於風管內,影響其排風效果。 圖 按鍵開關 圖 圖 圖 圖 281mm 252mm P.18 P.19...
  • Page 11 操作說明 操作說明 重要事項 I. 總開關 1. 抽油煙機風管必須連接於屋外,嚴禁直接排進屋內。 - 當總開關掣切換至ON時,抽油煙機即接上電源,處於待機狀態,可啟動機上任何功能。 2. 使用氣體爐或其他燃料烹飪時,室內必須有足夠通風空間。 - 當總開關掣切換至OFF時,機上所有功能,包括自動智能感溫、電熱除油及遠紅外線智能感應,將 不能啟動。如要使用任何功能,總開關鍵必先切換至ON。 3. 抽油煙機之排氣管嚴禁與氣體管或其他燃料排氣管相通。 II. 按鍵開關/LCD視窗 4. 通電前須注意電源電壓是否與機身銘牌標示之電壓一致。 待機狀態下,LCD視窗下的紅色指示燈常亮。 A. 風速 - 轉速鍵(右鍵)待機狀態下,按鍵選擇風速,摩打運轉。 -會智能記憶上次關閉前所使用的轉速,請連續按壓轉速鍵至所需轉速。 操作面板 • 螢幕右方顯示H為高轉速。 • 螢幕右方顯示M為中轉速。 • 螢幕右方顯示L為低轉速。 - 長壓2秒(嗶嗶2聲)螢幕顯示AH將起動熱除油功能。原始設定為600秒,再按壓一次,將關閉馬達 運轉功能。 紅外線感應啟動 B. LED燈 總開關鍵 - 照明燈(左鍵)待機狀態下,按壓一次將啟動LED電源。會智能記憶上次關閉前所使用的亮度,請...
  • Page 12 操作說明 清潔與保養 重要事項 III.紅外線感應自動啟動 -為達致本產品的最佳效能,用戶應最少每週清洗抽油煙機一次。 -待機狀態下,感應紅外線將啟動摩打運轉高轉速功能,原始設定之運轉時間為60秒。 -清洗或拆裝金屬底部時,請務必先戴上安全手套,以免割傷。 IV. 自動智能感溫啟動 注意:使用自動智能感溫啟動前,請先確認本機處於待機狀態。 -警告:如用戶不依照本說明書指示進行維修或清潔保養(特別是風扇及易沾油污部份), 有可能會導致火警。 -當煮食爐或電爐正在使用中而並未啟動抽油煙機風扇時,只要抽油煙機底下的溫度達 55-60° C(130-140° F)時,自動感溫將會啟動風扇以中速運轉45秒後停止。 1. 清潔、保養及維修前必須先拔掉電源插頭。 -若自動運轉完畢而用戶仍未啟動任何風速,只要抽油煙機底下的溫度達55-60° C(130- 2. 清潔時,內外之表面可用軟布沾中性清潔劑擦拭,再沾清水揩抹,應避免刮花機體內外 140° F)時,風扇仍會如上一步驟啟動。 表面。 3. 集油杯積油一半或以上時,需要將油汙倒掉以免溢出。先以十字螺絲起子打開整流板, 取出風輪下的集油杯,清洗及抹乾後重新裝上。 註: 4. 當整流板打開後斷電開關將會自動斷電。 自動智能感溫經第一次啟動,當風扇停止運轉後,若要持續保持風扇運轉,須按下所需風速 5. 不要將整流板掛於機身上,防止整流板跌落而導致爐具面板破損。 鍵H-M-L。 6. 雙手捉緊整流板兩側,往上提拆開整流板。 V. 斷電開關掣 抽油煙機裝有一個斷電開關掣(位置如P.17-N0.7) a.
  • Page 13 常見故障及處理 技術規格 RHS-6328 RHS-7328 型號 如遇以下一般性故障,請按以下指示處理, 如仍處理不了或未發現故障原因時,請與本公司 維修服務中心聯繫。 電壓 / 頻率 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz 功率 220-250 W 220-250 W 注意:為安全着想,再次特別提醒,請勿自行拆卸修理。 照明燈 摩打轉速 Max. 2,800 Max. 2,800 排風量 Max. 900±50 M³/hr Max. 900+50 M³/hr 故障現象...
  • Page 14: Warranty Terms & Conditions

    - the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 排風口直徑 ø 152 mm/6” ø 152 mm/6” 4. German Pool will, at its discretion, repair or replace any 4. 總代理有權選擇維修或更換配件或其損壞部份。 defective part. 機身尺寸(含摩打) (H) 265 mm (H) 265 mm 5.
  • Page 15 Fax:+853 2875 2661 HONG KONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. www.germanpool.com RHS-M-19(2) P.28...
