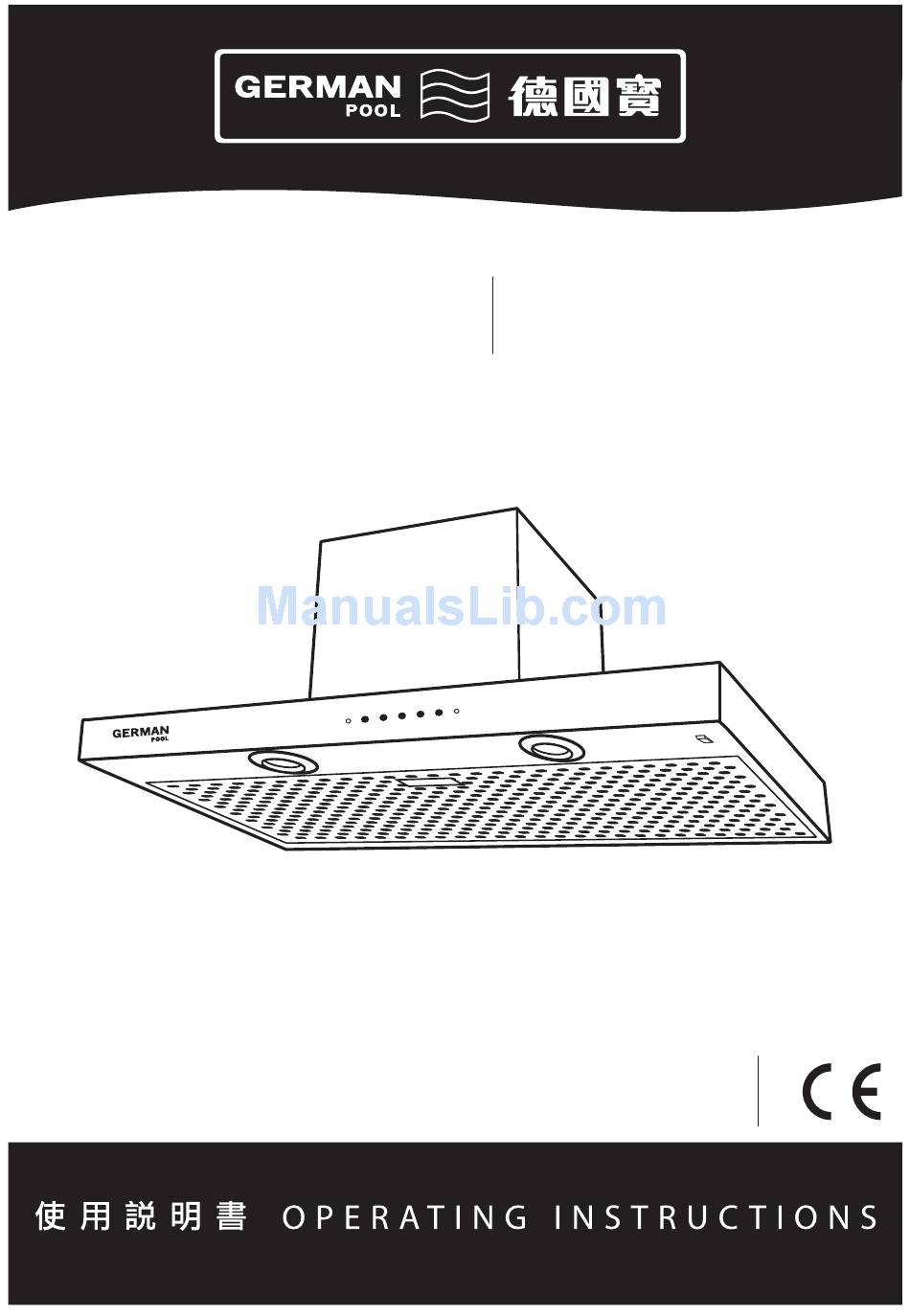

- Page 1 Chimney Type Range Hood SERIES 6328 / 7328 / 8328 / 9328 / 6428 / 7428 / 8428 / 9428 / 在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 ， 並 妥 為 保 存 。...
-
Page 2: Table Of Contents
目錄 Table of Contents 注意事項 Notice Before Use 產品結構 Product Structure 安裝說明 Installation Instructions 電路圖 Wiring Diagram 操作說明 Operating Instructions 清潔與保養 Care & Maintenance 常見故障及處理 Troubleshooting 技術規格 Technical Specifications 保用條款 Warranty Terms & Conditions... -
Page 3: 注意事項 Notice Before Use
2. 請將產品遠離兒童。不要讓兒童單獨使用本 let them use the appliance without supervision. 產品。 3. If the power supply cord is damaged, do not 3. 為免發生危險，若發現電源線有任何損壞， operate the appliance. Contact German Pool 必須停止使用產品，並立即聯絡本公司或合 or a licensed technician for a replacement 資格技術人員進行更換。 immediately. 4. Disconnect the power supply before cleaning, 4. 清潔、維修或拆除抽油煙機前應先切斷電源。... - Page 4 注意事項 Notice Before Use 12.德國寶抽油煙機抽吸力特強，大部分油煙在 12. German Pool range hood has high venting 抽油煙機操作時已被抽出室外，故此集油器 efficiency. Most of the grease vapor will be 的油污量很少，請放心使用。 exhausted through the air vent when the range hood is in operation. Only very little amount of residual oil will be collected in the Oil Collecting Tray.
-
Page 5: 產品結構 Product Structure
產品結構 Product Structure 1. Motor Cover 摩打風箱 2. Body 機身 3. Light 照明燈 4. Control Panel 操作面板 5. Metal Panel (oil collector inside) 金屬底板(內附集油杯) 6. Main Power Switch 總開關掣... -
Page 6: 安裝說明 Installation Instructions
安裝說明 Installation Instructions Pre-installation Notice 安裝前注意 必須由專業合資格技術人員安裝及維修抽油 The range hood must be installed and repaired by authorized qualified technicians. 煙機。 Before installation, plug in and check if all switches 安裝前先接上電源檢查照明與摩打開關是否 are functional. 正常操作。 Installation Environment 周圍環境 抽油煙機四周應避免門窗過多，而產生過大之空 For efficient air extraction, avoid opening too many windows surrounding range hood for this will cause air 間對流。如果油煙未上升至25cm有效吸力範圍，... -
Page 7: 電路圖 Wiring Diagram
電路圖 Wiring Diagram NIGHT LIGHT INDICATOR 自動智能感溫啟動燈... -
Page 8: 操作說明 Operating Instructions
操作說明 Operation Instructions Important 重要事項 1. The exhaust duct must be exposed outdoors. 1. 抽油煙機風管必須連接於屋外，嚴禁直接 排進屋內。 2. There should be adequate ventilation in the 2. 使用氣體爐或其他燃料烹飪時，室內必須有 room when a gas cooking range or other fuels 足夠通風空間。 are in use for cooking. 3. - Page 9 操作說明 Operation Instructions I. Main Power Switch I. 總開關 - When it is switched to ON, the range hood is - 當總開關掣切換至ON時，抽油煙機即接上 connected with power and at stand-by status. 電源，處於待機狀態，可啟動機上任何功 All functions can be activated. 能。 - When it is switched to OFF, all functions including - 當總開關掣切換至OFF時，機上所有功能，...
- Page 10 操作說明 Operation Instructions IV. LED 燈 IV. LED Light - Note: Make sure the range hood is in stand-by - 注意：使用LED照明前，請先確認 status before activating LED lighting. 本機處於待機狀態。 - Press the LED Light button to turn it on. - 按LED燈鍵 開啟照明。 - Press the button again to turn it off.
-
Page 11: 清潔與保養 Care & Maintenance
清潔與保養 Care & Maintenance Important 重要事項 - To ensure the most optimum efficiency, the range - 為達致本產品的最佳效能，用戶應最少每週 hood must be cleaned at least once a week. 清洗抽油煙機一次。 - There is a risk of fire if repair and cleaning of - 如用戶不依照本說明書指示進行維修或清潔 the range hood (especially the fan and other 保養... -
Page 12: 常見故障及處理 Troubleshooting
常見故障及處理 Troubleshooting If you encounter the following common troubles, 如遇以下一般性故障，請按以下指示處理， please solve according to the following instructions. 如仍處理不了或未發現故障原因時，請與本 If the problem cannot be solved or a cause cannot 公司維修服務中心聯繫。 be found, please contact our customer services centre. Note: For safety purpose, do not dismantle the 注意：為安全著想，再次特別提醒，請勿自... -
Page 13: 技術規格 Technical Specifications
技術規格 Technical Specifications 型號 Model RHM-6328 RHM-7328 電壓 Voltage / 頻率 Frequency 220-240 V / 50 Hz 220-240 V / 50 Hz 功率 Power 380 ~ 420 W 380 ~ 420 W 照明燈 Lighting 6 W (1 W LED x 2) 6 W (1 W LED x 2) 摩打轉速 Motor Speed... - Page 14 技術規格 Technical Specifications 型號 Model RHM-6428 RHM-7428 電壓 Voltage / 頻率 Frequency 220-240 V / 50 Hz 220-240 V / 50 Hz 功率 Power 380 ~ 420 W 380 ~ 420 W 照明燈 Lighting 6 W (1 W LED x 2) 6 W (1 W LED x 2) 摩打轉速 Motor Speed Max.
-
Page 15: 保用條款 Warranty Terms & Conditions
- 機身編號被擅自塗改、破壞或刪除。 - serial number is modified, damaged or removed from the product. 4. 總代理有權選擇維修或更換配件或其損壞部份。 4. German Pool will, in its discretion, repair or replace any defective part. 5. 產品一經被轉讓，其保用即被視作無效。 5. This warranty will be void if there is any transfer of ownership from the original purchaser. - Page 16 電話 Tel: +86 757 2980 8308 傳真 Fax: +86 757 2980 8318 © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. RHM-SERIES-M-12(1)
