Summary of Contents for German pool 2102-28

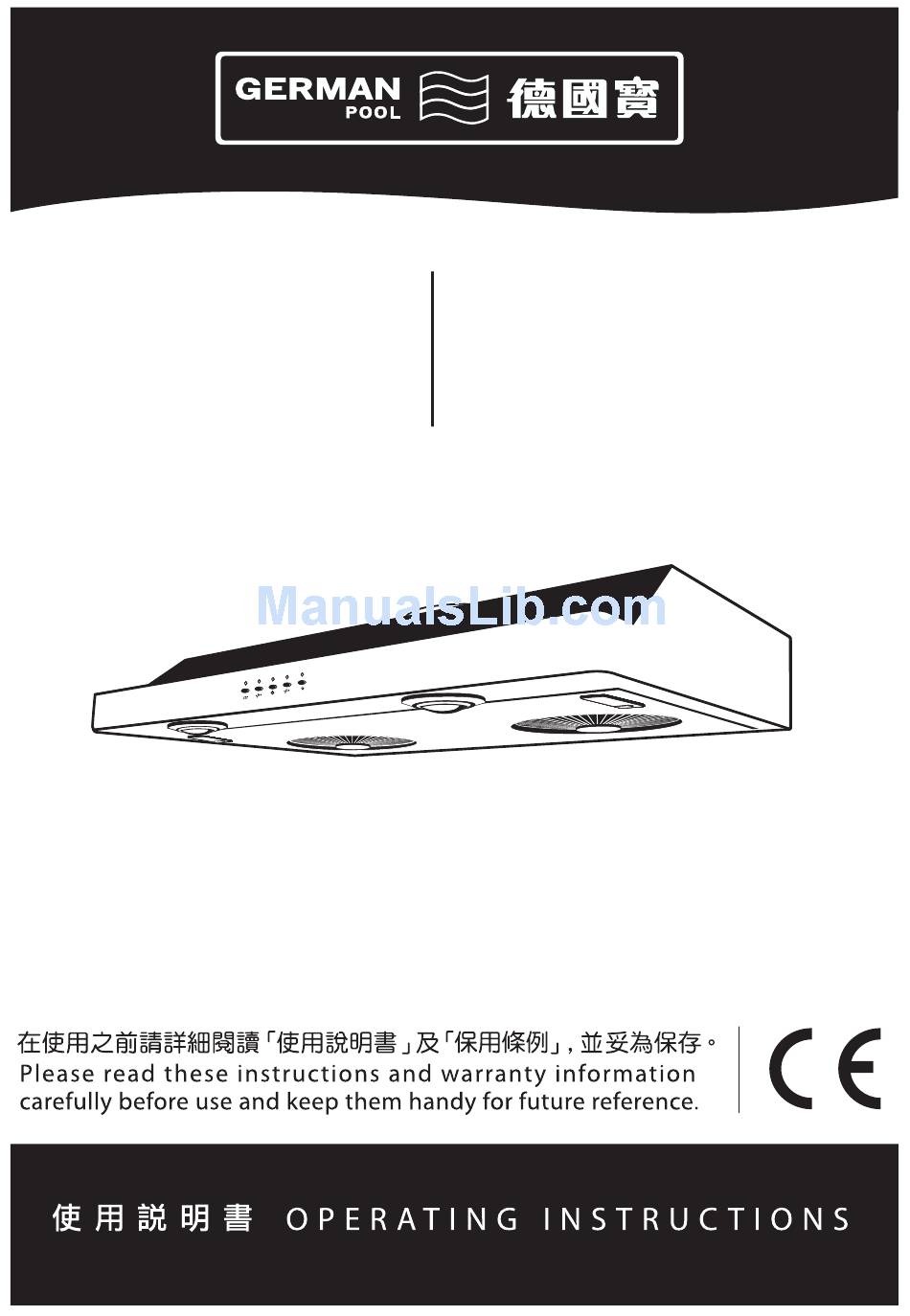

- Page 1 2102-28 台 式 抽 油 煙 機 Wall-mount Range Hood 2102-36...
- Page 2 如欲獲取更多有關本產品最新資訊及食譜，歡迎瀏覽本公司網站 For additional product information and cooking recipes, please visit our website w w w . g e r m a n p o o l . c o m...
-
Page 3: Table Of Contents
目錄 Table of Contents 注意事項 Notice Before Use 產品結構 Product Structure 操作面板 Control Panel 安裝說明 Installation Instructions 清潔與保養 Care & Maintenance 技術規格 Technical Specifications 保用條款 Warranty Terms & Conditions... -
Page 4: 注意事項 Notice Before Use
6 inches in diameter should be used. 9. To protect electrical parts, do not splash 9. 請勿直接潑水噴淋機身，以免損壞電器機件。 or spray the range hood with water. 10. German Pool range hood has high venting 10.德國寶抽油煙機抽吸力特強，大部分油煙在 efficiency. Most of the grease vapor will 抽油煙機操作時已被抽出室外，故此集油器... - Page 5 注意事項 Notice Before Use 11. The air must not be discharged into a venting 11. 抽油煙機不可與燃氣或使用其他能源之器 pipe that is used for exhausting fumes from 具共同使用同一排放管道。 appliances burning gas or other fuels. 12. There should be adequate ventilation of the 12. 當使用抽油煙機時，如房間內同時使用燃氣 room when the range hood is used along with 或其他能源的器具，房間必須有足夠通風。...
-
Page 6: 產品結構 Product Structure
產品結構 Product Structure 1. Hood Body 1. 機身 2. Control Panel 2. 操作面板 3. Lighting 3. 照明燈 4. Bottom Cover 4. 底蓋 5. Motor (Left) 5. 左風機 6. Motor (Right) 6. 右風機 7. Turbine Impeller 7. 風輪 8. Locking Caps 8. 鎖緊帽... -
Page 7: 操作面板 Control Panel
操作面板 Control Panel 照明鍵 風速鍵 電源鍵 風速鍵 電源鍵 Lighting Button Speed Button Power Button Speed Button Power Button... -
Page 8: 安裝說明 Installation Instructions
安裝說明 Installation Instructions I. Height Of Installation I. 安裝高度 抽油煙機底部距離爐面 85-105cm之間為宜， The appliance should be positioned 85-105cm 若機身能越接近爐面，抽油煙效果越佳。 above the cooking range. The shorter the distance between the appliance and the stove, the higher the venting efficiency. 牆壁 Wall 掛耳 Mounting Brackets 176mm 操作... -
Page 9: 清潔與保養 Care & Maintenance
清潔與保養 Care & Maintenance Important: 重要事項﹕ - To ensure the most optimum efficiency, the range - 為達致本產品的最佳效能，用戶應最少每週 hood must be cleaned at least once a week. 清洗抽油煙機一次。 - There is a risk of fire if the cleaning of the Turbine - 如用戶不依照本說明書指示清洗本產品之風 Impeller and other easily-soiled parts is not 輪及易沾油污的部份，有可能會導致火警。... -
Page 10: 技術規格 Technical Specifications
技術規格 Technical Specifications 2102-28 2102-36 Model 型號 220 V / 50 Hz 220 V / 50 Hz Voltage 電壓 240 W 240 W Rated Power 功率 1155 m³/hr 1155 m³/hr Exhaust Flow Rate 排風量 10 W X 2 10 W X 2 Watt. -
Page 11: 保用條款 Warranty Terms & Conditions
- 機身編號被擅自塗改、破壞或刪除。 - serial number is modified, damaged or removed from the product. 4. 總代理有權選擇維修或更換配件或其損壞部份。 4. German Pool will, in its discretion, repair or replace any defective part. 5. 產品一經被轉讓，其保用即被視作無效。 5. This warranty will be void if there is any transfer of ownership from the original purchaser. - Page 12 SGV-2618-M-10(2) 2102-M-10(2)
