Structural Concepts FSI856R Installation & Operating Manual page 4

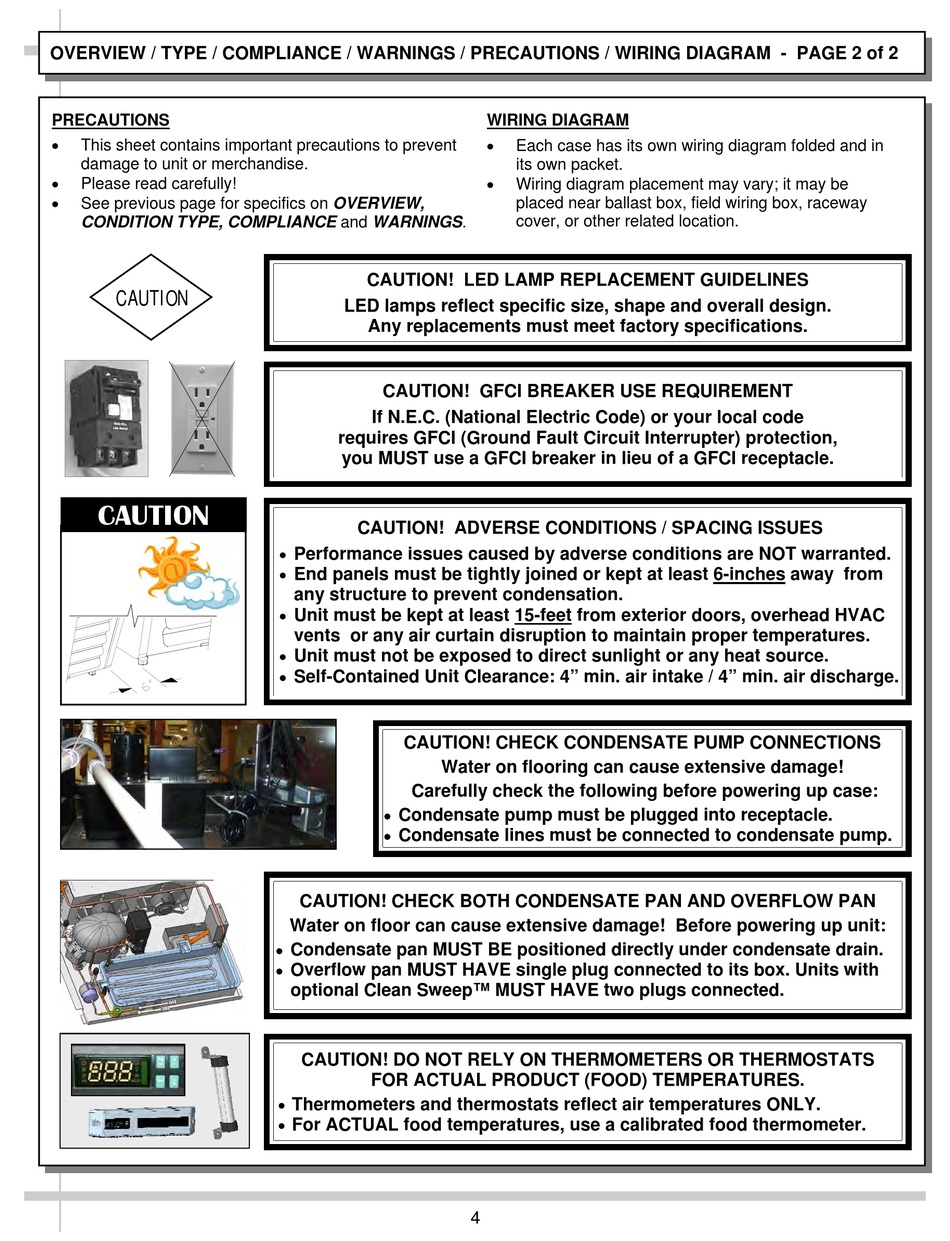

OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM - PAGE 2 of 2
PRECAUTIONS

This sheet contains important precautions to prevent
damage to unit or merchandise.

Please read carefully!

See previous page for specifics on OVERVIEW,
CONDITION TYPE, COMPLIANCE and WARNINGS.
CAUTION
CAUTION
CAUTION! LED LAMP REPLACEMENT GUIDELINES
LED lamps reflect specific size, shape and overall design.
Any replacements must meet factory specifications.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES

Performance issues caused by adverse conditions are NOT warranted.

End panels must be tightly joined or kept at least 6-inches away from
any structure to prevent condensation.

Unit must be kept at least 15-feet from exterior doors, overhead HVAC
vents or any air curtain disruption to maintain proper temperatures.

Unit must not be exposed to direct sunlight or any heat source.

Self-Contained Unit Clearance: 4" min. air intake / 4" min. air discharge.
CAUTION! CHECK CONDENSATE PUMP CONNECTIONS
Water on flooring can cause extensive damage!
Carefully check the following before powering up case:

Condensate pump must be plugged into receptacle.

Condensate lines must be connected to condensate pump.
CAUTION! CHECK BOTH CONDENSATE PAN AND OVERFLOW PAN
Water on floor can cause extensive damage! Before powering up unit:

Condensate pan MUST BE positioned directly under condensate drain.

Overflow pan MUST HAVE single plug connected to its box. Units with
optional Clean Sweep™ MUST HAVE two plugs connected.
CAUTION! DO NOT RELY ON THERMOMETERS OR THERMOSTATS
FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.

Thermometers and thermostats reflect air temperatures ONLY.

For ACTUAL food temperatures, use a calibrated food thermometer.
WIRING DIAGRAM

Each case has its own wiring diagram folded and in
its own packet.

Wiring diagram placement may vary; it may be
placed near ballast box, field wiring box, raceway
cover, or other related location.
4
