Module Replacement
2.3.4 Installing the Cover
5.
6.
42

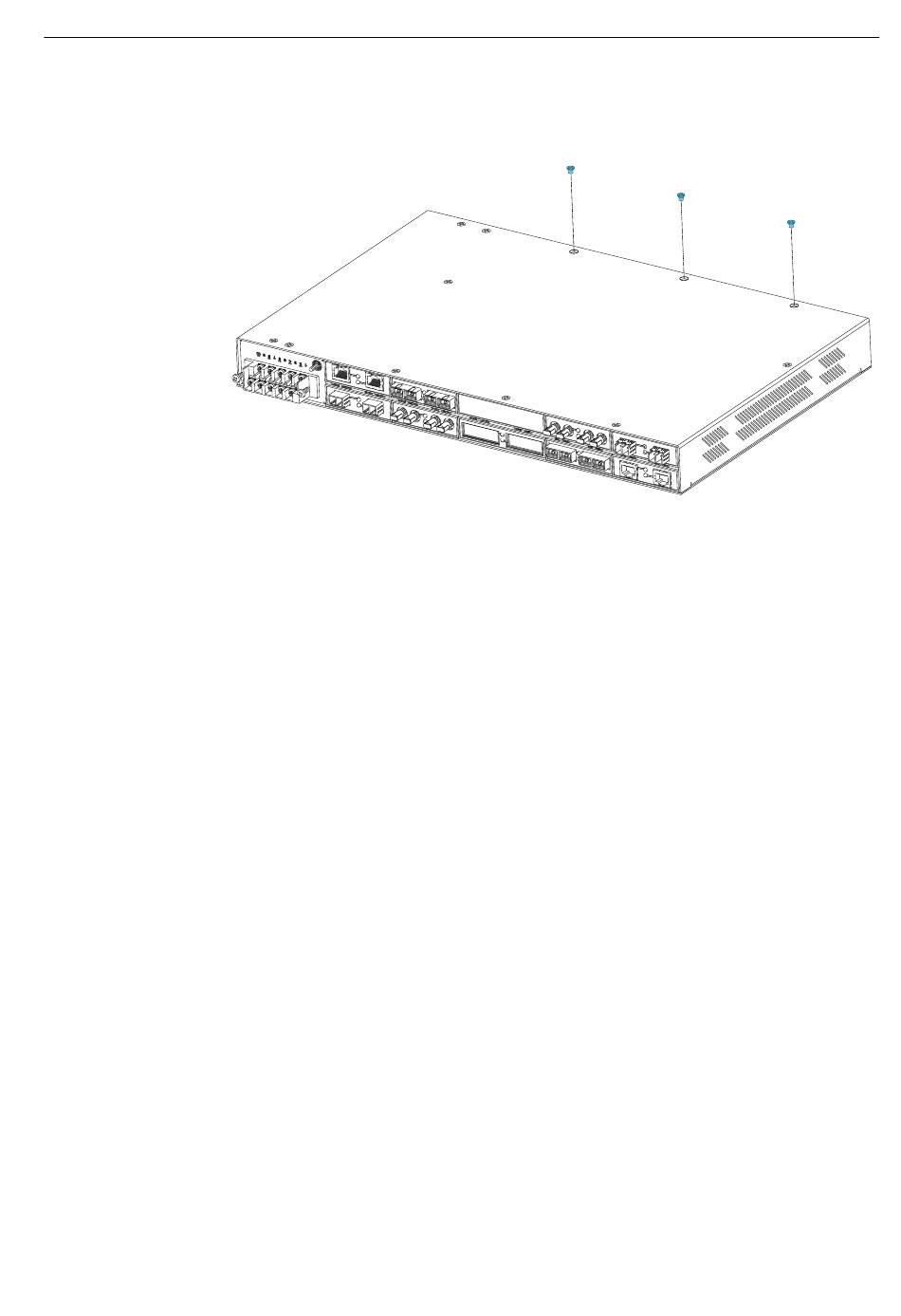

Install the three Torx screws indicated.
Figure 2.36
Installing the Bottom Screws
Carefully flip the device right-side up.
RUGGEDCOM RSG2100
Service Manual, 07/2019, C79000-G8976-1151
