Module Replacement
2.2.1 Removing the Cover
7.
10
If the LED display is on the top cover, open the front cover slightly and discon-
nect the ribbon cable that connects the display to the mainboard.

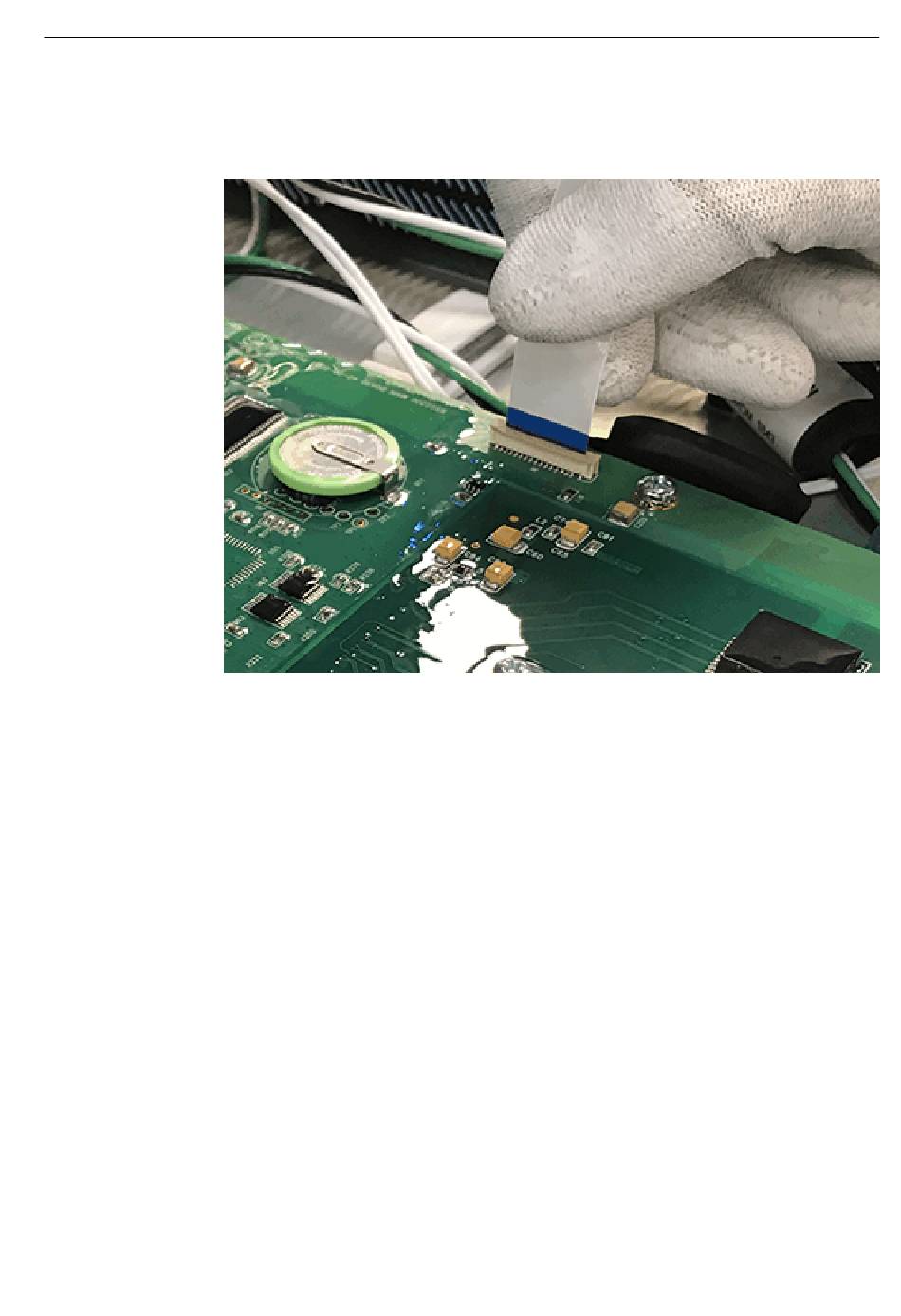

Figure 2.3
Disconnecting the LED Display Ribbon Cable
RUGGEDCOM RSG2100
Service Manual, 07/2019, C79000-G8976-1151
