6.
RUGGEDCOM RSG2100
Service Manual, 07/2019, C79000-G8976-1151
Remove the eleven Torx screws indicated.

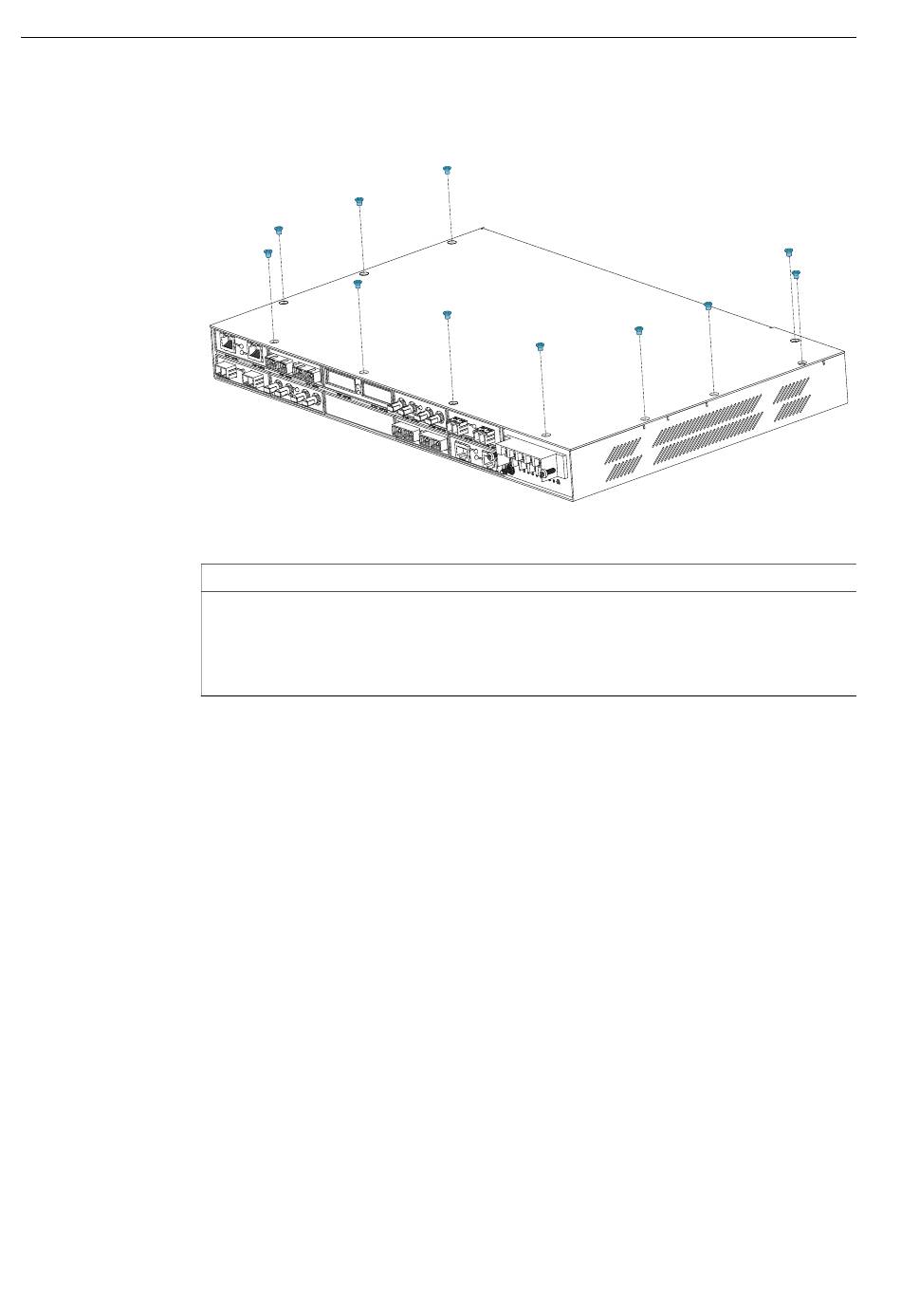

Figure 2.2
Removing the Top Screws
NOTICE
Connection hazard – risk of damage to the device.
Use caution when disconnecting the ribbon cable from the mainboard. Make
sure to pull up gently until the connector is free. Excess force on the connector
may damage the mainboard.
Module Replacement
2.2.1 Removing the Cover
9
