5.
RUGGEDCOM RSG2100
Service Manual, 07/2019, C79000-G8976-1151

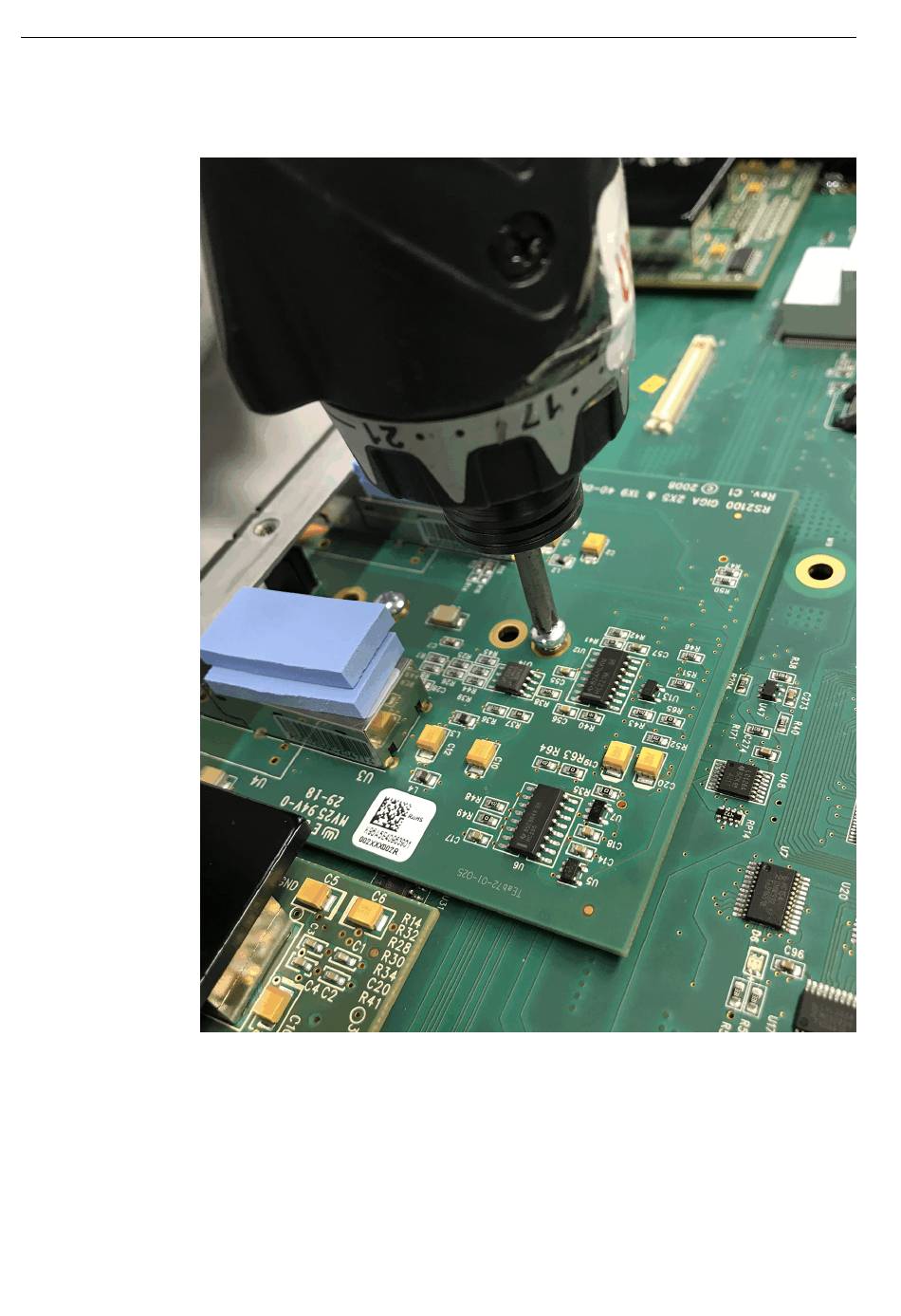

Secure the module to the main inner assembly with two Philip head screws.
Figure 2.22
Securing the Module
Module Replacement
2.3.2 Installing a Module
29
