Instructions

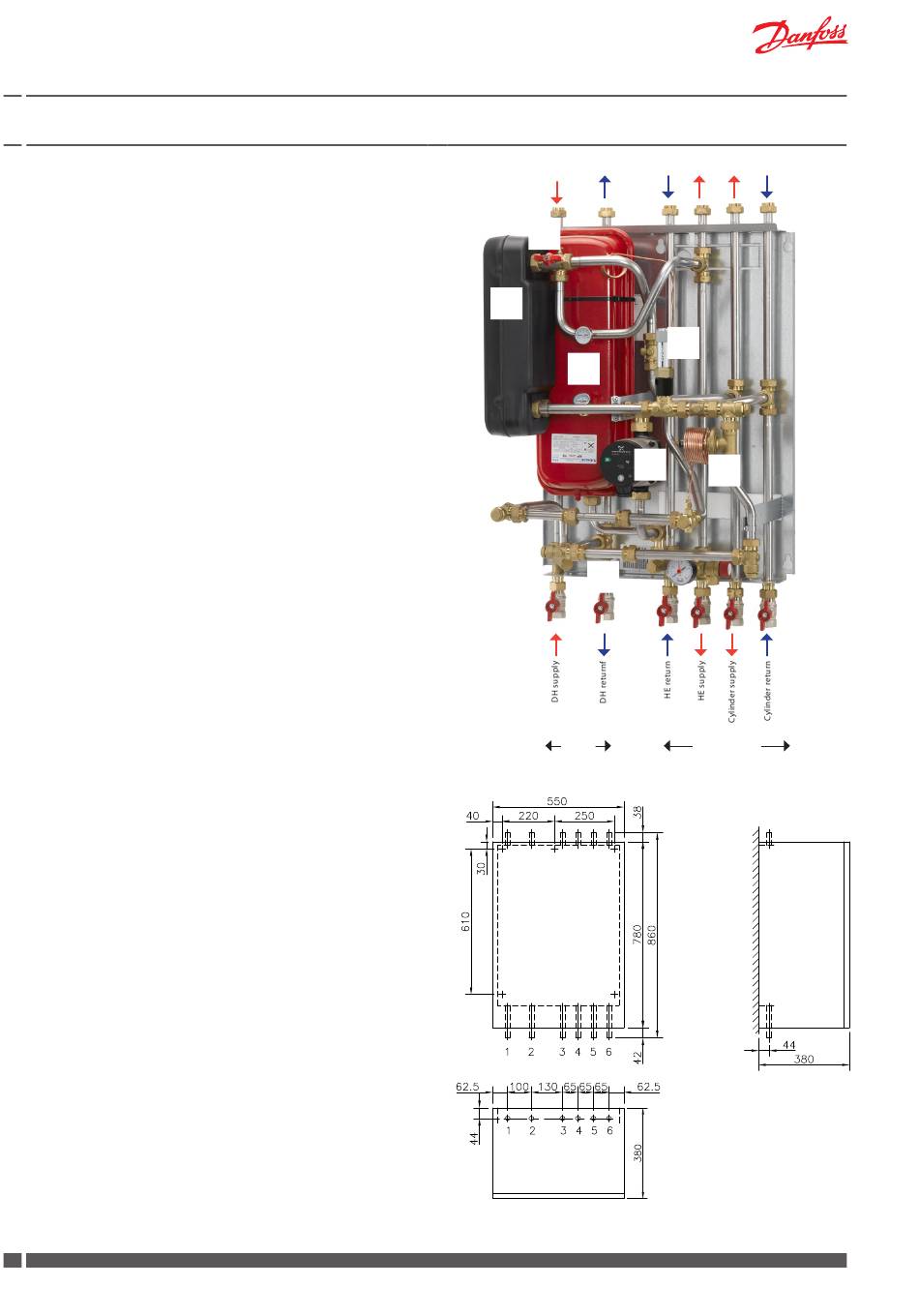

6.0 Main components

6.1 VX Solo II (T°C ) - 1 HE circuit + prim. connection for DHW cylinder
1 Plate heat exchanger
4 Differential pressure controller
8 Circulation pump, HE
16 Expansion vessel
17 Air valve
24 Fitting piece for heat meter
30 Thermostat T°C 200
The substations offer variable connection possibilities, as
connection of pipes can be established both in the top or in
the bottom of the substation.
Please note:
Your substation may look different than the substation shown, as
variants with other components may be supplied. The control func-
tion, however, is basically as stated in this instruction manual.
Instructions for the fitted components will be supplied together with
the substation.
Measurements:
Dimensions without cover
H860 x W510 x D345 mm
Dimensions with cover
H860 x W550 x D380 mm
Connections:
Order:
1 District heating (DH) supply
2 District heating (DH) return
3 Heating (HE) return
4 Heating (HE) supply
5 Cylinder supply
6 Cylinder return
Connection sizes (example:
DH: G¾ (ET)
HE: G¾ (IT)
12 DKDHR
VX Solo II
17
1
24
top view
VI.GP.P1.02
30
16
8
4
24
Primary Secundary
Wall
Danfoss District Energy
