Instructions

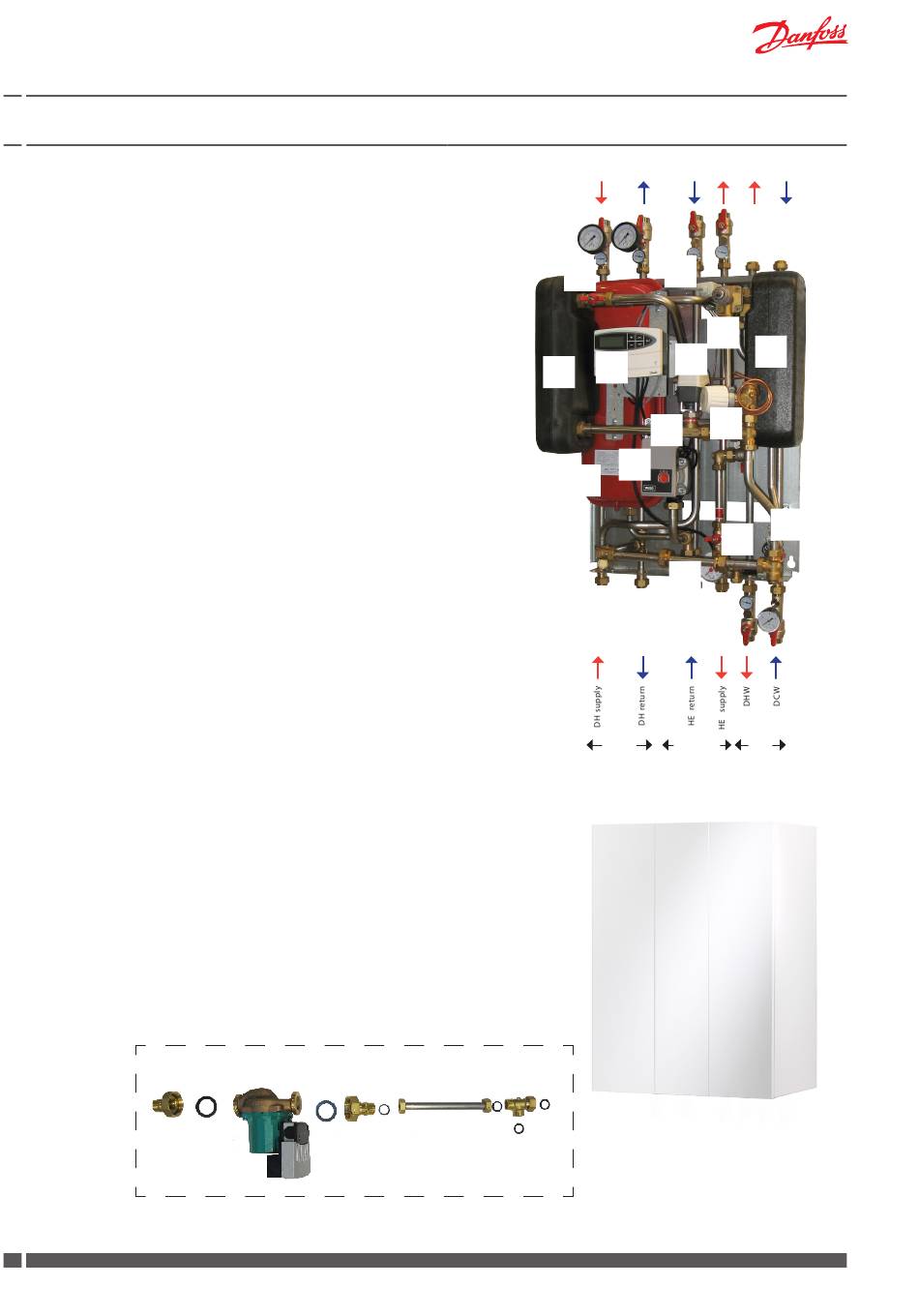

6.0 Main components

6.1 Akva Lux II VX2

1 Plate heat exchanger HE
2 Plate heat exchanger DHW
8 Pump, HE
11 Safety valve HE
12 Safety vale DHW
16 Expansion vessel
17 Air valve
22 Safety thermostat
24 Fitting piece for heat meter
25 Electronic controller ECL110
29 Actuator AMV 150
30 2-way valve VS 2
38 PTC2+P controller
40 Danfoss thermostat for bypass/circulation
The substations offer variable connection possibilities, as con-
nection of pipes can be established both in the top or in the
bottom of the substation.
Please note:
Your substation may look different than the substation shown, as vari-
ants with other components may be supplied. The control function,
however, is basically as stated in this instruction manual.
Instructions for the fitted components will be supplied together with
the substation.
Accessories to be ordered separately (mounting on site):
Circulation set - Art. No. 810.441
For systems with DHW circulation.
White-lacquered steel-sheet cover
Art. No. 936.0811
810.441
8
DKDHR
Akva Lux II VX
VI.GP.V2.02
22
17
38
29
25
1
40
30
8
16
11
24
Secondary
Primary
936.0811
Danfoss District Energy
2
12
DHW
