6.5 VX Solo II HWS (ECL 210/A237.1a) - 1 HE circuit + sec. connection for DHW cylinder

1 Plate heat exchanger
8 Circulation pump, HE
8A Circulation pump, Cylinder
16 Expansion vessel
24 Fitting piece for heat meter
25 Electronic controller
29 Actuator AMV 150
30 Flow controller with integrated control valve AHQM
The substations offer variable connection possi-
bilities, as connection of pipes can be established
both in the top or in the bottom of the substa-
tion.
Please note:
Your substation may look different than the substation shown, as
variants with other components may be supplied. The control func-
tion, however, is basically as stated in this instruction manual.
Instructions for the fitted components will be supplied together with
the substation.

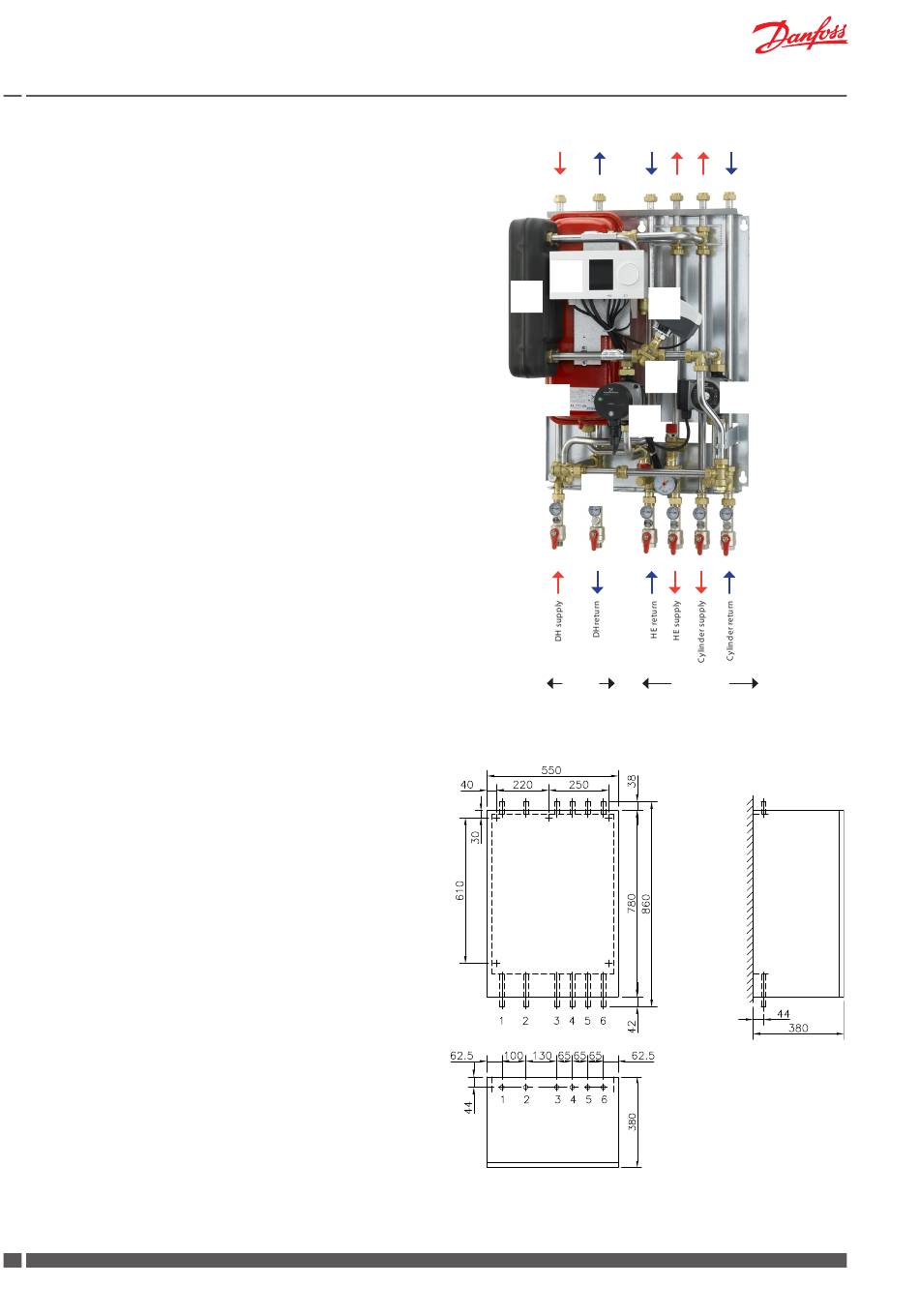

Measurements:
Dimensions without cover
H860 x W530 x D365 mm
Dimensions with cover
H860 x W550 x D380 mm
Connections:
Order:
1 District heating (DH) supply
2 District heating (DH) return
3 Heating (HE) return
4 Heating (HE) supply
5 Cylinder (FH) supply
6 Cylinder (FH) return
Connection sizes (example:
DH: G¾ (ET)
HE + FH: G¾ (IT)
16 DKDHR
VX Solo II
1
16
top view
VI.GP.P1.02
25
29
30
8A
8
24
Primary Secundary
Wall
