5.0 Diagrams - examples

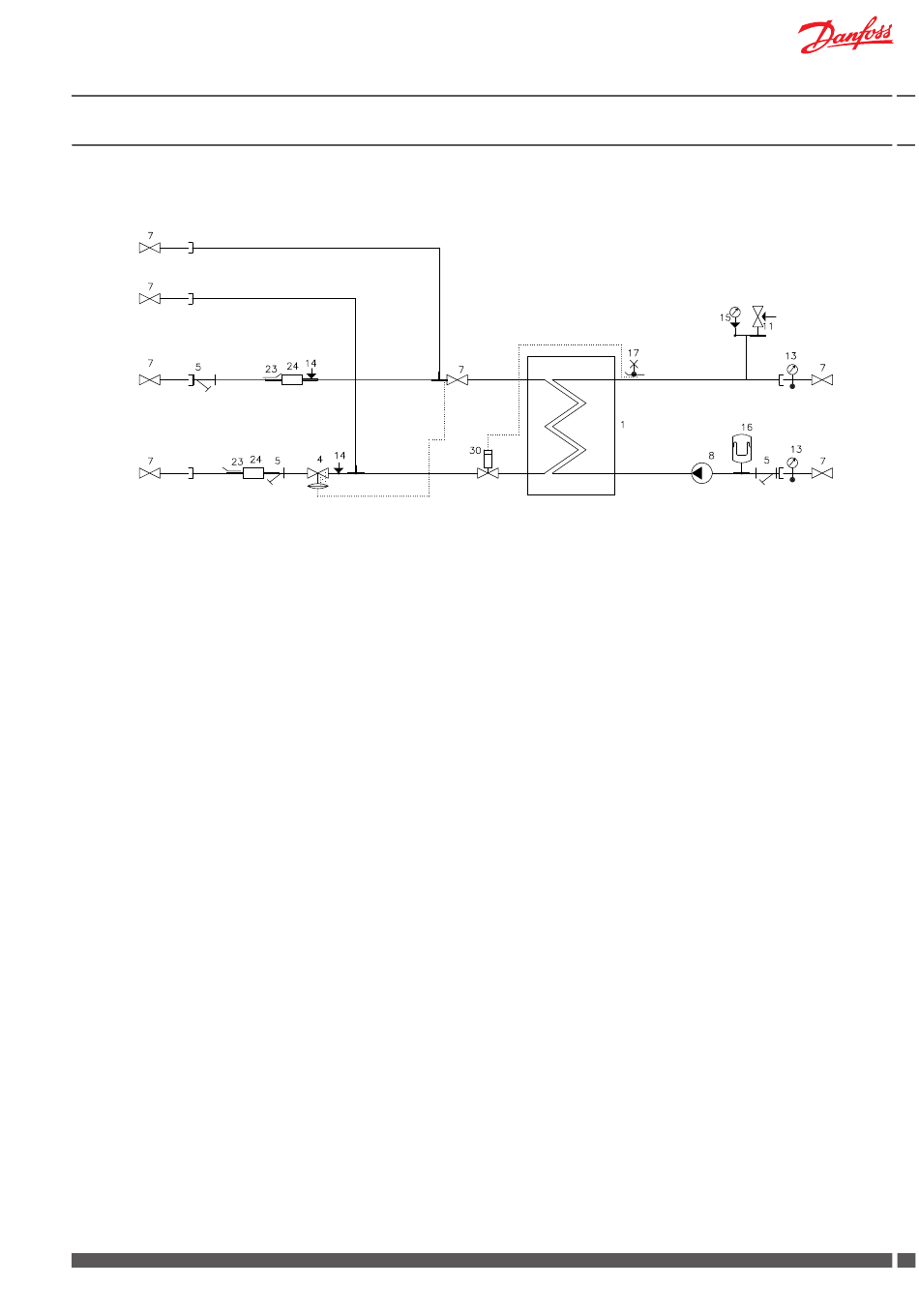

5.1 VX Solo II (T°C 200u) - 1 HE ciruit + primary connection pipes for cylinder
DH
Supply
DH
Return
1 Plate heat exchanger, HE, with insulation
4 Differential pressure controller AVPL
5 Strainer
7 Ball valve
8 Circulation pump HE
11 Safety valve, HE 2.5 bar
13 Thermometer
14 Pocket for pressure gauge
15 Manometer
16 Expansion vessel
17 Air vent
23 Sensor pocket for heat meter ½"
24 Fitting piece for heat meter, 3/4" x 110 mm
30 Self-acting thermostatic valve T°C 200/VS 2-15
Danfoss District Energy
VX Solo II
VI.GP.P1.02
HE
Supply
HE
Return
3 3
