Instructions

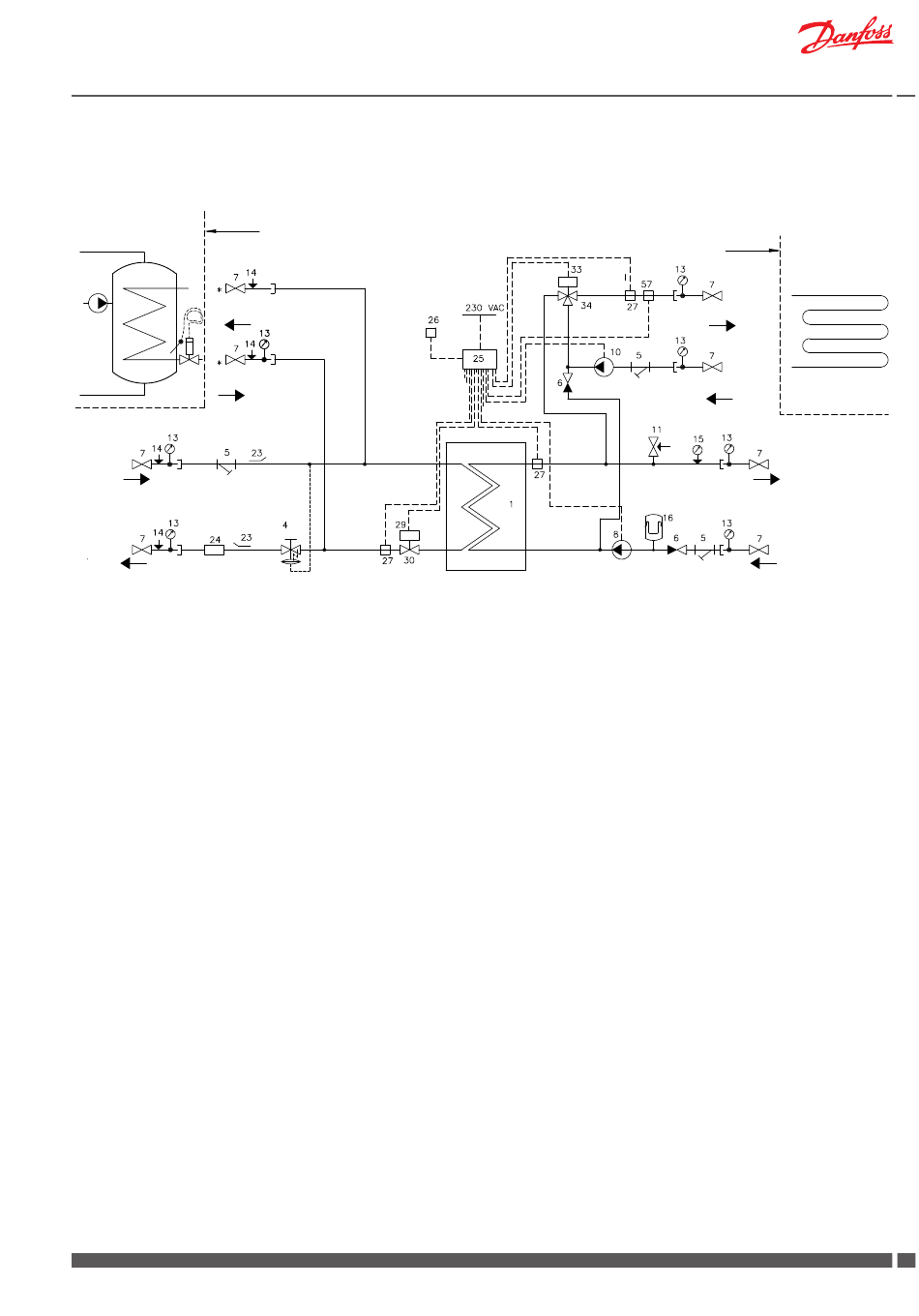

5.7 VX Solo II H2WP (ECL 210/A260.1d) - 2 HE circuit + primary connection pipes for DHW cylinder
Supply limit
Cylinder
DH
Supply
DH
Return
1 Plate heat exchanger, HE, with insulation
4 Differential pressure controller with flow limitation AVPB-F
5 Strainer
6 Non-return valve
7 Ball valve
8 Circulation pump HE
10 Circulation pump FH
11 Safety valve, HE
13 Thermometer
14 Pocket for pressure gauge
15 Manometer
16 Expansion vessel
23 Sensor pocket for heat meter ½"
24 Fitting piece for heat meter, 3/4" x 110 mm
25 Controller Danfoss ECL 210/A260.1d
26 Outdoor sensor Danfoss ESMT
27 Sensor Danfoss ESMC
29 Danfoss actuator AMV13
30 2-way valve VS2
33 Danfoss actuator AMV150
34 3-way valve VMV 30/15
57 Safety temperature monitor Jumo AT
Danfoss District Energy
VX Solo II
Cylinder
Supply
Cylinder
Return
VI.GP.P1.02
Supply limit
FH
Supply
FH
Return
HE
Supply
HE
Return
DKDHR
9 9
