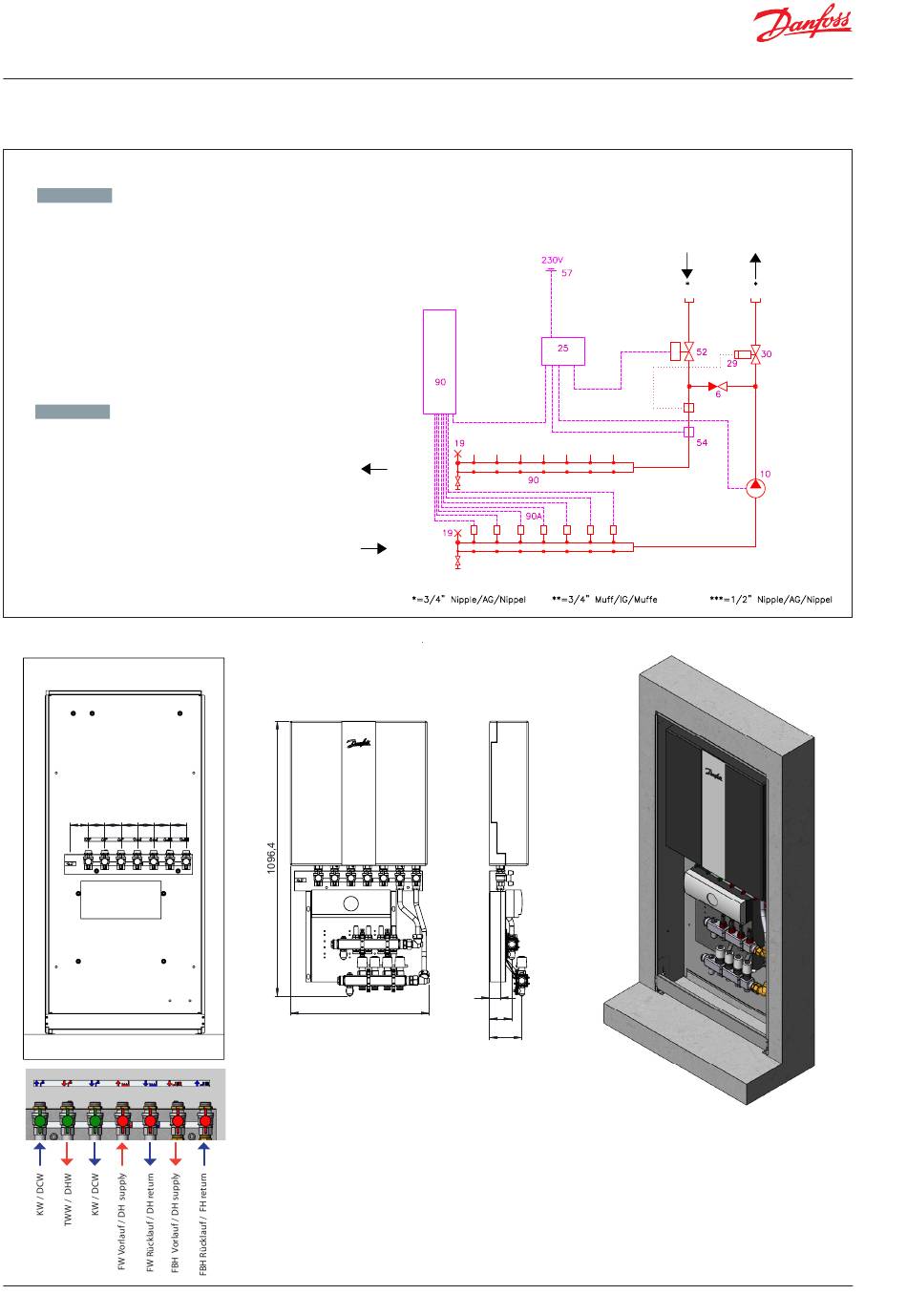

5. HAUPTKOMPONENTE & ANSCHLUSS / MAIN COMPONENTS & CONNECTION
GERMAN - DE
6 Rückschlagklappe
10 Pumpe Wilo Yonos 15/6
19 Endstück mit manueller Entlüftung
25 Danfoss Regler ECL 110
29 Stellantrieb AMV 140
30 Danfoss Ventil VS2, kVs 1,0
52 Zonenventil Danfoss VMT/TWA-V
54 Sicherheitsthermostat
57 Stecher
58 Verteiler mit 7 Anschlüssen, mit Durchflussmesser
90 Danfoss FH-WC Regler
90A Thermo-Motor Danfoss TWA-A NC 230 V
ENGLISH - GB
6 Non-return valve
10 Pump Wilo Yonos 15/6
19 Manual air vent and drain valve
25 Danfoss Controller ECL 110
29 Actuator AMV 140
30 Danfoss valve VS2, kVs 1,0
52 Zone valve Danfoss VMT/TWA-V
54 Safety thermostat
57 Plug
58 Manifold w. 7 connecting pieces, with flow meter
90 Danfoss FH-WC controller
90A Thermo-actuator Danfoss TWA-A NC 230 V
1
2
74
cirk. 65 65 65 65 65 65
1
2
