à The DO operating mode is disabled in the event of a fire alarm. SIS and SIO are not evaluated in the event of a
fire alarm. The door closes upon expiration of the set servo duration (
à The additional servo torque (
à Safety sensor "open" (SIO) is not evaluated in the event of an activated "Fire alarm" function. The drive pushes
against an obstacle in the opening direction with the set additional servo torque.
à Safety sensor "close" (SIS) is not evaluated in the event of an activated "Fire alarm" function. The drive pushes
against an obstacle in the closing direction with the set spring force and the set closing torque.
0-40 Nm
23

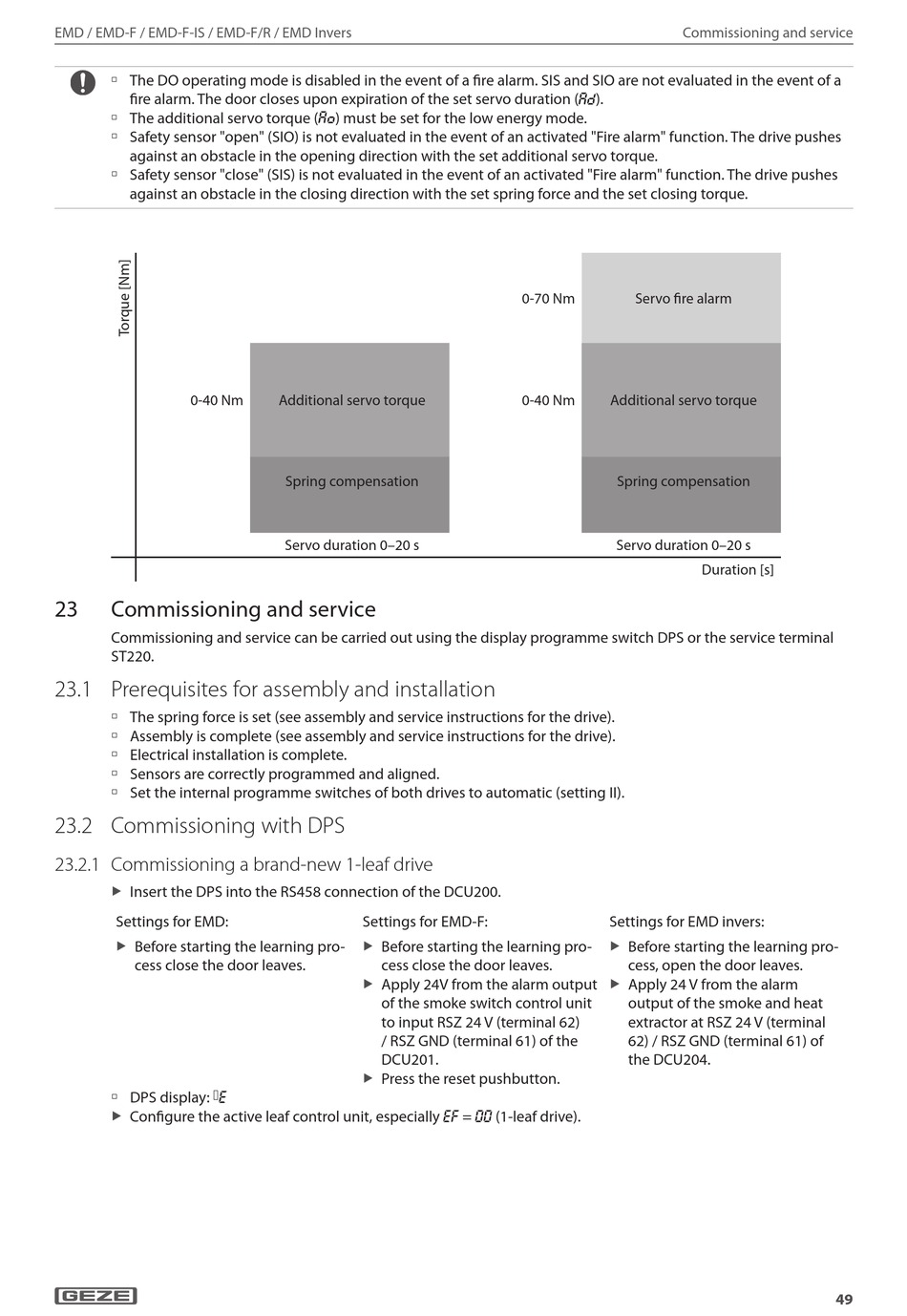

Commissioning and service

Commissioning and service can be carried out using the display programme switch DPS or the service terminal
ST220.

23.1 Prerequisites for assembly and installation

à The spring force is set (see assembly and service instructions for the drive).
à Assembly is complete (see assembly and service instructions for the drive).
à Electrical installation is complete.
à Sensors are correctly programmed and aligned.
à Set the internal programme switches of both drives to automatic (setting II).

23.2 Commissioning with DPS

23.2.1 Commissioning a brand-new 1-leaf drive
Insert the DPS into the RS458 connection of the DCU200.
X
Settings for EMD:
Before starting the learning pro-
X
cess close the door leaves.
à DPS display:
e
Configure the active leaf control unit, especially
X
) must be set for the low energy mode.
aO
Additional servo torque
Spring compensation
Servo duration 0–20 s
Settings for EMD-F:
Before starting the learning pro-
X
cess close the door leaves.
Apply 24V from the alarm output
X
of the smoke switch control unit
to input RSZ 24 V (terminal 62)
/ RSZ GND (terminal 61) of the
DCU201.
Press the reset pushbutton.
X
ef
).
aD
0-70 Nm
0-40 Nm Additional servo torque
Spring compensation
Servo duration 0–20 s
Settings for EMD invers:
Before starting the learning pro-
X
cess, open the door leaves.
Apply 24 V from the alarm
X
output of the smoke and heat
extractor at RSZ 24 V (terminal
62) / RSZ GND (terminal 61) of
the DCU204.
= (1-leaf drive).
00
Commissioning and service
Servo fire alarm
Duration [s]
49
