Commissioning
12 13 18 19 27 29
24V or 10-30V encoder

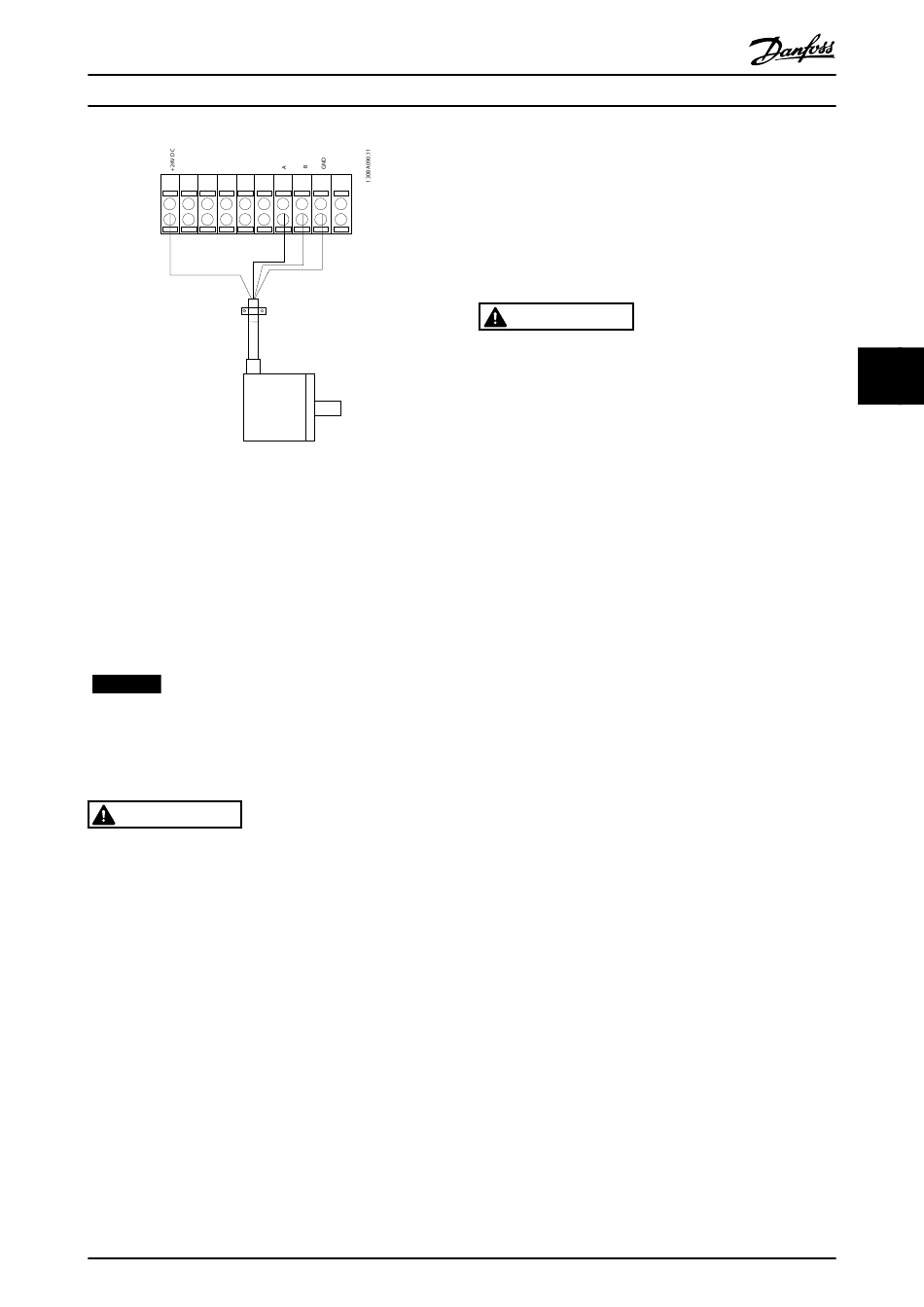

Illustration 5.5 Wiring Diagram
2. Enter the Speed PID feed-back source in
7-00 Speed PID Feedback Source.
3. Press [Hand On].
4. Press [►] for positive speed reference
(1-06 Clockwise Direction at [0] Normal).
5. Check in 16-57 Feedback [RPM] that the feed-back
is positive.
NOTICE
If the feedback is negative, the
encoder connection is wrong!

5.7 Local-control Test

WARNING
MOTOR START!
Ensure that the motor, system, and any attached
equipment are ready for start. It is the responsibility of
the user to ensure safe operation under any condition.
Failure to ensure that the motor, system, and any
attached equipment is ready for start could result in
personal injury or equipment damage.
1. Press [Hand On] to provide a local start command
to the frequency converter.
2. Accelerate the frequency converter by pressing
▲
[ ] to full speed. Moving the cursor left of the
decimal point provides quicker input changes.
3. Note any acceleration problems.
4. Press [Off]. Note any deceleration problems.
In the event of acceleration or deceleration problems, see
7.5 Troubleshooting. See 7.4 List of Warnings and Alarms for
resetting the frequency converter after a trip.
®
VLT AutomationDrive FC 301/302 Operating Instructions
32 33 20 37
MG33AN02 - Rev. 2013-09-06

5.8 System Start-up

The procedure in this section requires user-wiring and
application programming to be completed. The following
procedure is recommended after application set-up is
completed.
WARNING
MOTOR START!
Ensure that the motor, system, and any attached
equipment are ready for start. It is the responsibility of
the user to ensure safe operation under any condition.
Failure to ensure that the motor, system, and any
attached equipment is ready for start could result in
personal injury or equipment damage.
1. Press [Auto On].
2. Apply an external run command.
3. Adjust the speed reference throughout the speed
range.
4. Remove the external run command.
5. Check sound and vibration level of the motor to
ensure that the system is working as intended.
If warnings or alarms occur, see 7.4 List of Warnings and
Alarms.
