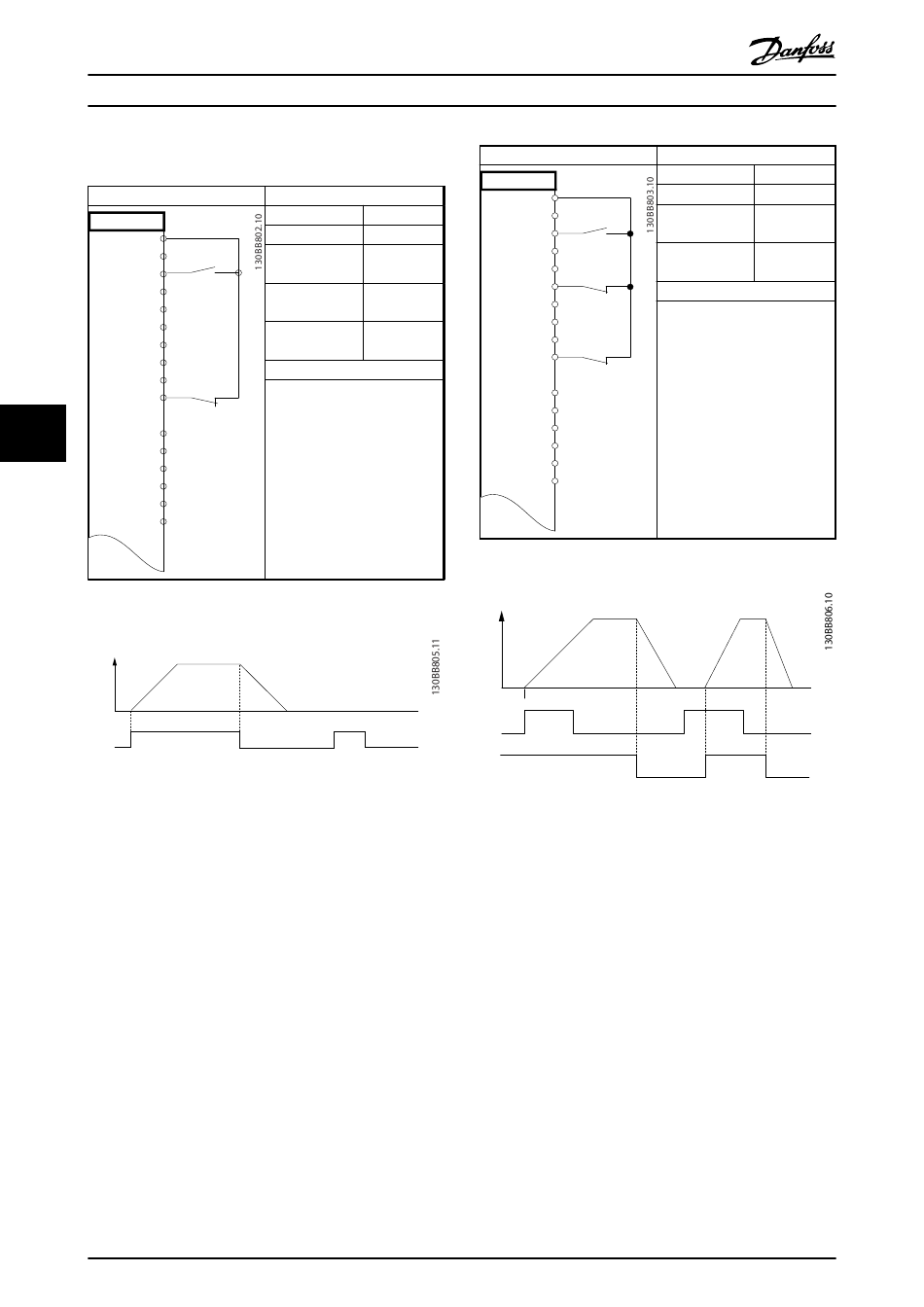

Application Set-up Examples
6.1.3 Start/Stop
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
32
D IN
D IN 33
D IN
37
6 6
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.7 Start/Stop Command with Safe Stop Option
Speed
Start (18)
Illustration 6.2 Start/Stop Command with Safe Stop
30
®
VLT AutomationDrive FC 301/302 Operating Instructions
Parameters
Function Setting
5-10 Terminal 18 [8] Start*
Digital Input
5-12 Terminal 27 [0] No
Digital Input operation
5-19 Terminal 37 [1] Safe Stop
Safe Stop Alarm
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
MG33AN02 - Rev. 2013-09-06
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
32
D IN
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Illustration 6.3 Latched Start/Stop Inverse
Parameters
Function Setting
5-10 Terminal 18 [9] Latched
Digital Input Start
5-12 Terminal 27 [6] Stop
Digital Input Inverse
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
