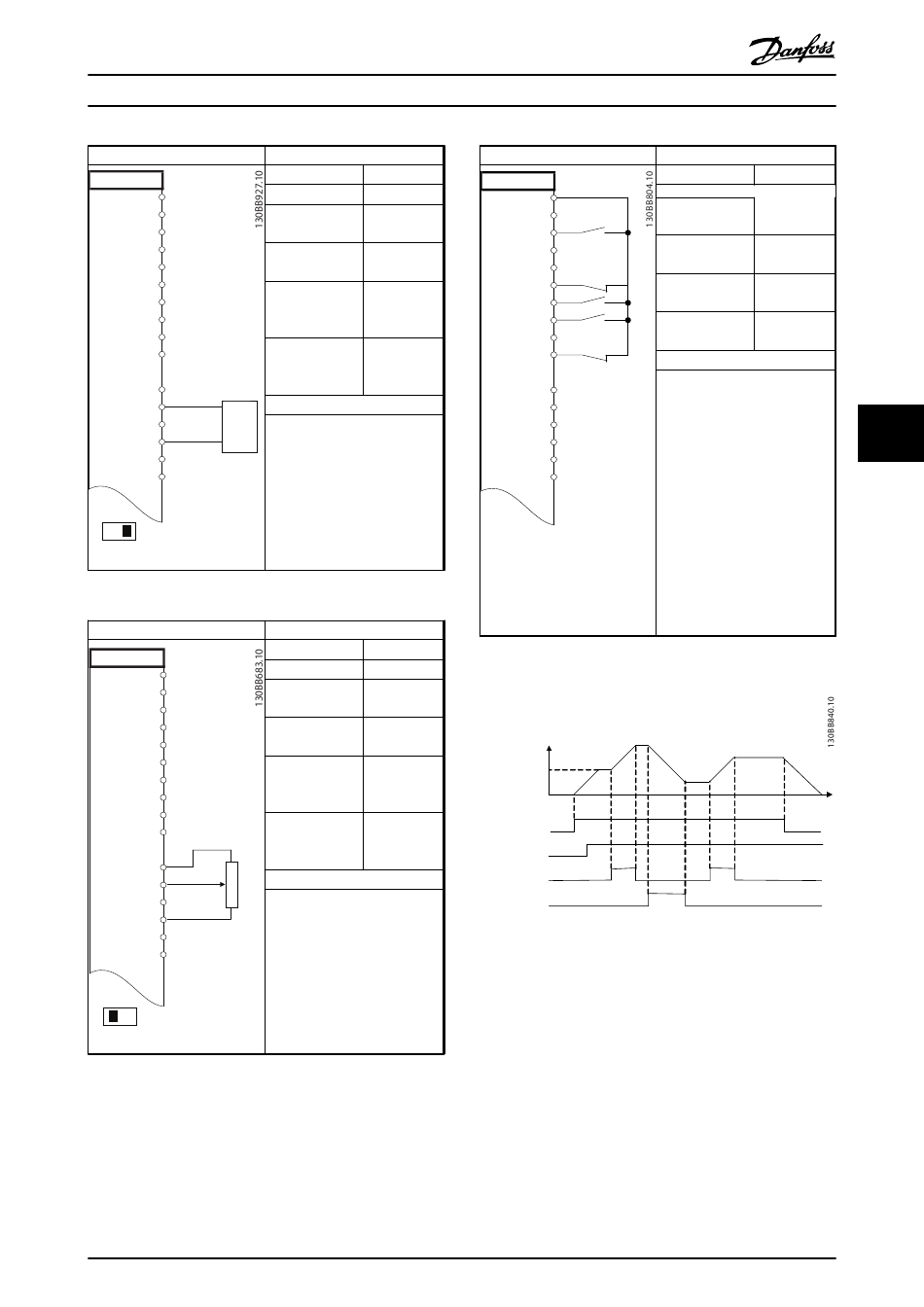

Danfoss VLT AutomationDrive FC 301 Operating Instructions Manual page 31

Application Set-up Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Table 6.4 Analog Speed Reference (Current)
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53 ≈ 5kΩ
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.5 Speed Reference (Using a Manual Potentiometer)
®
VLT AutomationDrive FC 301/302 Operating Instructions
Parameters
Function Setting
6-12 Terminal 53 4 mA*
Low Current
6-13 Terminal 53 20 mA*
High Current
6-14 Terminal 53 0 Hz
Low Ref./Feedb.
Value
6-15 Terminal 53 50 Hz
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
D IN 37 is an option.
Parameters
Function Setting
6-10 Terminal 53
Low Voltage 0.07 V*
6-11 Terminal 53 10 V*
High Voltage
6-14 Terminal 53 0 Hz
Low Ref./Feedb.
Value
6-15 Terminal 53 1500 Hz
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
D IN 37 is an option.
MG33AN02 - Rev. 2013-09-06
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.6 Speed Up/Down
S p e e d
R e f e r e n c e
S t a r t ( 1 8 )
F r e e z e r e f ( 2 7 )
S p e e d u p ( 2 9 )
S p e e d d o w n ( 3 2 )
Illustration 6.1 Speed Up/Down
Parameters
Function Setting
5-10 Terminal 18 [8] Start*
Digital Input
5-12 Terminal 27 [19] Freeze
Digital Input Reference
5-13 Terminal 29 [21] Speed
Digital Input Up
5-14 Terminal 32 [22] Speed
Digital Input Down
* = Default Value
Notes/comments:
D IN 37 is an option.
