Phase Locked Loop – PLL
All devices contain a fully internal PLL function which is used to multiply the frequency of the
selected high speed oscillator, either HIRC or HXT. As all PLL functions are internal, no external
components, including those for the loop filter, are required.
The PLL is enabled by the PLLEN bit in the PLLCR register. After being enabled the PLL must
be given a certain amount of time to lock and stabilise. After the PLL is enabled the PLLRDY bit
should be monitored to indicate when the PLL has locked and is ready for use. If the PLL function
is disabled, then the high frequency oscillators can be used directly as the system clock. The PLL
input clock source, from either the HIRC or HXT oscillators, is determined by the PLLSRC bit in
the PLLCR register. The frequency multiplier range has a range of one to eight times, selected by
the PLLM0~PLLM2 bits in the PLLCR register.
Changing the PLL Frequency
After the PLL is enabled and is being used as the system clock, its frequency can be changed
dynamically by the application program, by programming the PLLM0~PLLM2 bits in the PLLCR
register. However the program must execute this operation in a specific way to ensure stable
frequency switching. There are a total of eight different PLL frequency multiplier selections,
however during dynamic PLL frequency changing, the multiplier value should only be changed
one stage at a time. In addition a recommended delay of at least 10 instruction cycles, which can
be implemented by 10 NOP instructions, should be inserted after each frequency multiplier stage
change to allow the PLL to re-lock and stabilise. Note that the PLLRDY bit will remain at a high
level during any dynamic PLL frequency change and cannot be used to indicate PLL stability after
the PLL changes frequency. The accompanying flowchart illustrates this point.

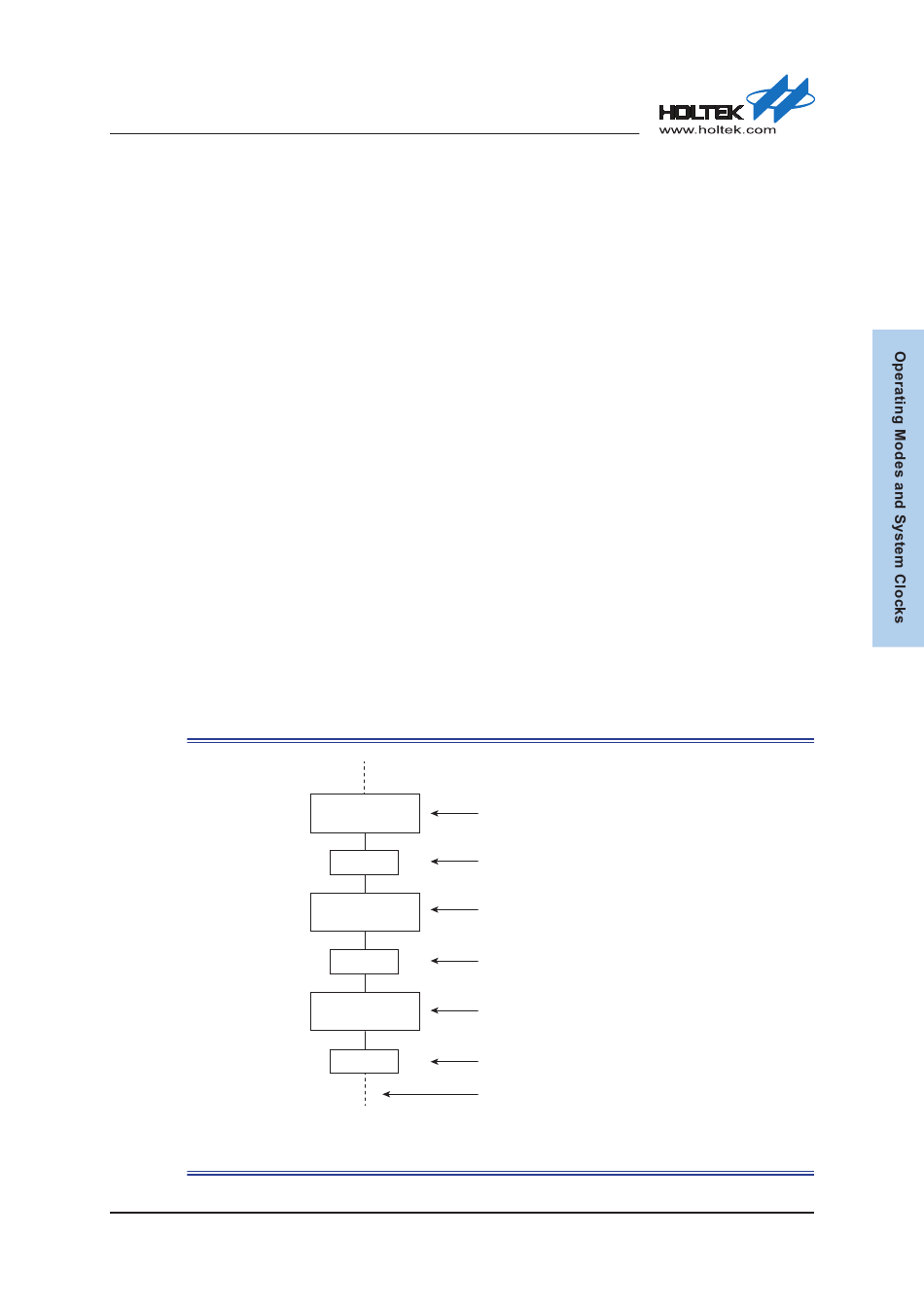

Example: Change the system clock from 8 MHz to 16 MHz
PLL Frequency Changing
Rev. 1.00
PLLCR register
PLLM 2:0 bits=001
NOP × 10
PLLCR register
PLLM 2:0 bits=010
NOP × 10
PLLCR register
PLLM 2:0 bits=011
NOP × 10
Note: 4MHz HXT exte�nal c��stal oscillato�
64 of ���
f =8MHz
SYS
Delay to allow PLL to lock
f =12MHz
SYS
Delay
f =16MHz
SYS
Delay
16MHz system clock now ready for use
