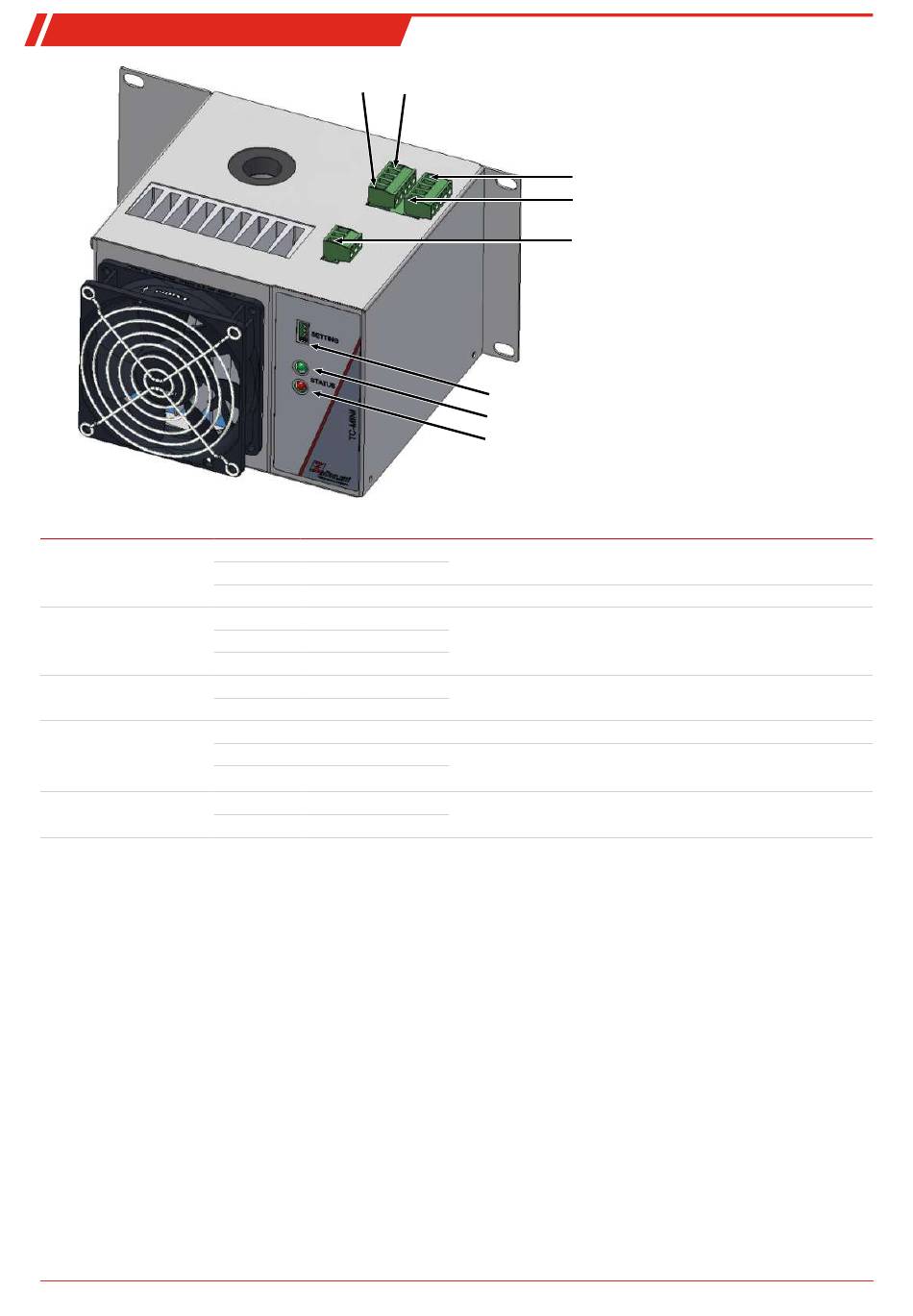

TC-MINI
Inlets/Outputs
Moisture detector
Status
24 V input
Analogue output
24 V output *
* Add-on units, e.g. a pump, with 24 V supply can be connected to the outlet, switched via the status output. The 24 V supply
must then be configured appropriately (see data sheet).
8 Bühler Technologies GmbH
X2.1
Terminal Function
X1.1 FF.1 (white)
X1.2 FF.2 (brown)
X1.3 PE
X2.1 Status NC (Alarm)
X2.2 Status COM
X2.3 Status NO (ok)
X2.4 24 V DC -
X2.5 24 V DC +
X2.6 PE
X2.7 mA +
X2.8 mA -
X2.9 24 V DC -
X2.10 24 V DC +
X2.5
DIP Switch / Settings
LED green
LED red
Description
Moisture detector
Shield for moisture detector inlet
Alarm / Status
Changeover contact, potential-free,
max. 250 V AC, 1 A
Power supply
Shield for analogue output
Analogue output
4...20 mA, 0 - 80 °C
Supply for optional add-on units
max. 1 A
X2.10
X2.6
X1.1
